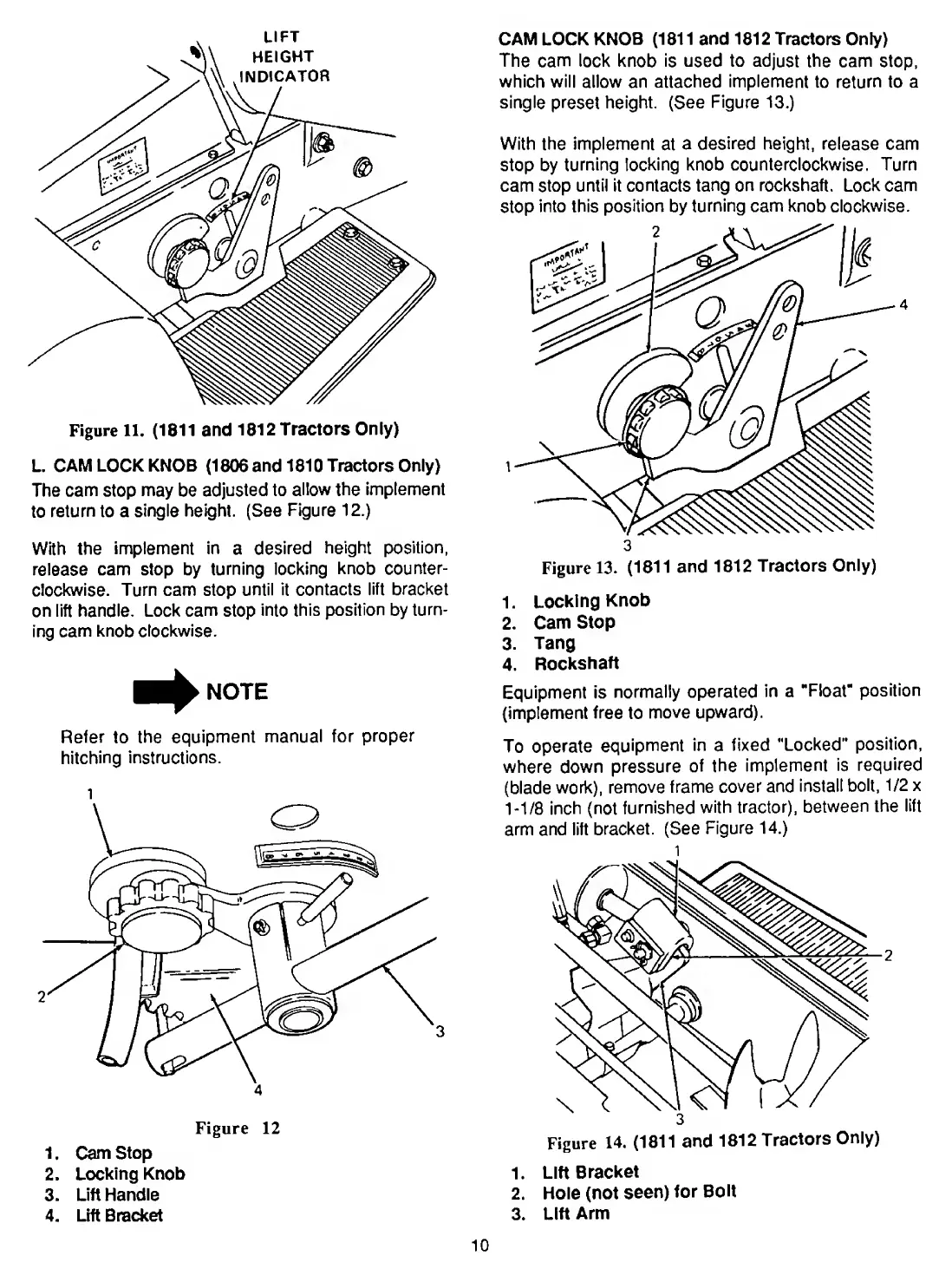

Figure 11. (1811 and 1812 Tractors Only)
L. CAM LOCK KNOB (1806 and 1810 Tractors Only)
The cam stop may be adjusted to allow the implement
to return to a single height. (See Figure 12.)
With the Implement in a desired height position,
release cam stop by turning locking knob counter¬
clockwise. Turn cam stop until it contacts lift bracket
on lift handle. Lock cam stop into this position by turn¬
ing cam knob clockwise.
■ ^NOTE
Refer to the equipment manual for proper
hitching instructions.
1
4
Figure 12
1. Cam Stop
2. Locking Knob
3. Lift Handle
4. Lift Bracket
CAM LOCK KNOB (1811 and 1812 Tractors Only)
The cam lock knob is used to adjust the cam stop,
which will allow an attached implement to return to a
single preset height. (See Figure 13.)
With the implement at a desired height, release cam
stop by turning locking knob counterclockwise. Turn
cam stop until It contacts tang on rocks haft. Lock cam
stop into this position by turning cam knob clockwise.
3
Figure 13. (1811 and 1812 Tractors Only)
1. Locking Knob
2. Cam Stop
3. Tang
4. Rockshaft
Equipment is normally operated in a "Float" position
(implement free to move upward).
To operate equipment in a fixed "Locked" position,
where down pressure of the implement is required
(blade work), remove frame cover and install bolt, 1/2 x
1-1/8 inch (not furnished with tractor), between the lift
arm and lift bracket. (See Figure 14.)
1
Figure 14. (1811 and 1812 Tractors Only)
1. Lift Bracket
2. Hole (not seen) for Bolt
3. Lift Arm
10

Cub Cadet 1811 Specifications

General

Drive	2WD
Steering	Manual
Transmission	Hydrostatic
Brakes	Mechanical
Front Tire Size	16x6.50-8
Rear Tire Size	23x10.50-12
Cutting Height	1-4 inches
