Cub Cadet 1811 User Manual

3

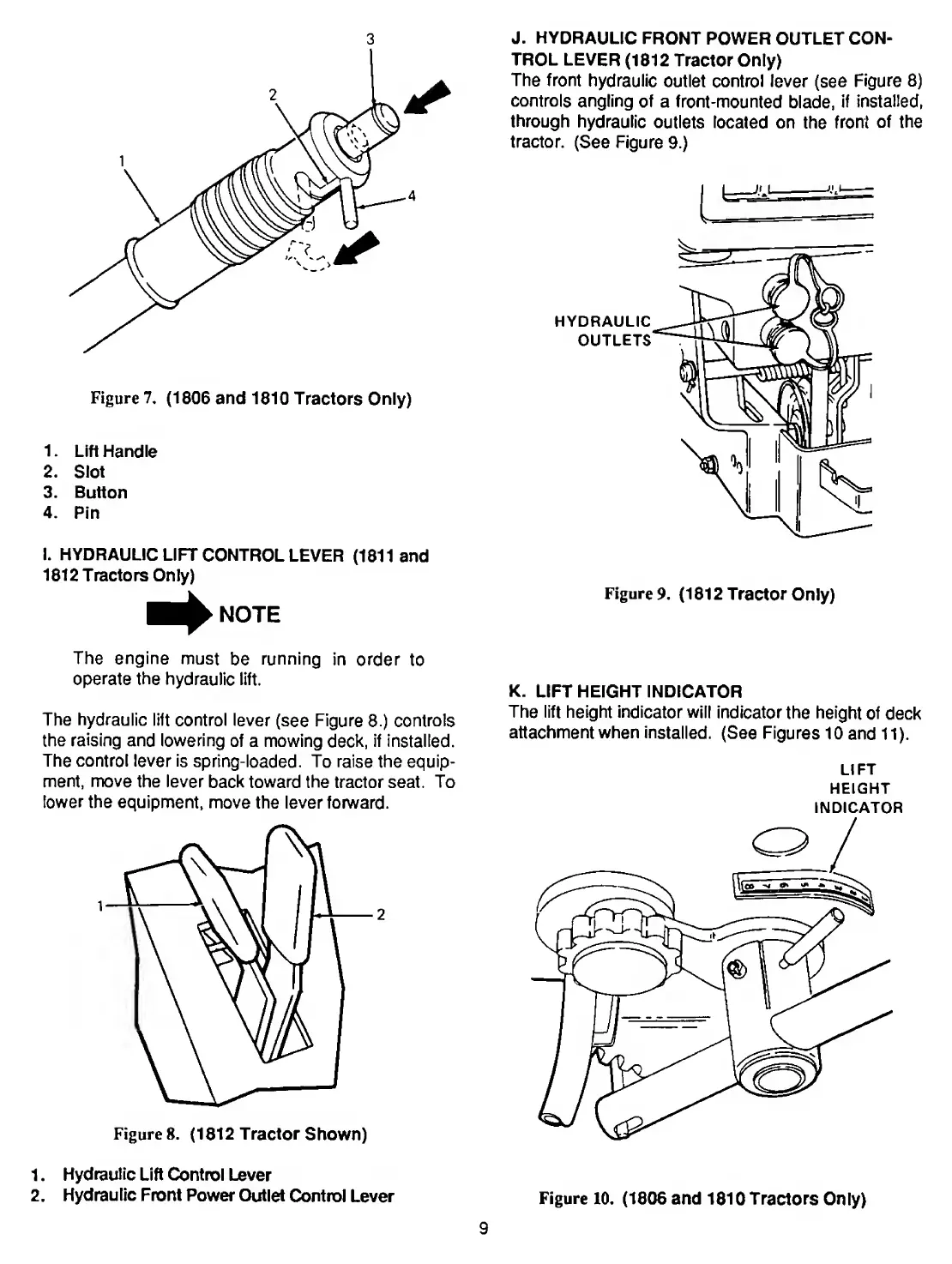

Figure 7. (1806 and 1810 Tractors Only)
1. Lift Handle
2. Slot
3. Button
4. Pin
I. HYDRAULIC LIFT CONTROL LEVER (1811 and
1812 Tractors Only)
■ ^NOTE
The engine must be running in order to
operate the hydraulic lift.
The hydraulic lift control lever (see Figure 8.) controls
the raising and lowering of a mowing deck, if installed.
The control lever is spring-loaded. To raise the equip¬
ment, move the lever back toward the tractor seat. To
lower the equipment, move the lever forward.
J. H YDRAULIC FRONT POWER OUTLET CON¬
TROL LEVER (1812 Tractor Only)
The front hydraulic outlet control lever (see Figure 8)
controls angling of a front-mounted blade, if installed,
through hydraulic outlets located on the front of the
tractor. (See Figure 9.)
Figure 9. (1812 Tractor Only)
K. L IFT HEIGHT INDICATOR
The lift height indicator will indicator the height of deck
attachment when installed. (See Figures 10 and 11).
LIFT
HEIGHT
INDICATOR
1. Hydraulic Lift Control Lever
2. Hydraulic Front Power Outlet Control Lever Figure 10. (1806 and 1810 Tractors Only)
9

Cub Cadet 1811 Specifications

General

Drive	2WD
Steering	Manual
Transmission	Hydrostatic
Brakes	Mechanical
Front Tire Size	16x6.50-8
Rear Tire Size	23x10.50-12
Cutting Height	1-4 inches
