Cub Cadet 1811 User Manual

4
1. Clutch Release Lever
2. Safety Starting Switch
3. Clutch Release Rod
4. Adjusting Nut
Figure 24
1. Single Brake Pedal
2. Brake Pedal Lock
3. 1/2 Inch Thick Wood Block

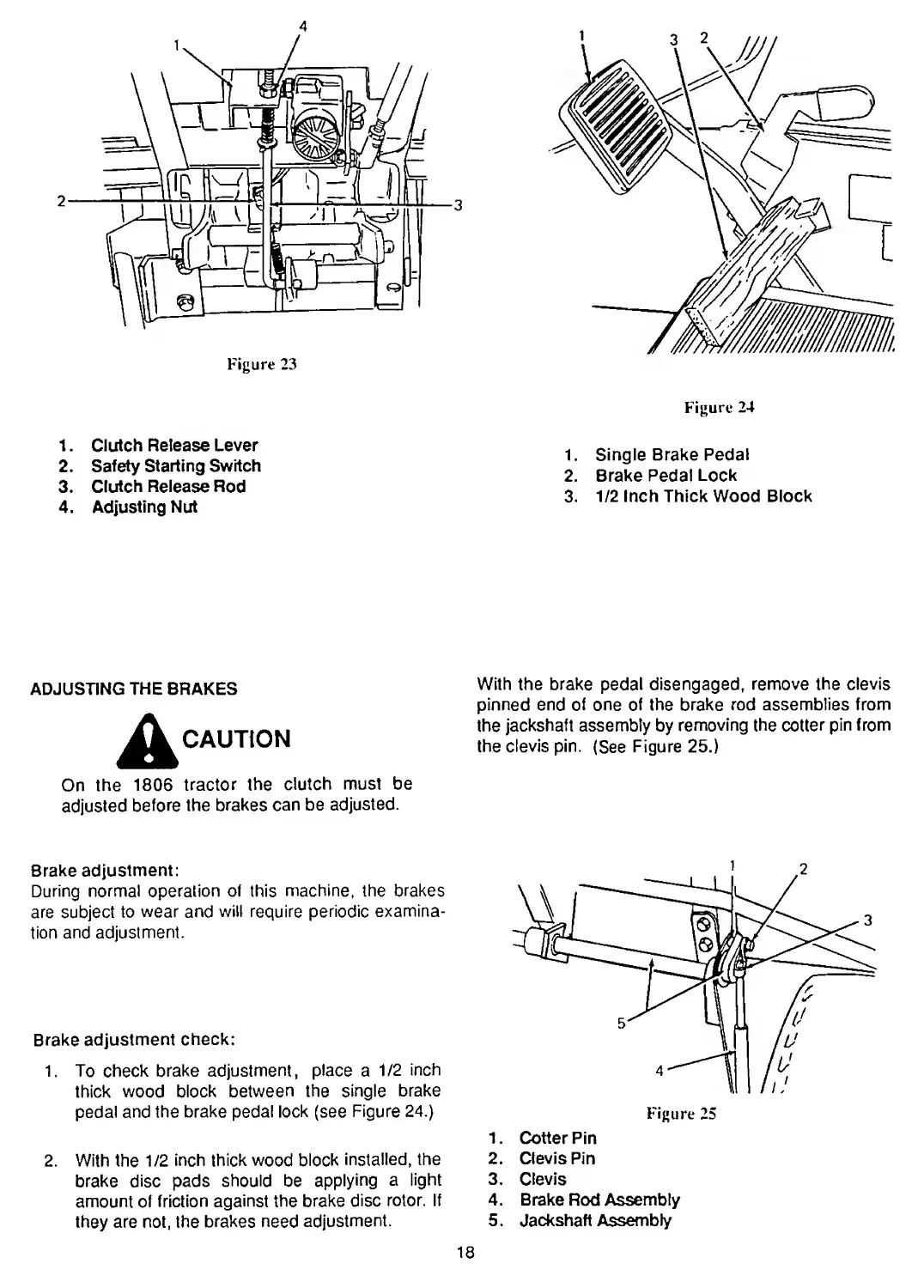

ADJUSTING THE BRAKES
A CAUTION
On the 1806 tractor the clutch must be
adjusted before the brakes can be adjusted.
With the brake pedal disengaged, remove the clevis
pinned end of one of the brake rod assemblies from
the jackshaft assembly by removing the cotter pin from
the clevis pin. (See Figure 25.)
Brake adjustment:
During normal operation of this machine, the brakes
are subject to wear and will require periodic examina¬
tion and adjustment.
Brake adjustment check:
1. To check brake adjustment, place a 1/2 inch
thick wood block between the single brake
pedal and the brake pedal lock (see Figure 24.)
2. With the 1/2 inch thick wood block installed, the
brake disc pads should be applying a light
amount of friction against the brake disc rotor. If
they are not, the brakes need adjustment.
Figure 25
1. Cotter Pin
2. Clevis Pin
3. Clevis
4. Brake Rod Assembly
5. Jackshaft Assembly
18

Cub Cadet 1811 Specifications

General

Drive	2WD
Steering	Manual
Transmission	Hydrostatic
Brakes	Mechanical
Front Tire Size	16x6.50-8
Rear Tire Size	23x10.50-12
Cutting Height	1-4 inches
