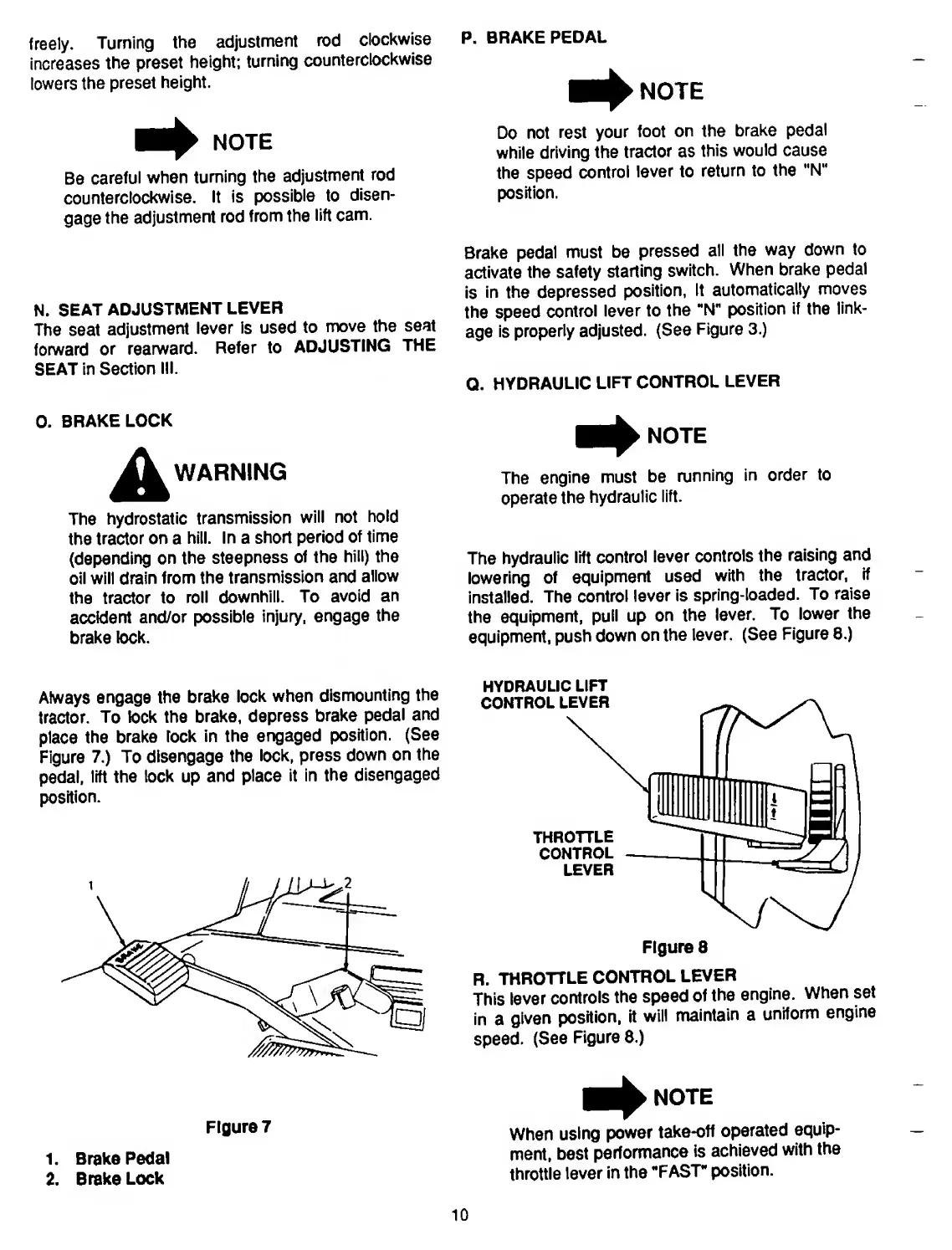

freely.
Turning
the
adjustment
rod
clockwise
increases
the
preset
height;
turning
counterclockwise
lowers
the
preset
height.
NOTE
Be
careful
when
turning
the
adjustment
rod
counterclockwise.
It
is
possible
to
disen¬
gage
the
adjustment
rod
from
the
lift
cam.
N.
S
E
AT
ADJUSTMENT
LEVER
The
seat
adjustment
lever
is
used
to
move
the
seat
forward
or
rearward.
Refer
to
ADJUSTING
THE
SEAT
in
Section
III.
0.
B
R
AKE
LOCK
A
WARNING
The
hydrostatic
transmission
will
not
hold
the
tractor
on
a
hill.
In
a
short
period
of
time
(depending
on
the
steepness
of
the
hill)
the
oil
will
drain
from
the
transmission
and
allow
the
tractor
to
roll
downhill.
To
avoid
an
accident
and/or
possible
injury,
engage
the
brake
lock.
Always
engage
the
brake
lock
when
dismounting
the
tractor.
To
lock
the
brake,
depress
brake
pedal
and
place
the
brake
lock
in
the
engaged
position.
(See
Figure
7.)
To
disengage
the
lock,
press
down
on
the
pedal,
lift
the
lock
up
and
place
it
in
the
disengaged
position.
Figure
7
1.
Brake
Pedal
2.
Brake
Lock
P.
B
R
A
KE
PEDAL
1^
NOTE
Do
not
rest
your
foot
on
the
brake
pedal
while
driving
the
tractor
as
this
would
cause
the
speed
control
lever
to
return
to
the
"N"
position.
Brake
pedal
must
be
pressed
all
the
way
down
to
activate
the
safety
starting
switch.
When
brake
pedal
is
in
the
depressed
position,
It
automatically
moves
the
speed
control
lever
to
the
"N"
position
if
the
link¬
age
is
properly
adjusted.
(See
Figure
3.)
Q.
H
Y
DRAULIC
LIFT
CONTROL
LEVER
NOTE
The
engine
must
be
running
in
order
to
operate
the
hydraulic
lift.
The
hydraulic
lift
control
lever
controls
the
raising
and
lowering
of
equipment
used
with
the
tractor,
If
installed.
The
control
lever
is
spring-loaded.
To
raise
the
equipment,
pull
up
on
the
lever.
To
lower
the
equipment,
push
down
on
the
lever.
(See
Figure
8.)
HYDRAULIC
LIFT
R.
T
HROTTLE
CONTROL
LEVER
This
lever
controls
the
speed
of
the
engine.
When
set
in
a
given
position,
it
will
maintain
a
uniform
engine
speed.
(See
Figure
8.)
^NOTE
When
using
power
take-off
operated
equip¬
ment,
best
performance
is
achieved
with
the
throttle
lever
in
the
"FAST"
position.
10
