13se c t i O n 5— in s t a l l a t i O n & re M O v a l
NOTE: Use the 754-0441 (D, Fig. 3-1) PTO belt for single
cylinder engines ONLY. Use the 754-3075 (E , Fig. 3-1) belt
for twin cylinder engines ONLY.
Install the appropriate PTO belt (D or E) on the PTO clutch 8.
pulley on the front of the engine by passing the belt
upward inside the front of the tractor frame. Make certain
the narrow side of the PTO belt engages the groove of the
clutch pulley. See Figure 5-6.
Twist the PTO belt 1/4 turn inward to engage the narrow 9.
sides of the belt in the grooves of the tractor’s two front
idler pulleys. Refer to Figure 5-6.
Routing the PTO belt rearward under the tractor frame, 10.
install the narrow side of the belt in the V-pulley on the
snow thrower gearbox. See Figure 5-7. Make certain there is
no more than a 1/4 inward twist in both runs of the belt.
While manipulating the lift handle to keep the channel 5.
brackets parallel to the tractor frame, lift upward on
the front lift shaft and slide the snow thrower assembly
rearward until the channel brackets are fully inserted into
the frame channels. Secure the assembly to both sides of
the frame using the hex cap screws (9, Fig. 3-2) and bell
washers (15, Fig. 3-2). See Figure 5-4.
Tractors with 15” front tires ONLY. 6. Align the gearbox
mounting bracket with the subframe arms and reinstall the
front hex cap screws and flange lock nuts. Tighten the rear
fasteners. See Figure 5-5.
IMPORTANT: Series 2500 Tractors Mfg. Date K015 and After.
To open the tractor hood, the snow thrower must be lowered to the
ground and the discharge chute rotated to the straight forward
position.
Raise the tractor hood. Refer to the tractor Operator’s 7.
Manual.
BELL WASHER
HEX CAP
SCREW
CHANNEL BRACKETS
FULLY INSERTED
SUBFRAME ARM
GEARBOX
MOUNTING
BRACKEY
REINSTALL
FRONT FASTENERS
TIGHTEN REAR
FASTENERS
FRONT IDLER PULLEYS
PTO CLUTCH
PTO BELT

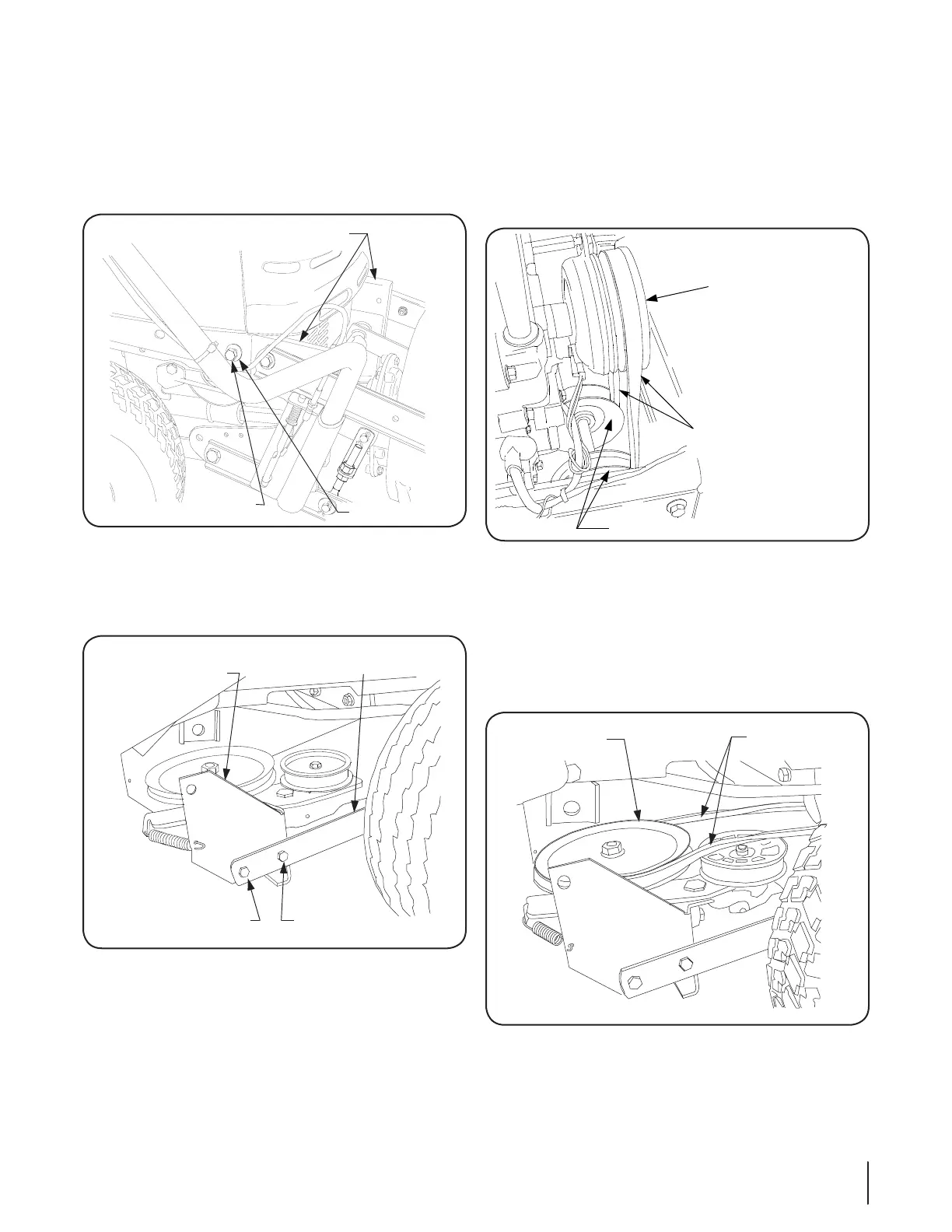

Figure 5-4
Figure 5-5
Figure 5-6
Figure 5-7
