Assembly
And
Operation
NOTE:
References to left,
right, front and rear
of the tractor are
from the operator’s
position, unless
otherwise stated.
IMPORTANT:
There are two holes in
the clevis pin. Be sure
to insert the hairpin
clip in the upper hole
to properly secure the
bracket assembly to
the hitch plate.
Figure 2-2
Figure 2-4
Figure 2-3
Assembly & Operation
NOTE: References to left, right, front and rear of the
tractor are from the operator’s position, unless otherwise
stated.
• Before assembly, place the tractor on a firm, level
surface, disengage the PTO, stop the tractor engine
and set the parking brake.
• For convenience, pivot the seat forward and leave
it in that position until the grass collector is fully
mounted and assembled.

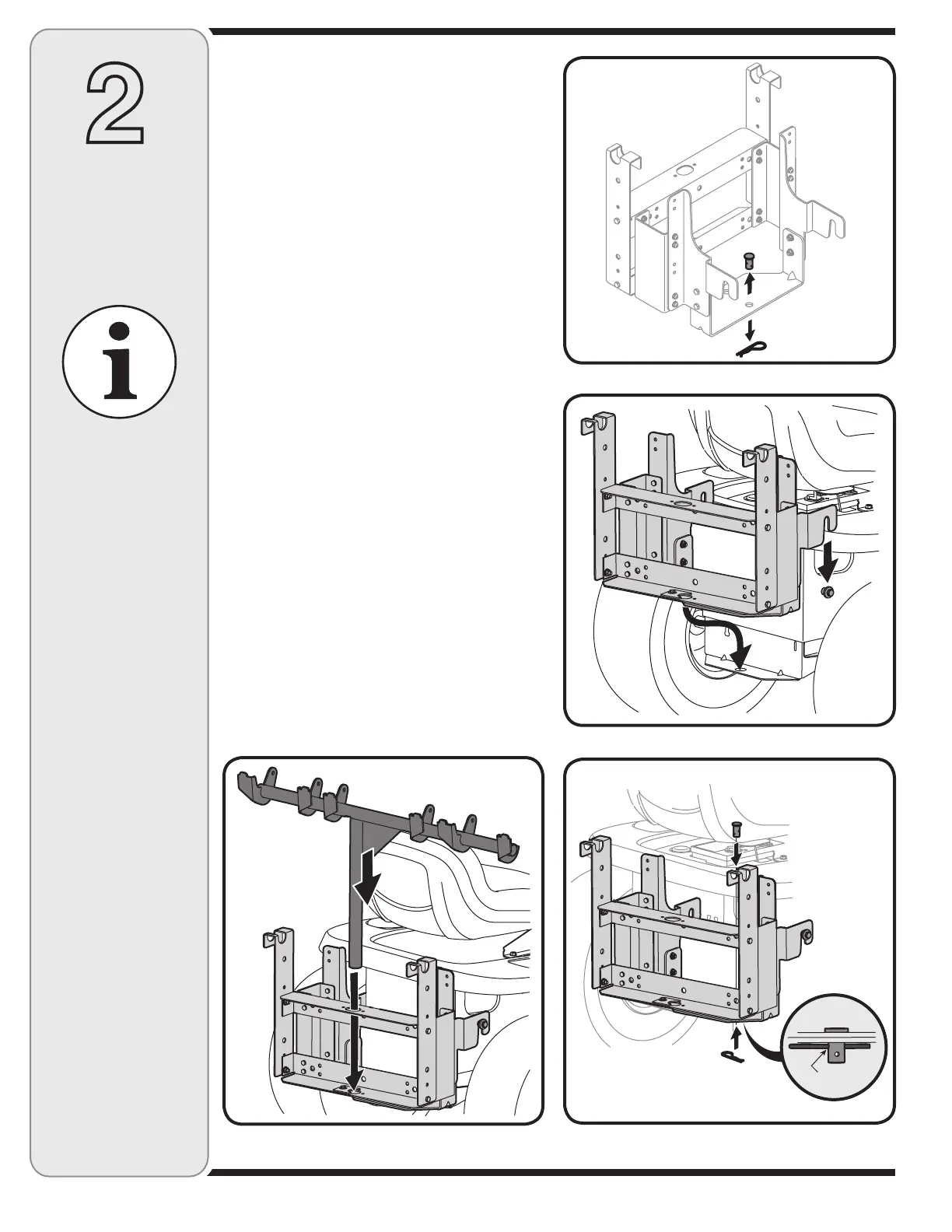

Mounting Bracket Assembly
• Remove the hairpin clip and clevis pin from the rear
of the mounting bracket assembly. See Figure 2-1.
• Position the hooked ends of the bracket assembly to
the outside of the hitch plate and over the shoulder
bolts. See Figure 2-2.
• Reinsert the clevis pin through the aligned holes
in both the bracket assembly and the hitch plate.
Secure with the hairpin clip. See Figure 2-3.
IMPORTANT: There are two holes in the clevis pin.
Be sure to insert the hairpin clip in the upper hole to
properly secure the bracket assembly to the hitch plate.
Attaching Grass Catcher Cover
and Grass Bags
• Place the grass catcher cover assembly’s support
tube in position on the rear of unit by sliding the
support tube down through the center hole in the
mounting bracket assembly. See Figure 2-4.
• Lift the grass catcher cover and attach the grass
bags using the slots shown in Figure 2-5. Close the
grass catcher cover.
NOTE: Cover not shown for clarity.
Figure 2-1
upper hole
