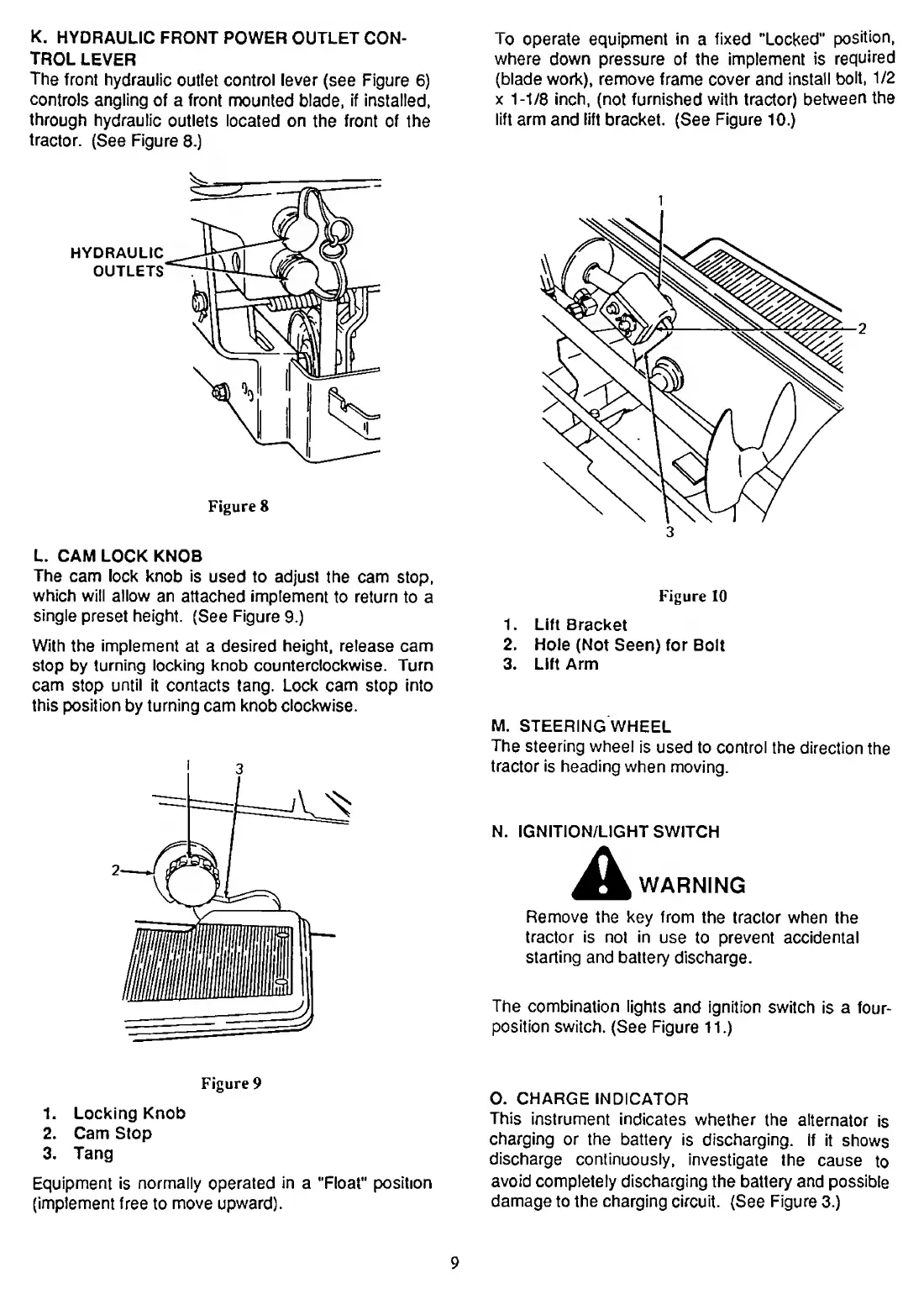

K. H YDRAULIC FRONT POWER OUTLET CON¬
TROL LEVER
The front hydraulic outlet control lever (see Figure 6 )
controls angling of a front mounted blade, if installed,
through hydraulic outlets located on the front of the
tractor. (See Figure 8 .)
Figure 8
L. C AM LOCK KNOB
The cam lock knob is used to adjust the cam stop,
which will allow an attached implement to return to a
single preset height. (See Figure 9.)
With the implement at a desired height, release cam
stop by turning locking knob counterclockwise. Turn
cam stop until it contacts tang. Lock cam stop into
this position by turning cam knob clockwise.
-
^ 1
To operate equipment in a fixed "Locked" position,
where down pressure of the implement is required
(blade work), remove frame cover and install bolt, 1/2
X 1-1/8 inch, (not furnished with tractor) between the
lift arm and lift bracket. (See Figure 10.)
1
Figure 10
1. Lift Bracket
2. Hole (Not Seen) for Bolt
3. Lift Arm
M. S TEERING WHEEL
The steering wheel is used to control the direction the
tractor is heading when moving.
N. I GNITION/LIGHT SWITCH
A WARNING
Remove the key from the tractor when the
tractor is not in use to prevent accidental
starting and battery discharge.
The combination lights and ignition switch is a four-
position switch. (See Figure 11 . )
Figure 9
1. Locking Knob
2. Cam Stop
3. Tang
Equipment is normally operated in a "Float" position
(implement free to move upward).
O. C HARGE INDICATOR
This instrument indicates whether the alternator is
charging or the battery is discharging. If it shows
discharge continuously, investigate the cause to
avoid completely discharging the battery and possible
damage to the charging circuit. (See Figure 3.)
9
