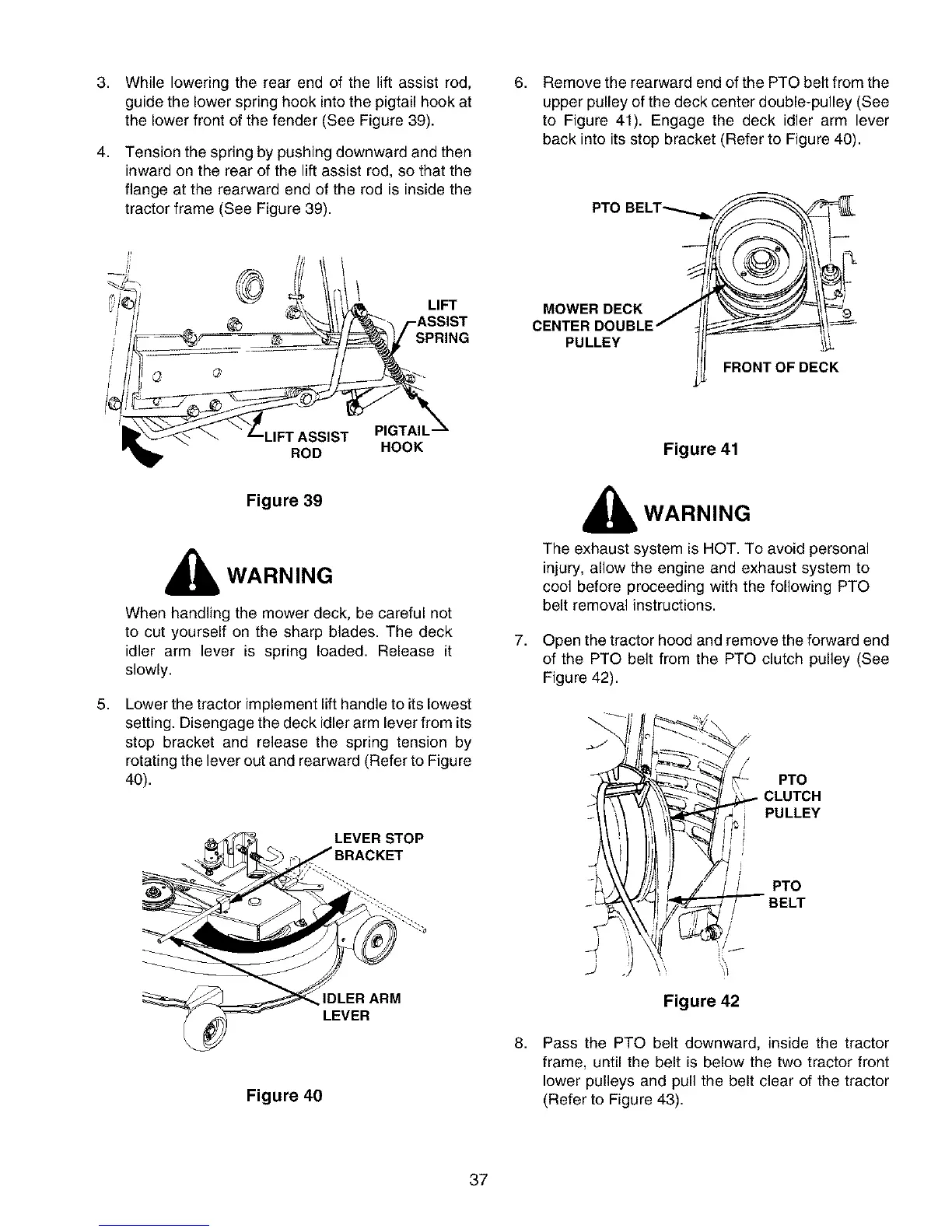

4,
While lowering the rear end of the lift assist rod,
guide the lower spring hook into the pigtail hook at
the lower front of the fender (See Figure 39).
Tension the spring by pushing downward and then
inward on the rear of the lift assist rod, so that the
flange at the rearward end of the rod is inside the
tractor frame (See Figure 39).
, Remove the rearward end of the PTO belt from the
upper pulley of the deck center double-pulley (See
to Figure 41). Engage the deck idler arm lever
back into itsstop bracket (Refer to Figure 40).
PTC
Figure 39
5,
WARNING
When handling the mower deck, be careful not
to cut yourself on the sharp blades. The deck
idler arm lever is spring loaded. Release it
slowly.
Lower the tractor implement lift handle to its lowest
setting. Disengage the deck idler arm lever from its
stop bracket and release the spring tension by
rotating the lever out and rearward (Refer to Figure
4O).
LEVER STOP
IDLER ARM
LEVER
Figure 40
CENTER DOL
PULLEY
FRONTOFDECK
7,
Figure 41
WARNING
The exhaust system is HOT. To avoid personal
injury, allow the engine and exhaust system to
cool before proceeding with the following PTO
belt removal instructions.
Open the tractor hood and remove the forward end
of the PTO belt from the PTO clutch pulley (See
Figure 42).
,
PTO
CLUTCH
PULLEY
PTO
/ BELT
/
Figure 42
Pass the PTO belt downward, inside the tractor
frame, until the belt is below the two tractor front
lower pulleys and pull the belt clear of the tractor
(Refer to Figure 43).
37
