8 se c t i O n 3— as s e M b l y & se t -up
Align the holes in the chute base with the holes in the 3.
lower chute and secure with the previously removed hex
washer screws. See Fig. 3-5.
Installing the Recoil Starter Handle
Remove the eye bolt and handle knob from the manual 1.
bag.
Place the eye bolt and handle knob on the upper handle as 2.
shown in Fig. 3-6. Do not fully tighten the hardware until
instructed to do so.
NOTE: The opening of the eye bolt should face toward the
back of the snow thrower.
Slowly pull the recoil starter handle up towards the eye 3.
bolt.
Slip the recoil starter rope into the eye bolt from the back 4.
side of the snow thrower. See Fig. 3-6.
Securely tighten the eye bolt and handle knob.5.
Installing the Chute

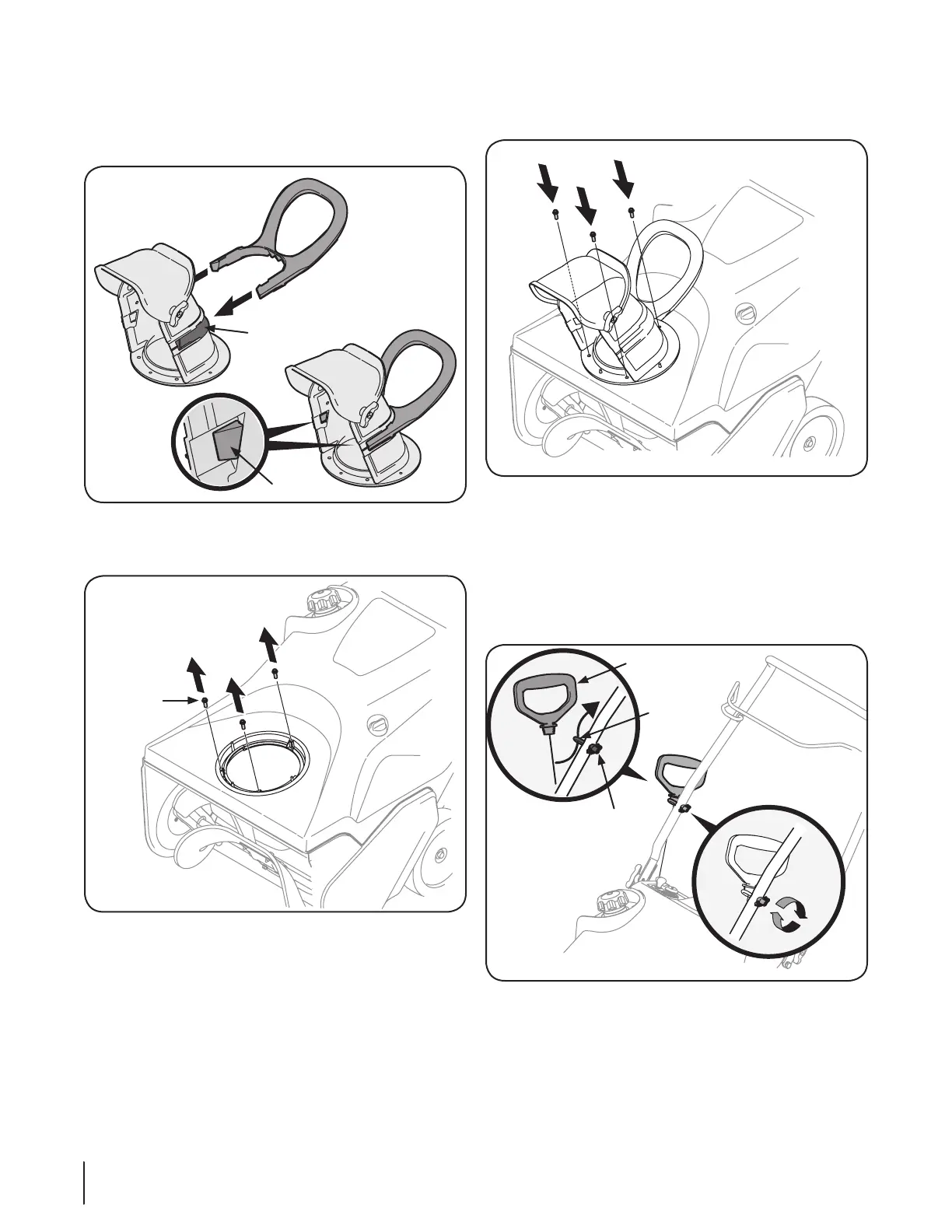

Place the chute handle on the lower chute as shown in Fig. 1.
3-3. Be certain that the handle is aligned in the channel on
the chute and the tabs snap into place.
Remove the hex washer screws in the chute base. See Fig. 2.
3-4.
Figure 3-4
Figure 3-5
Figure 3-3
Eye Bolt
Handle
Knob
Recoil Starter Handle
Figure 3-6
To Next Page
