Assembly & Set-Up
3
7
Contents of Carton
One Snow Thrower• One Chute Assembly• Two Ignition Keys•
One 3-Prong Extension Cord• One 20 oz. Bottle 5W-30 Oil• One Snow Thrower Operator’s Manual•
One Engine Operator’s Manual•
NOTE: All references to the left or right side of the snow thrower
are from the operator’s position. Any exceptions will be noted.
Unpacking the Snow Thrower
Open the top of the carton.1.
Cut down the corners on the front of the carton and fold 2.
down the front side.
Pull the snow thrower out of the carton. Be sure not to 3.
damage the chute, or any cables attached to the chute. The
chute is shipped under the shroud on the back side of the
carton. Check for any cable ties securing the chute and
remove if necessary.
Set-Up
Adding Fuel & Oil
Refer to the Engine Operator’s Manual packed with your snow
thrower for information on adding fuel and oil.
Assembly

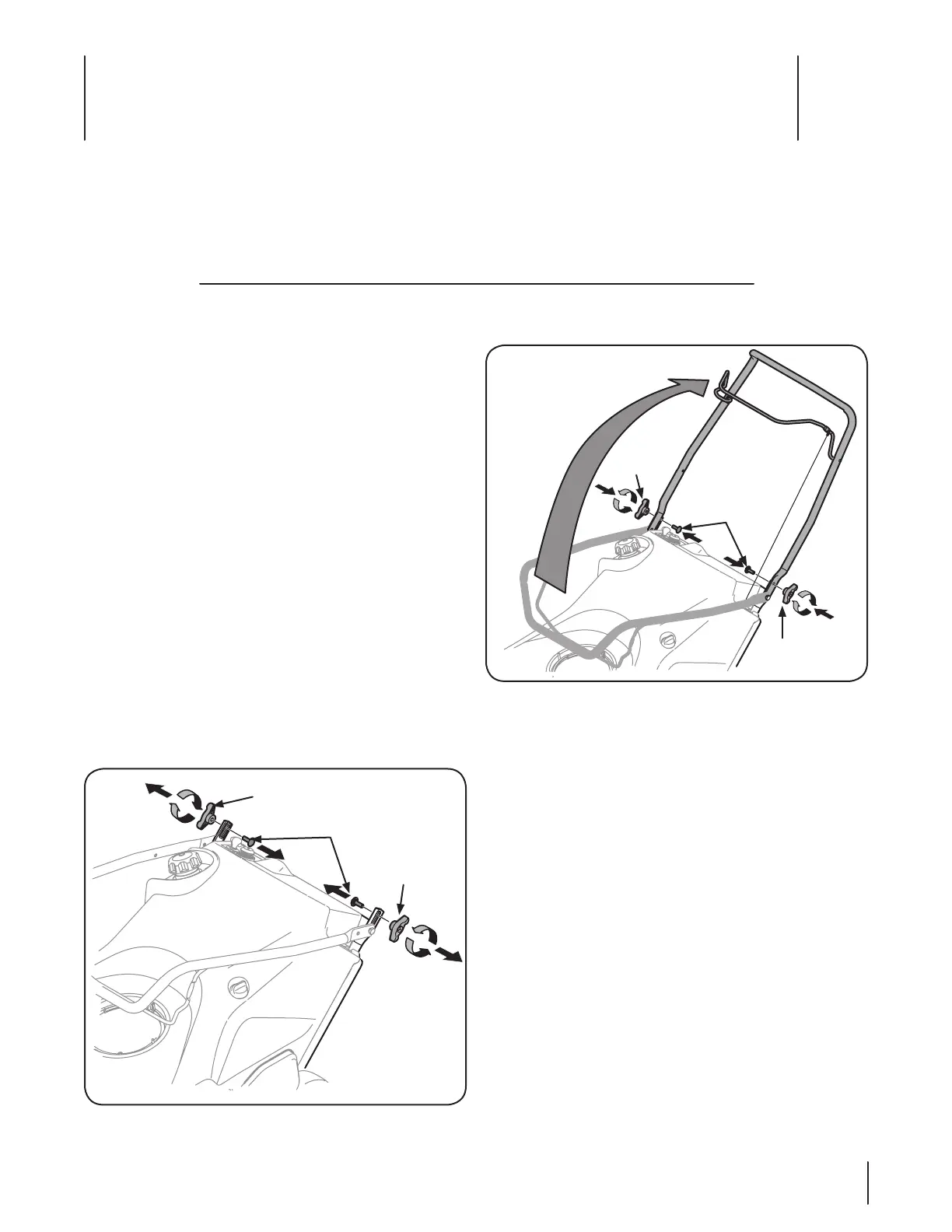

Positioning the Upper Handle
Remove the wing knob and carriage bolt from the top of 1.
the lower handle. See Fig. 3-1. It is not necessary to remove
the shoulder screw and flange lock nut below the wing
knob and carriage bolt.
Pivot the upper handle into the operating position. Be sure 2.
not to pinch any of the cables in the process. See Fig. 3-2.
Tighten the previously removed hardware to secure the 3.
handle in place. See Fig. 3-2.
Wing Knobs
Wing Knobs
Carriage Bolts
Figure 3-1
Wing
Knobs
Wing
Knobs
Carriage Bolts
Figure 3-2
