Slide the hex shaft through the right side of the •
housing and through the friction wheel assembly.
Insert the hex shaft through the sprocket and the •
spacer. Make certain that the chain engages both the
large and the small sprocket.
NOTE: If the sprocket fell from the snowthrower while
removing the hex shaft, align sprocket on chain, place
the sprocket on the hex shaft. Position the hex hub of
the sprocket toward the friction wheel when sliding the
sprocket on to the hex shaft.

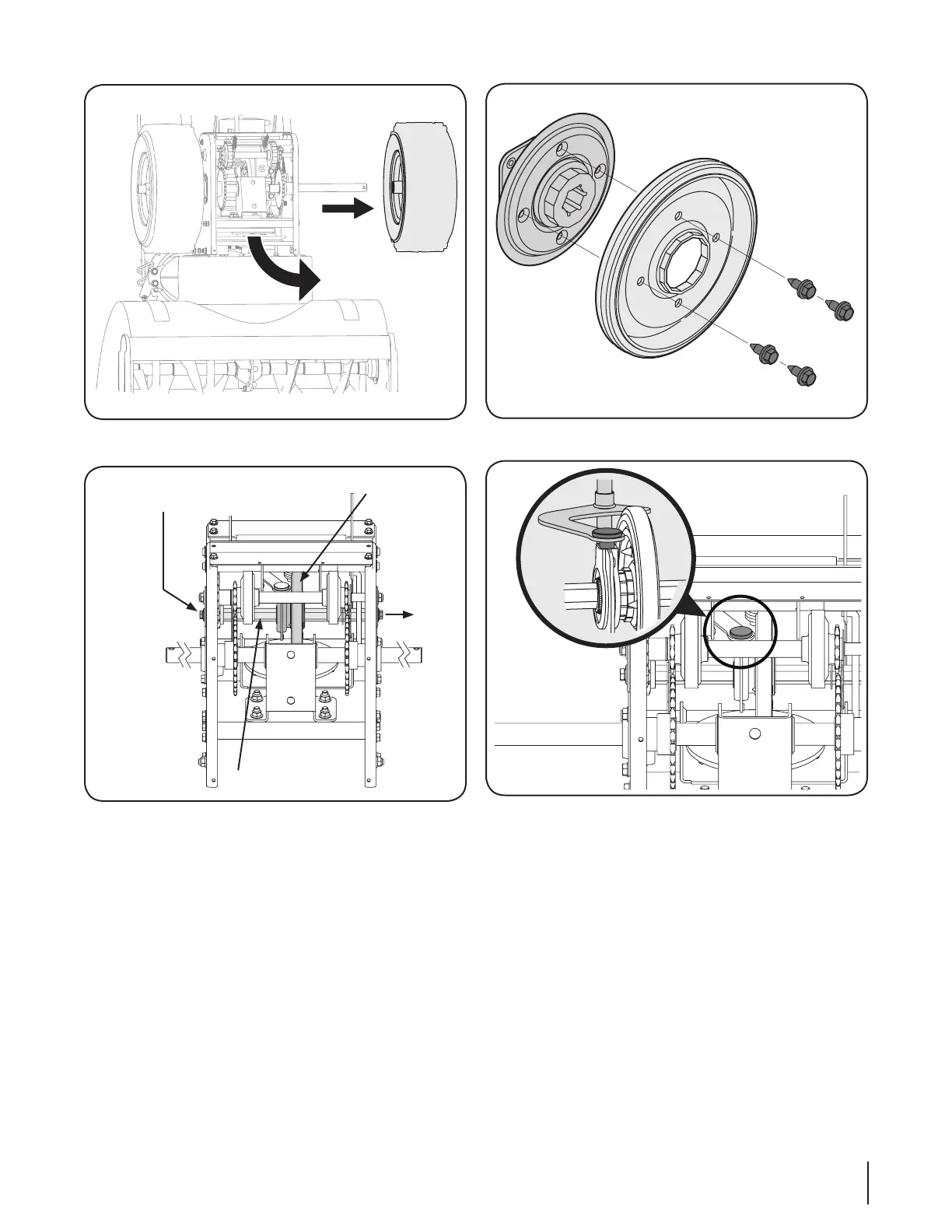

Figure 7-10
Slide the bearing onto the left end of the hex shaft and •
press into the hole on the left side the frame.
While holding the hex shaft with the wrench secure with •
the cupped washer and hex bolt removed earlier.
Secure the frame cover with self-tapping screws. Put the •
snowthrower down to its normal operating position.
Figure 7-12
Figure 7-13
Figure 7-11
Friction Wheel Assembly
Hex Shaft
Remove Hex Screw &
Belleville Washer
Slide Hex
Shaft Out
Right Side
21Se c t i o N 7 — Se r v i c e
