11Section 3 — ASSembly & Set-Up
NOTE: Make certain the cables are seated properly in the
roller guides. See Figure 3-13.

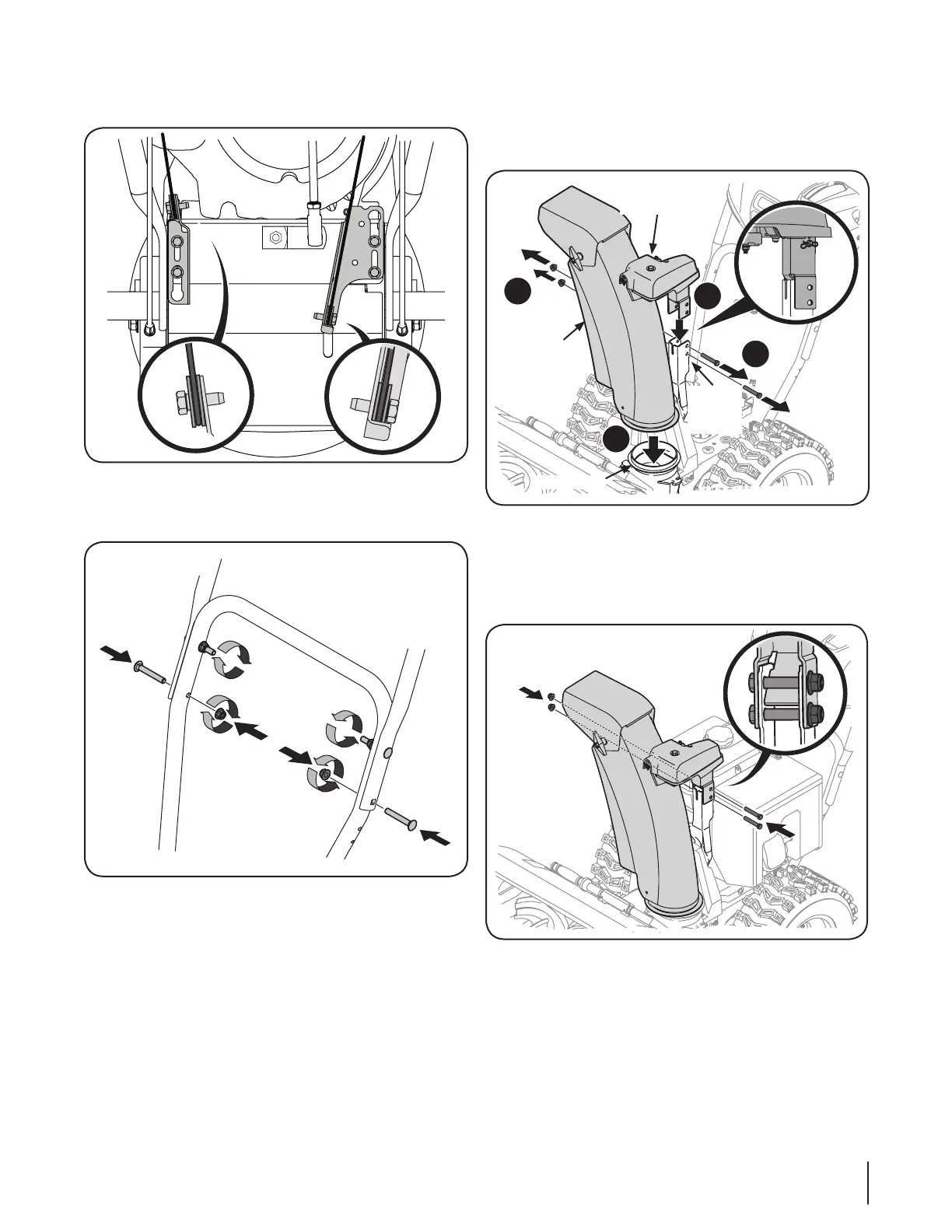

Figure 3-13
5. Reattach the two carriage screws and lock nuts removed
earlier as shown in Figure 3-14.
Figure 3-14
6. Finish securing the handle by tightening the top two lock
nuts loosened earlier. Remove and discard any remaining
rubber bands, if present. They are for packaging purposes
only.
Chute Assembly
1. Remove the lock nuts and hex screws from chute support
bracket. Position the chute assembly over the chute base.
See Figure 3-15.
1
1
2
2
Chute
Assembly
Chute Base
Chute
Support
Bracket
Chute Control
Head
Figure 3-15
2. Place chute assembly onto chute base.
3. Secure chute control head to chute support bracket with
the lock nuts and hex screws removed earlier. See Figure
3-16.
Figure 3-16
To Next Page
