MOUNTING & DISMOUNTING LOADElff
n
I

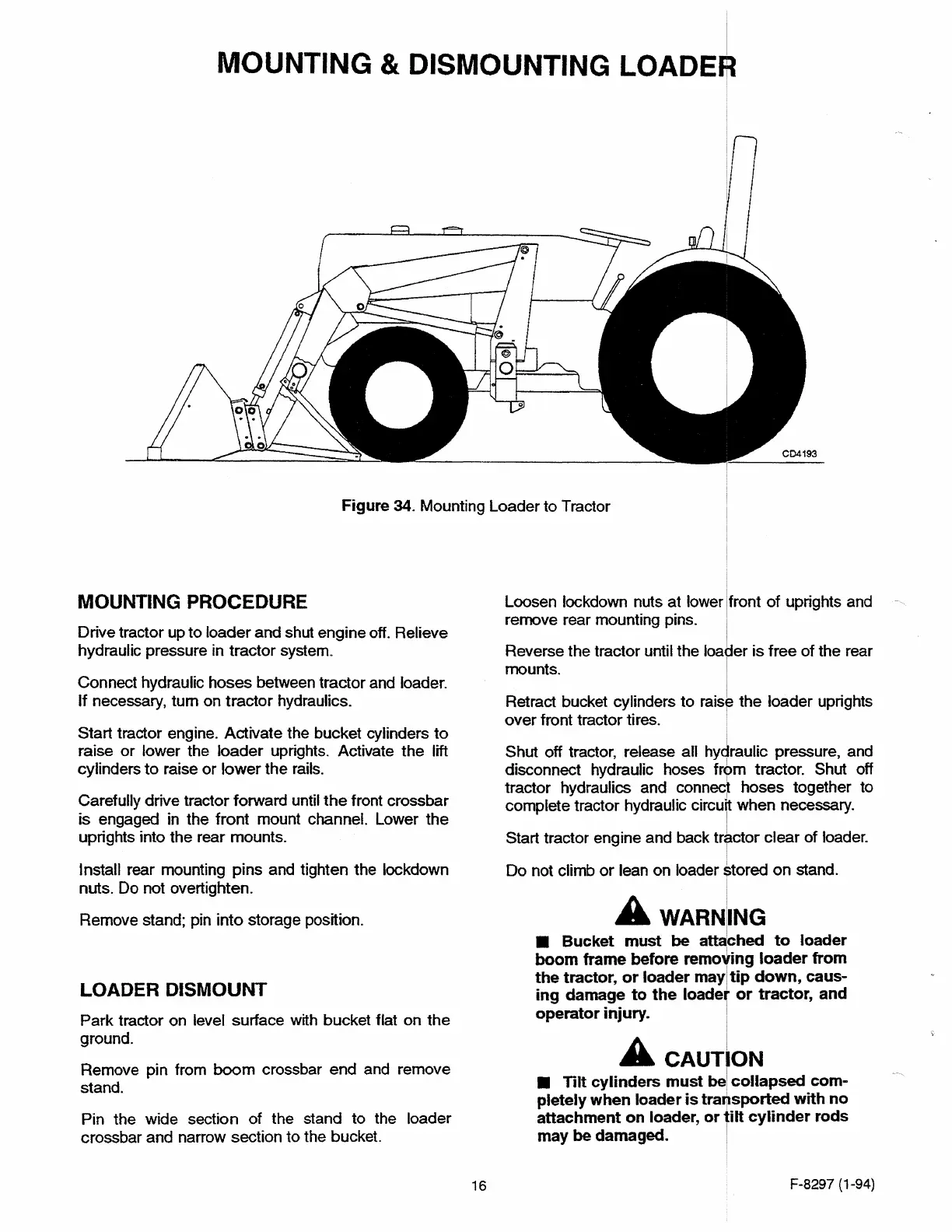

Figure 34. Mounting Loader to Tractor
MOUNTING PROCEDURE
Drive tractor
up
to loader and shut engine off. Relieve
hydraulic pressure in tractor system.
Connect hydraulic hoses between tractor
and
loader.
If necessary, tum on tractor hydraulics.
Start tractor engine. Activate the bucket cylinders
to
raise or lower the loader uprights. Activate the lift
cylinders
to
raise or lower the
rails.
Carefully drive tractor forward until the front crossbar
is engaged
in
the front mount channel. Lower the
uprights into the rear mounts.
Install rear mounting pins and tighten the lockdown
nuts. Do not overtighten.
Remove stand; pin into storage position.
LOADER DISMOUNT
Park tractor on level surface with bucket flat on the
ground.
Remove pin from boom crossbar end and remove
stand.
Pin the wide section of the stand to the loader
crossbar and narrow section to the bucket.
16
Loosen lockdown nuts at lower front
of
uprights and
remove rear mounting pins.
Reverse the tractor until the loarer is free of the rear
mounts. .
Retract bucket cylinders to rais~ the loader uprights
over front tractor tires. ·
I
Shut off tractor, release all hydraulic pressure,
and
I
disconnect hydraulic hoses from tractor. Shut off
tractor hydraulics and
connec~
hoses together to
complete tractor hydraulic circuit when necessary.
Start tractor engine and back
trlctor
clear of loader.
I
Do not climb or lean on loader !tored on stand.
AwARNl1NG
■
Bucket must be attJched
to
loader
boom
frame
before
remoying
loader
from
the tractor,
or
loader mayl tip down, caus-
ing damage to the loader
or
tractor, and
operator
inj
...
CAUTlON
■
TIit cylinders
must
bel
collapsed
com-
pletely when loader
is
trarjlsported
with
no
attachment on loader,
or
tilt
cylinder
rods
may be damaged. I
F-8297 (1-94)
