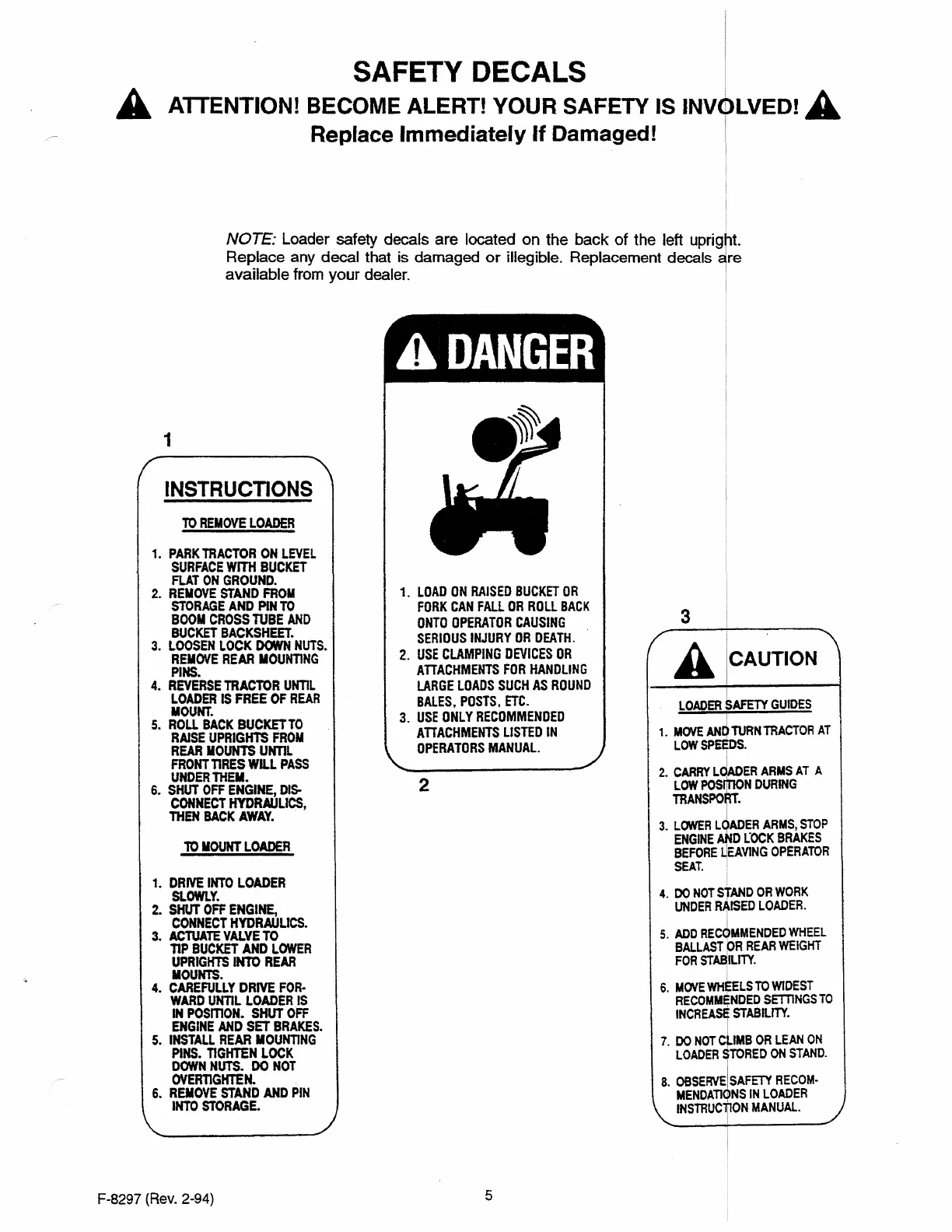

SAFETY DECALS
A ATTENTION! BECOME ALERT! YOUR SAFETY IS INV~LVED! £
Replace Immediately If Damaged! '
NOTE: Loader safety decals are located on the back of the left upright.
Replace any decal that is damaged or illegible. Replacement decals ~re
available from your dealer. ·
1
INSTRUCTIONS
TO REMOVE LOADER
1. PARK TRACTOR ON LEVEL
SURFACE WITH BUCKET
FLAT ON GROUND.
2. REMOVE STAND FROM
STORAGE AND PIN TO
80011 CROSS TUBE AND
BUCKET BACKSHEET.
3. LOOSEN LOCK DOWN NUTS.
REIIOVE REAR IIOUNTING
PINS.
4. REVERSE TRACTOR UNTIL
LOADER IS FREE OF REAR
MOUNT.
5. ROU BACK BUCKETTO
RAISE UPRIGHTS FROM
REAR IIOUNTS UNTIL
FRONT TIRES WILL PASS
UNDER THEIi.
6. SHUT OFF ENGINE, DIS-
CONNECT HYDRAULICS,
THEN BACK AWAY.
TO IIOUNT LOADER
1. DRIVE INTO LOADER
SLOWLY.
2. SHUT OFF ENGINE,
CONNECT HYDRAULICS.
3. ACTUATE VALVE TO
TIP BUCKET AND LOWER
UPRIGHTS INlO REAR
MOUNTS.
4. CAREFULLY DRIVE FOR-
WARD UNTIL LOADER IS
IN POSmON. SHUT OFF
ENGINE AND SET BRAKES.
5. INSTALL REAR IIOUNTJNG
PINS. TIGHTEN LOCK
DOWN NUTS. DO NOT
OVERTIGHTEN.
6. REMOVE STAND AND PIN
INTO STORAGE.
F-8297 (Rev. 2-94)
1. LOAD ON RAISED BUCKET OR
FORK CAN FALL OR ROLL SACK
ONTO OPERATOR CAUSING
SERIOUS INJURY OR DEATH.
2. USE CLAMPING DEVICES OR
ATTACHMENTS FOR HANDLING
LARGE LOADS SUCH AS ROUND
BALES, POSTS, ETC.
3. USE ONLY RECOMMENDED
ATTACHMENTS LISTED IN
OPERATORS MANUAL.
2
5
3
A ICAUTION
I
LOADER SAFETY GUIDES
I
I
1. MOVE ANQ TURN TRACTOR AT
LOWSP~S.
2. CARRY LdADER ARMS AT A
LOW POSljTION DURING
TRANSPOFrr.
I
3. LOWER LOADER ARMS, STOP
ENGINE AND L"OCK BRAKES
BEFORE UEAVING OPERATOR
SEAT. .
4. 00 NOT STAND OR WORK
UNDER RAISED LOADER.
I
5. ADD RECQMMENOED WHEEL
~~L~~~~~AR WEIGHT
I
6. MOVE WHEELS TO WIDEST
RECOMMENDED SETTINGS TO
INCREA~ STABILITY.
7. DO NOT CLIMB OR LEAN ON
LOADER STORED ON STAND.
8. OBSERVEi SAFETY RECOM-
MENDATIONS IN LOADER
INSTRUCfON MANUAL
