Cub Cadet 416 User Manual

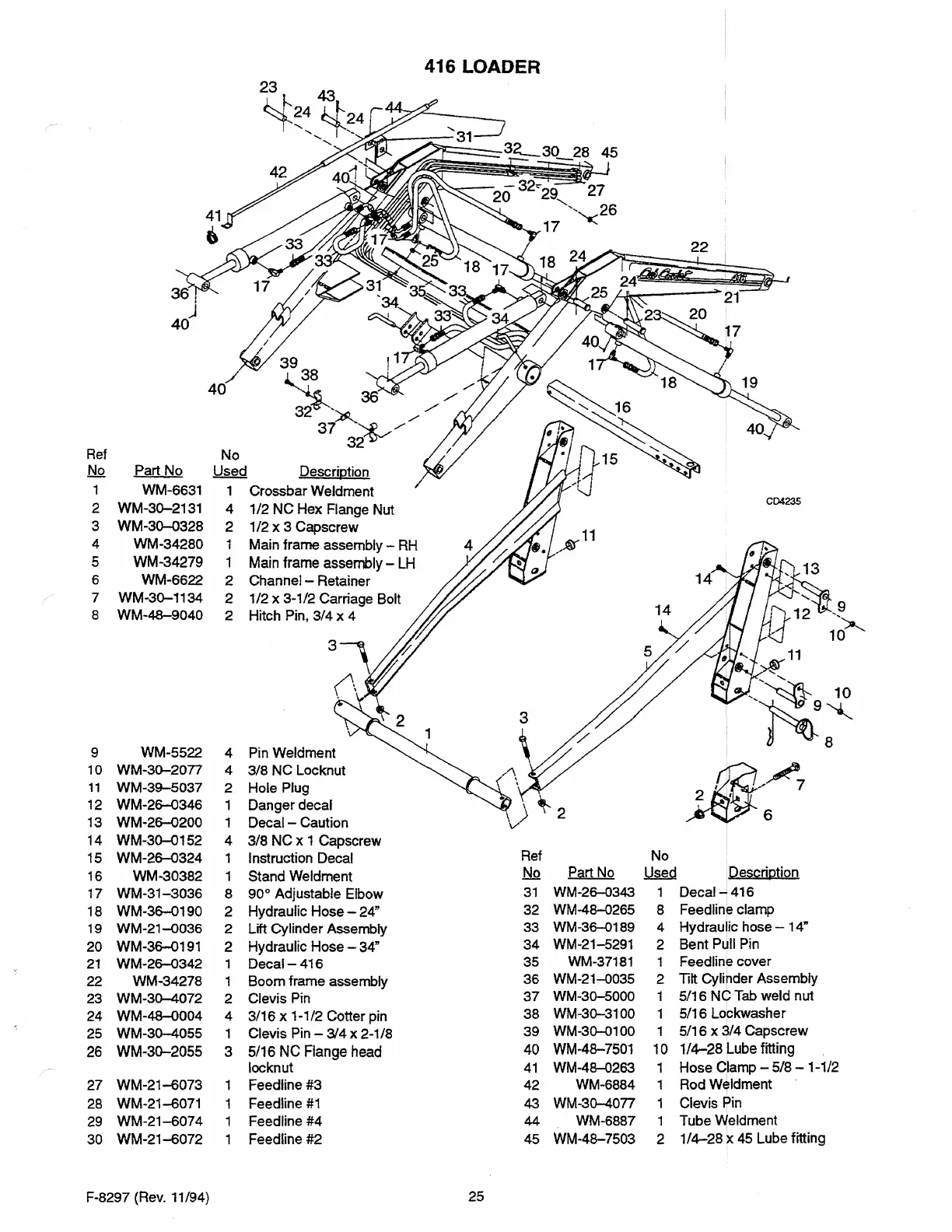

416 LOADER
39 ! 1
~
32 ,~
36
//
37 '~/
32
Ref
No
No
Part No
Used
Description
1
WM-6631
1
Crossbar Weldment
2 WM-30-2131
4
1/2 NC Hex Flange Nut
3
WM-30-0328
2 1 /2 x 3 Capscrew
4 WM-34280
1
Main frame assembly - RH
4
5
WM-34279 1
Main frame assembly - LH
/j 0
6 WM-6622
2
Channel- Retainer ,
7 WM-30-1134
2 1 /2 x 3-1 /2 Carriage Bolt
8 WM-48-9040
2
Hitch Pin, 3/4 x 4
3~ ~
(\
9 WM-5522
4 Pin Weldment
, 11
~
.... '
--~~
10 WM-30-20TT
4 3/8 NC Locknut
11
WM-39-5037
2
Hole Plug
,,/7
,
12 WM-26-0346
1 Danger decal
13 WM-26-0200
1 Decal - Caution
6
14 WM-30-0152
4 3/8 NC x 1 Capscrew
15 WM-26-0324 1 Instruction Decal
Ref
No
16 WM-30382 1
Stand Weldment
NQ
~
!Jw!
Description
17 WM-31-3036
8 90° Adjustable Elbow
31
WM-26-0343
1
Decal-416
18
WM-36-0190
2 Hydraulic Hose - 24"
32
WM-48-0265
8
Feedline clamp
19
WM-21-0036
2 Lift Cylinder Assembly
33
WM-36-0189 4 Hydraulic hose - 14"
20 WM-36-0191
2 Hydraulic Hose - 34"
34
WM-21-5291
2
Bent Pull Pin
21 WM-26-0342 1 Decal-416
35 WM-37181
1
Feedline cover
22
WM-34278
1
Boom frame assembly
36
WM-21-0035
2
Tilt Cylinder Assembly
23 WM-30-4072
2
Clevis Pin
37
WM-30-5000 1
5/16 NC Tab weld nut
24 WM-48-o004 4 3/16 x 1-1 /2 Cotter pin
38
WM-30-3100
1
5/16 Lockwasher
25
WM-30-4055
1 Clevis Pin - 3/4 x 2-1/8
39
WM-30-0100 1
5/16 x 3/4 Capscrew
26
WM-30-2055
3 5/16 NC Flange head
40
WM-48-7501
10
1/4-28 Lube fitting
locknut 41
WM-48-0263
1
Hose Clamp - 5/8 - 1-1/2
27
WM-21-6073 Feedline#3 42
WM-6884
1
Rod Weldment
28
WM-21-6071
1
Feedline #1 43
WM-30-40TT
1 Clevis Pin
29
WM-21-6074 Feedline #4
44
WM-6887
1
Tube Weldment
30
WM-21-6072 Feedline #2 45
WM-48-7503
2
1/4-28 x 45 Lube fitting
