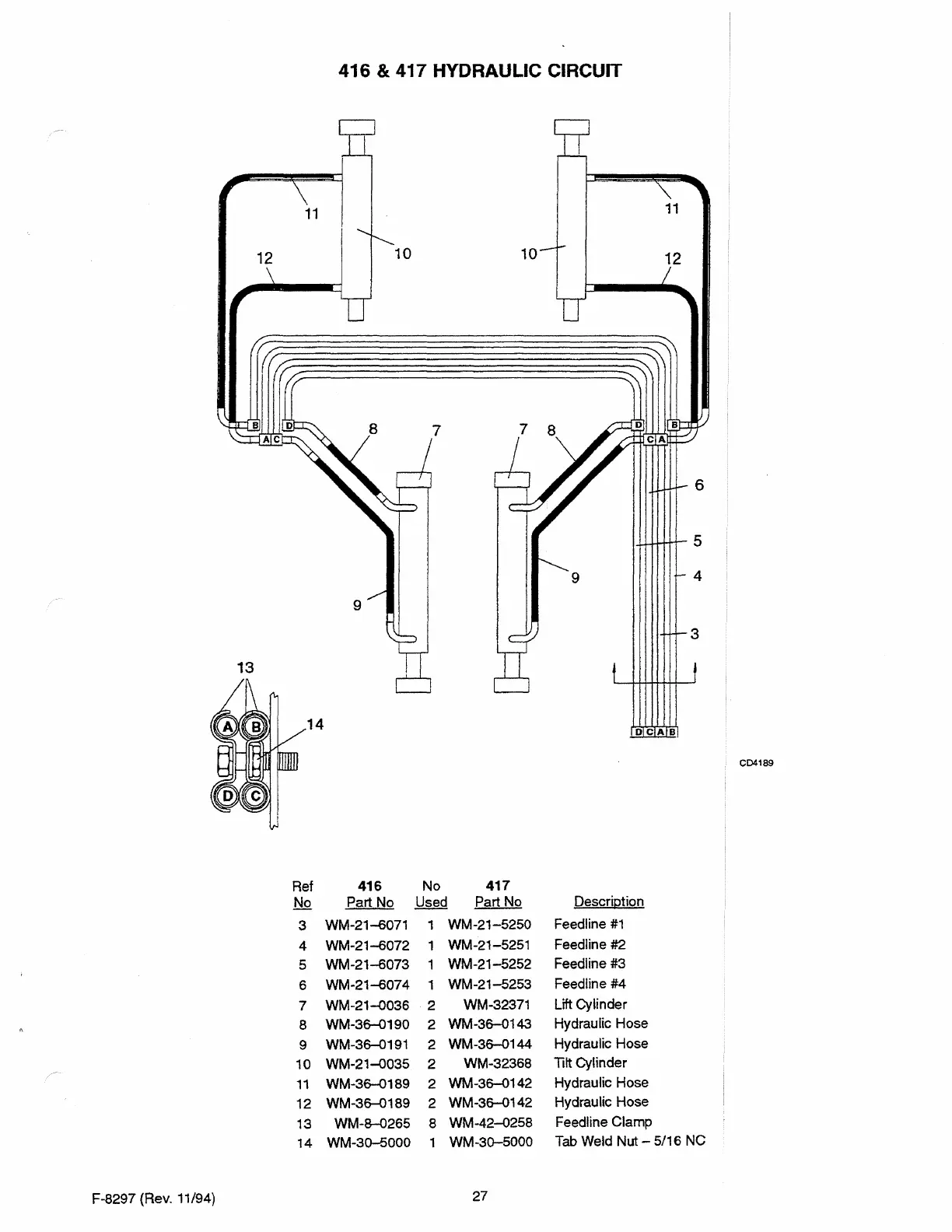

416 & 417 HYDRAULIC CIRCUIT
11
11
12
10
10
12
L.J......L->,........r- 5
9
4
3
13
14
CD4189
Ref
416
No 417
No
Part No
Used
Part No
Description
3
WM-21-6071
1
WM-21-5250
Feedline #1
4
WM-21-6072 1
WM-21-5251
Feedline #2
5
WM-21-6073
1
WM-21-5252
Feedline #3
6
WM-21-6074 1
WM-21-5253
Feedline #4
7
WM-21-0036 2
WM-32371
Lift Cylinder
8
WM-36--0190
2
WM-36-0143
Hydraulic Hose
9
WM-36--0191
2
WM-36-0144
Hydraulic Hose
10
WM-21-0035 2
WM-32368
Tilt Cylinder
11
WM-36--0189
2
WM-36-0142
Hydraulic Hose
12
WM-36-0189 2
WM-36-0142
Hydraulic Hose
13
WM-8-0265 8
WM-42-0258
Feedline Clamp
14
WM-30-5000 1
WM-30-5000
Tab Weld Nut - 5/16 NC
