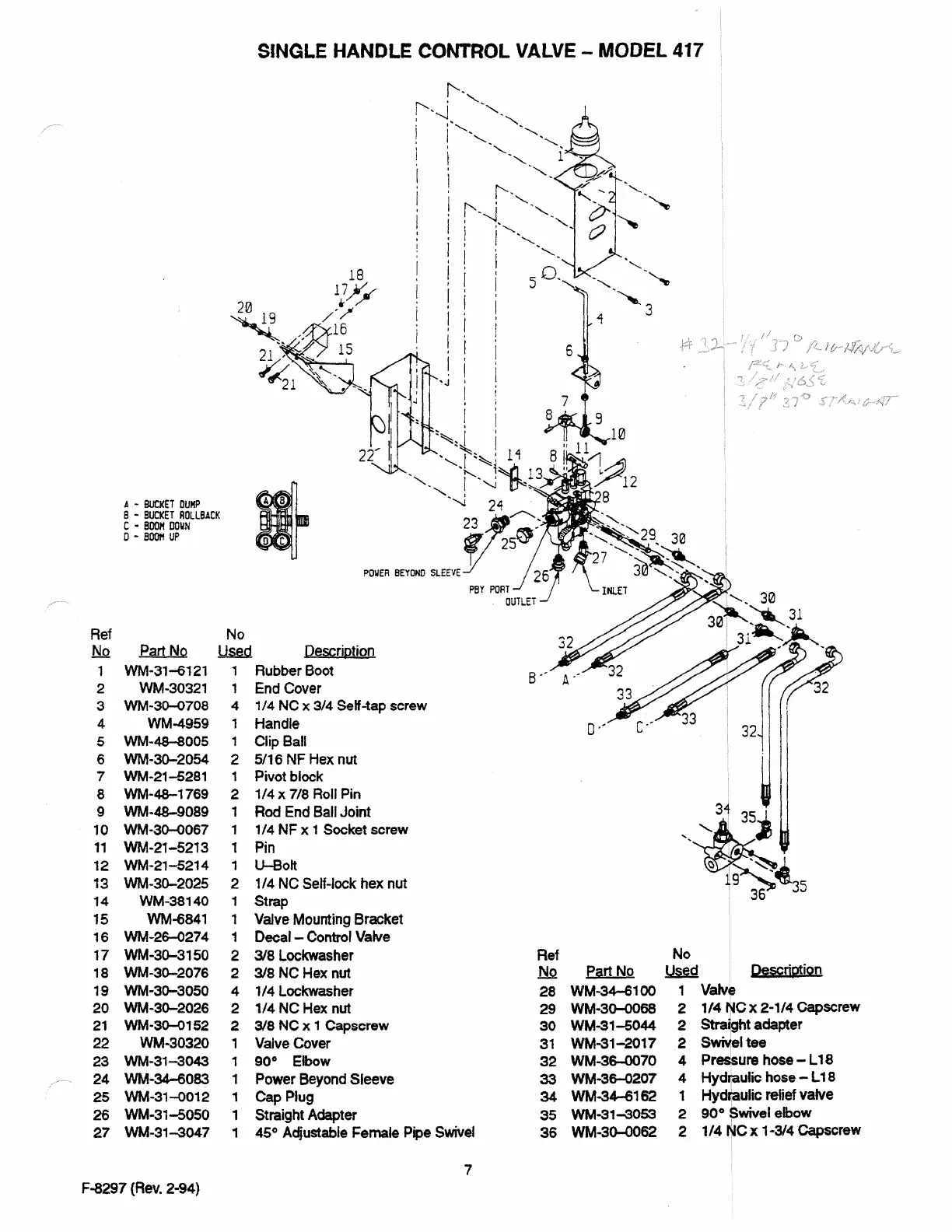

SINGLE HANDLE CONTROL VALVE - MODEL 417
Ref
'- - BUCKET OUHP
B - BUCKET ROLLBACK
C - BOON D01/N
0 - BOOI'! UP
18
1z~
20 19 //'
~, 16
21
2
No
No Part NQ
~
Description
1
WM-31-6121 1 Rubber Boot
2
WM-30321 1
End Cover
3
WM-30-0708
4 1/4 NC x 3/4 Self-tap screw
4
WM-4959 1
Handle
5
WM-48-8005
1
Clip Ball
6
WM-30-2054
2
5/16 NF Hex nut
7
WM-21-5281
1
Pivot block
8
WM-48-1769
2
1/4 x 7/8 Roll Pin
9
WM-48-9089
1
Rod End Ball Joint
10
WM-30--0067
1
1/4 NF x 1 Socket screw
11
WM-21-5213 l Pin
12
WM-21-5214 1
U-Bolt
13 WM-30-2025
2 1/4 NC Self-lock hex nut
14
WM-38140 1
Strap
15
WM-6841 1
Valve Mounting Bracket
16
WM-26-0274 1
Decal - Control Valve
17
WM-30-3150
2
3/8 Lockwasher
18
WM-30-2076
2
3/8 NC Hex nut
19
WM-30-3050
4
1/4 Lockwasher
20
WM-30-2026
2 1/4 NC Hex nut
21
WM-30-0152
2
3/8 NC x 1 Capscrew
22
WM-30320
,
Valve Cover
23
WM-31-3043
1
goo
Elbow
24
WM-34-6083 1
Power Beyond Sleeve
25
WM-31-0012
1
Cap Plug
26
WM-31-5050
,
Straight Adapter
27
WM-31-3047
1 45° Adjustable J:emale Pipe Swivel
7
F-8297 (Rev. 2-94)
_ 30
0; ~-31
1
31,
I
'1
, 33 I
1
. ' 32
Ref
No
~
e§rt No
YHsl
Qescription
28
WM-34-6100
1
Valv,
29
WM-30-0068 2
1/4 NC x 2-1/4 Capscrew
30
WM-31-5044 2
Straight adapter
31
WM-31-2017
2
Swi\'eltee
32
WM-36-0070
4
Pressure hose - L 18
33
WM-36-0207
4 Hydifaulic hose - L 18
34
WM-34-6162
1
Hydr;aulic relief valve
35
WM-31-3053
2
90° Swivel elbow
36
WM-30-0062
2
1/4 NC x 1-3/4 capscrew
