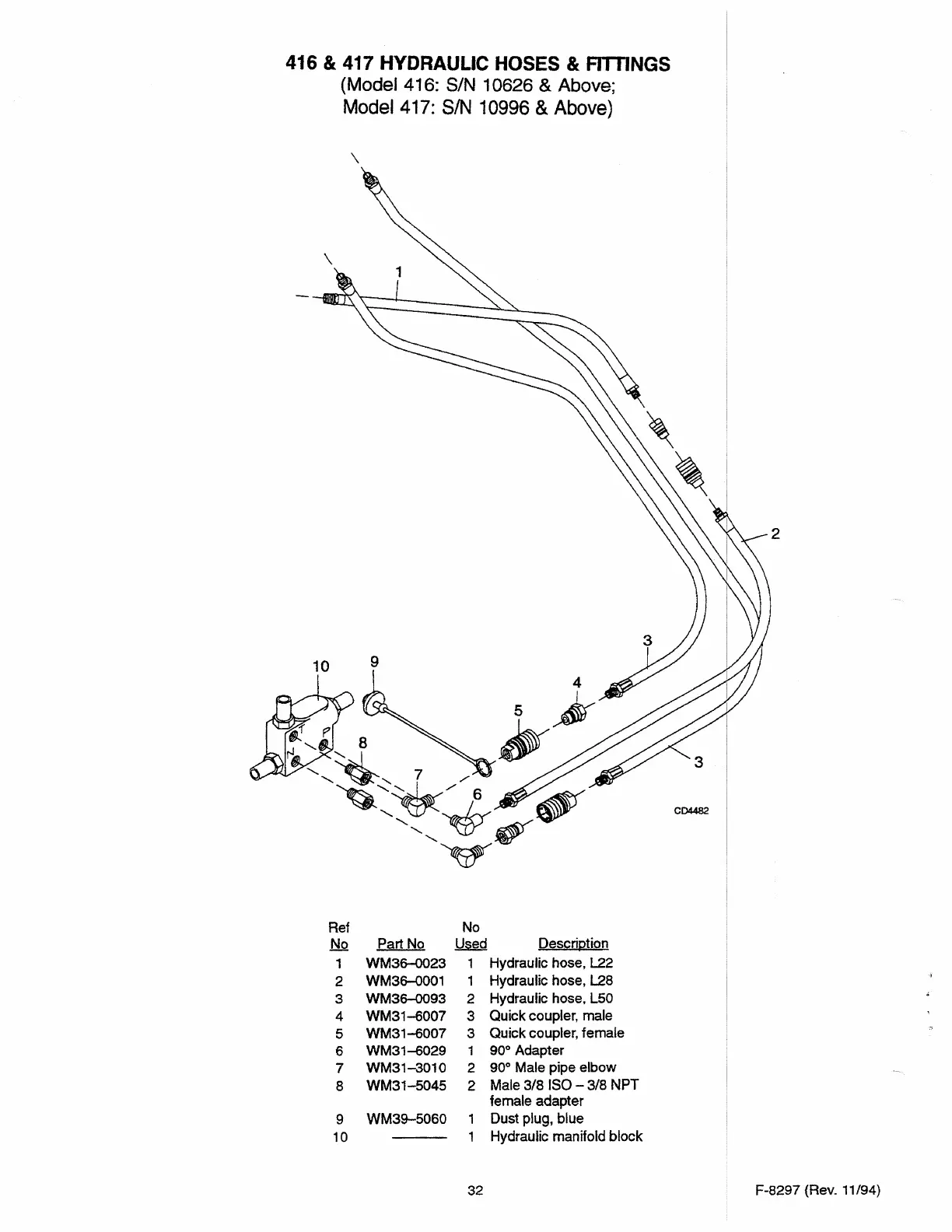

416 & 417 HYDRAULIC HOSES & RTTINGS
(Model 416: S/N 10626 & Above;
Model 417: SIN 10996 & Above)
\
9
4
I
5
........... ........ 7
~:~/ 6
................................. ~
V
Ref
No
No
Part No
Used
Description
,
WM36-0023
Hydraulic hose, L22
2
WM36--0001
Hydraulic hose, L28
3
WM36-0093
2
Hydraulic hose, LS0
4
WM31-6007
3
Quick coupler, male
5
WM31-6007
3
Quick coupler, female
6
WM31-6029
1 90° Adapter
7
WM31-3010
2
90° Male pipe elbow
8
WM31-5045
2
Male 3/8 ISO - 3/8 NPT
female adapter
9
WM39-5060 1
Dust plug, blue
10
Hydraulic manifold block
32
2
C04482
F-8297 (Rev. 11/94)
