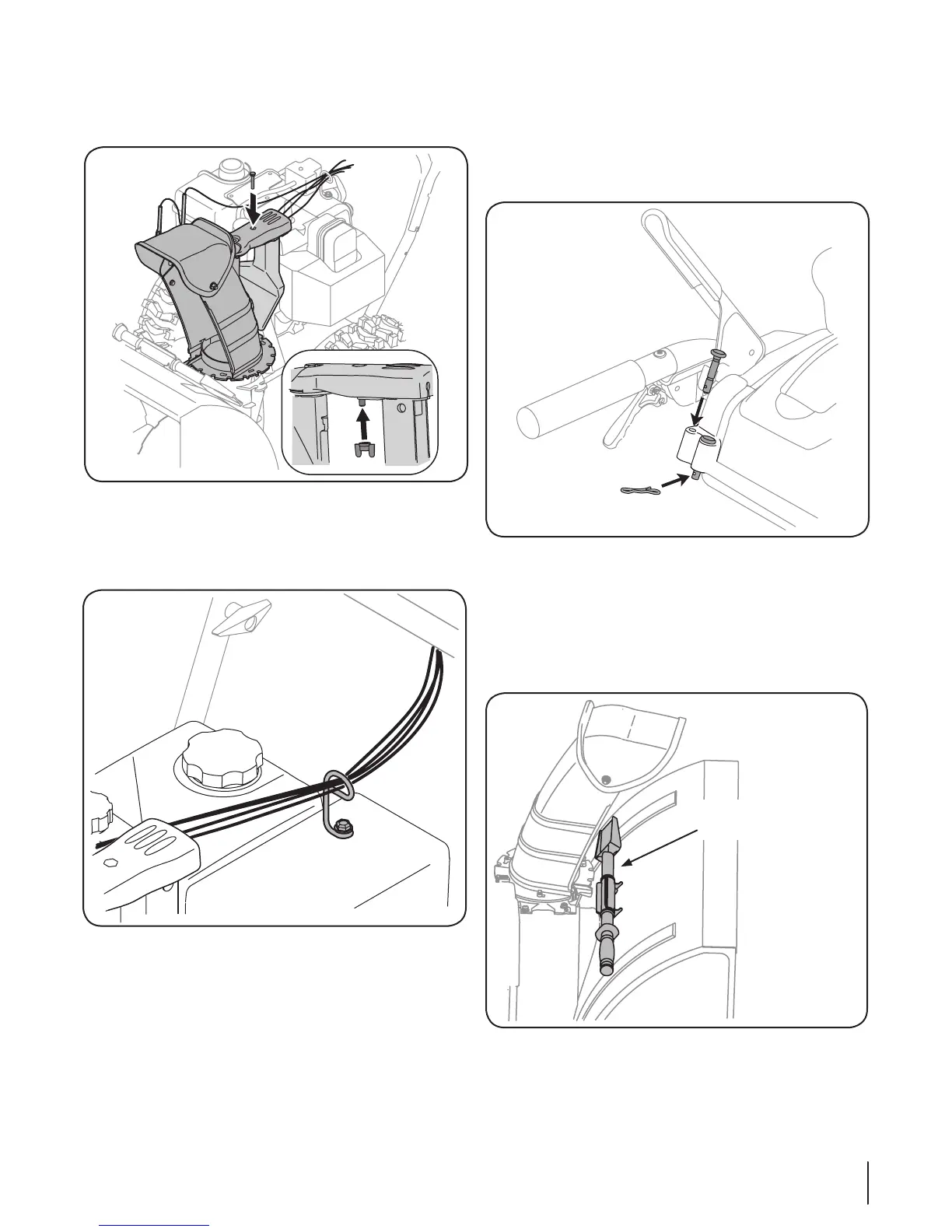

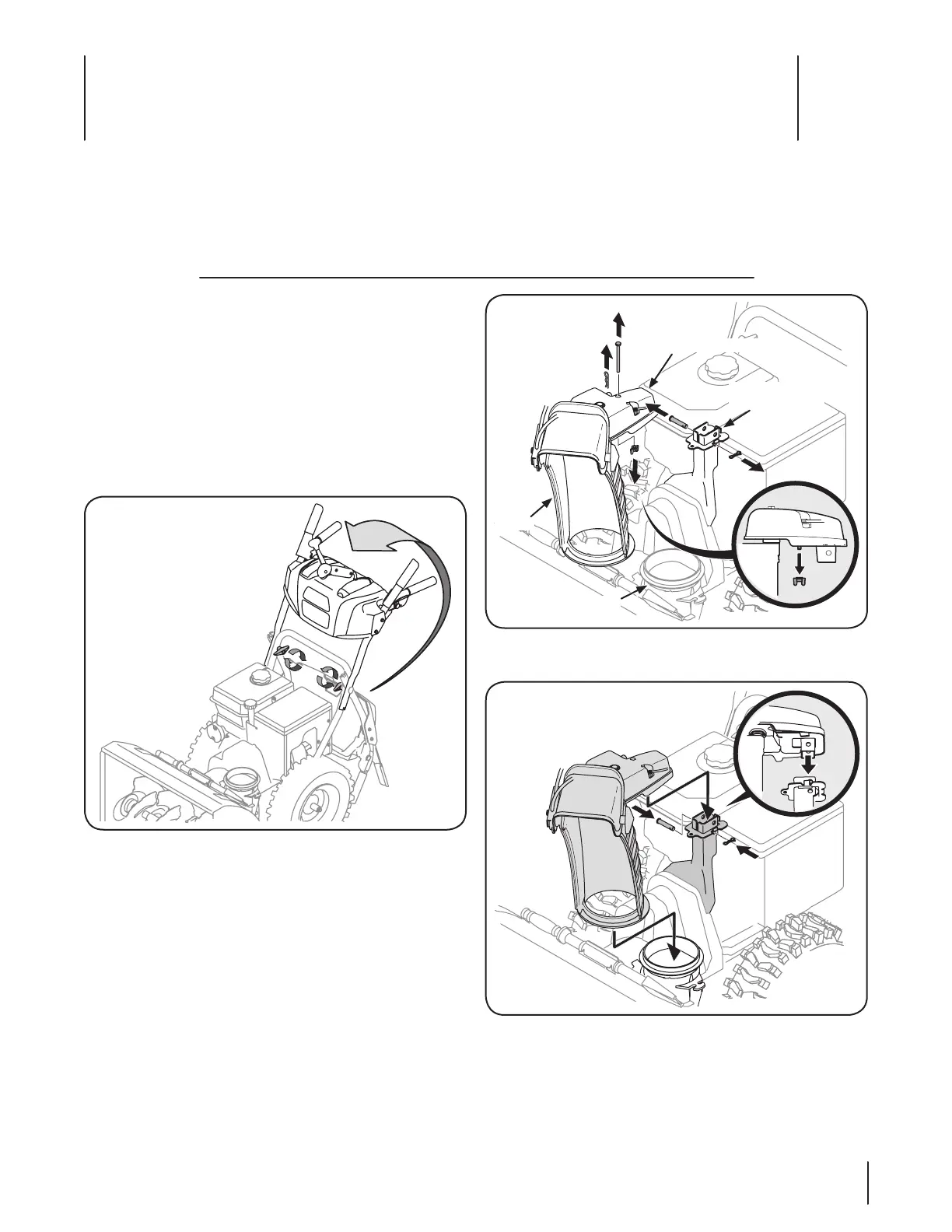

Finish securing chute control assembly to chute support
bracket with wing nut and hex screw removed earlier.
See See Fig. 3-4.
Check that all cables are properly routed through the cable
guide on top of the engine. See Fig. 3-5.
3.
4.
Figure 3-4
Set-Up
Shear Pins
A pair of replacement auger shear pins and bow tie cotter pins
are included with your snow thrower. Store them in your snow
thrower’s dash panel until needed. See Fig. 3-5.
Chute Clean-Out Tool
The chute clean-out tool is fastened to the top of the auger
housing with a mounting clip and a cable tie at the factory. Cut
the cable tie before operating the snow thrower. See Fig. 3-7.
Figure 3-6
Figure 3-7
Figure 3-5
7sectiOn 3 — asseMbly & set-up
