Finish securing chute control head to chute support 3.
bracket with wing nut and hex screw removed in step 1.

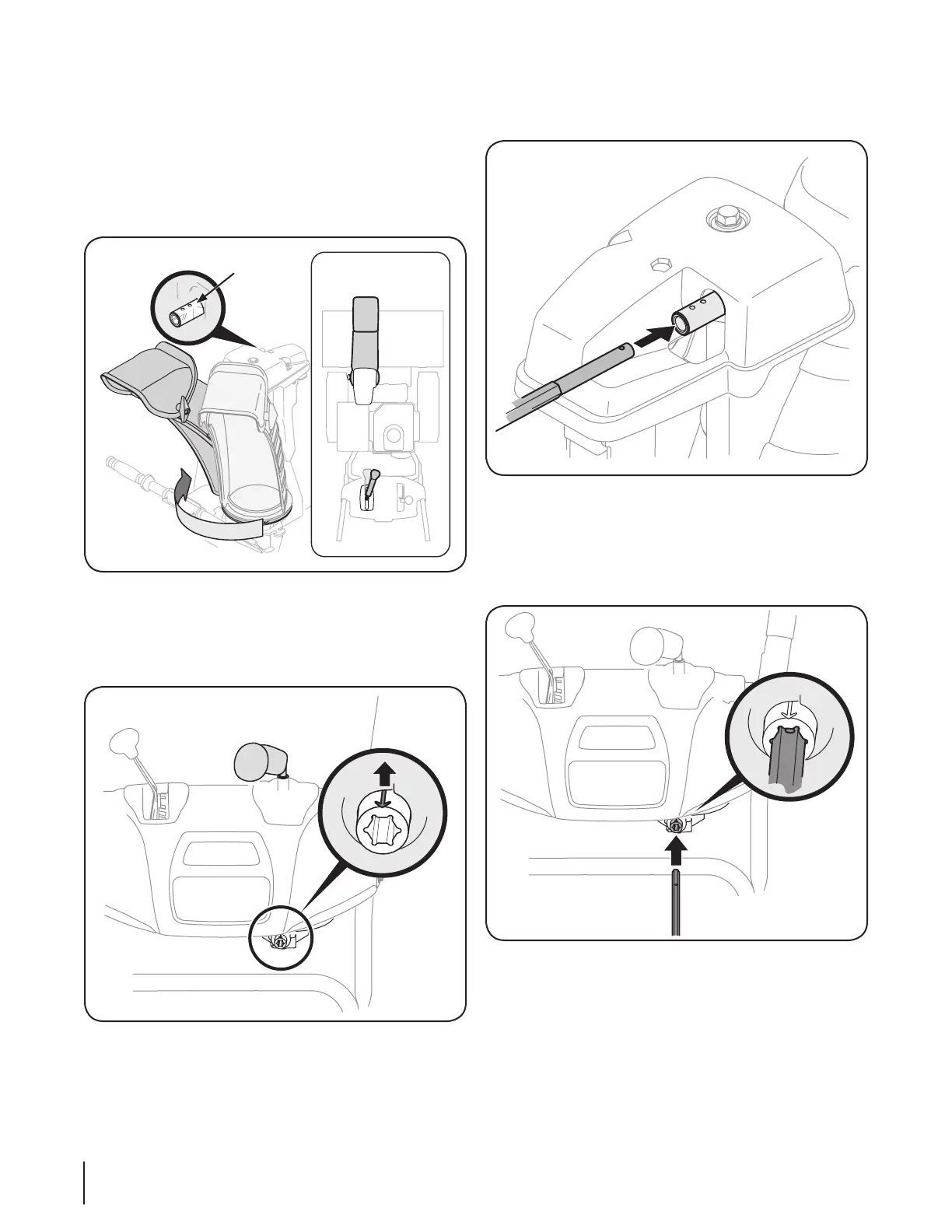

See Fig. 3-2.
Squeeze the trigger on the joystick and rotate the chute by 4.
hand to face forward. The holes in the chute control head
will be facing up. See Fig. 3-4.
Note: The chute will not rotate without squeezing the
trigger on the joystick.
Rotate the joystick until the silver indicator arrow on the 5.
pinion gear below the control panel faces upward. See
Fig. 3-5.
Note: The joystick will be angled slightly to the right.
Insert hex rod into chute control head. Push rod as far into 6.
chute control head as possible, keeping the hole in the hex
rod pointing upward. See Fig. 3-6.
Insert the hex rod into the pinion gear below the joystick. 7.
Make sure to line up the hole in the hex rod with the arrow
on the pinion gear. See Fig. 3-7.
Note: The hole is a reference for aligning the rod with the
indicator arrow on the pinion gear.
Top View
Chute Control
Input
Figure 3-4
Figure 3-7
Figure 3-6
Figure 3-5
8 se c t i O n 3— as s e M b l y & se t -up
