14
R. Differential Lock Pedal
Figure 8
Located at the front of the left running board, the
differential lock pedal engages the transmission
differential lock.
The differential lock is used to gain additional trac-
tion when operating the tractor on wet or loose soil.
When the pedal is depressed the rear wheels of the
tractor are prevented from rotating independently of
one another.
WARNING: When operating with the
differential lock engaged, the tractor
will be difficult to steer. Do not drive
the tractor on roadways or at high
speeds with the differential lock
engaged.
NOTE: Disengagement of the differential lock is
recommended prior to turning the tractor on grass
or other maintained surfaces — tire damage to the
turf could occur.
S. Choke Control Knob
Figure 9
The choke knob controls the position of the engine
choke. Pull the knob out to choke the engine; push
the knob in to open the choke.
T. Headlight Switch
Figure 10
The headlight switch is a rocker type switch located
to the left of the steering wheel on the dash panel.
Push the top of the headlight switch downward to
turn on the headlights and instrument panel gauge
lights.

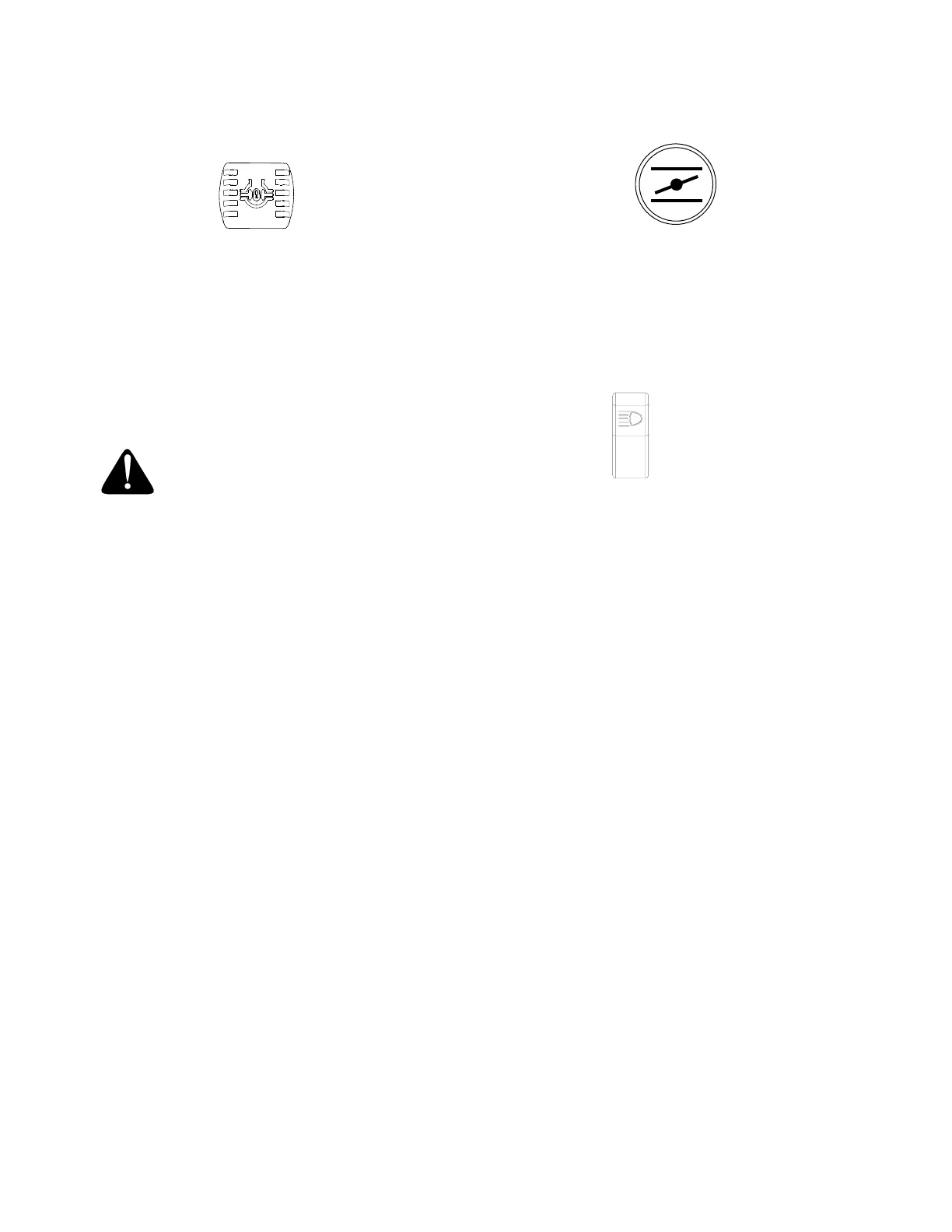

Diff. Lock
Pedal
Symbol
Choke
Knob
Headlight
Switch
Symbol
