DRIVING ON SLOPES
WARNING: Do not operate on inclines
with a slope in excess of 15 degrees (a
rise of approximately 2-1/2 feet every
10 feet). The tractor could overturn and
cause serious injury.
IMPORTANT: Always shift the transmission
into the LOW speed range BEFORE beginning
the climb or descent of any slope.
Operate the tractor up and down slopes, never
across slopes. Do not drive so that the tractor may
tip over sideways
Before operating the tractor on a slope, walk the
slope to look for possible hazards such as rocks,
mounds, stumps, or surface irregularities which
could cause the tractor to be upset.
Back the tractor with attachment up the steepest
portion of each slope you intend to work. If the
tractor cannot negotiate the slope in reverse, the
slope is too steep to be worked.
Avoid turns when driving on a slope. If a turn must
be made, turn down the slope. Turning up a slope
greatly increases the chance of a roll over.
Avoid stopping when driving up a slope. If it is
necessary to stop while driving up a slope, start up
smoothly and carefully to reduce the possibility of
flipping the tractor over backward.
USING THE DIFFERENTIAL LOCK PEDAL
Depressing the differential lock pedal engages a
mechanism in the transmission that locks the
differential. This prevents the rear wheels from
rotating independently of each other and provides
constant power to both rear wheels when additional
traction is needed.
IMPORTANT: Do not engage the differential
lock when one of the rear wheels is rotating.
Stop the wheel rotation and then engage the
differential lock.
WARNING: When operating with the
differential lock engaged, the tractor
will be difficult to steer. Do not drive
the tractor on roadways or at high
speeds with the differential lock
engaged.
• Fully depress and hold the differential lock
pedal to engage the transmission differential
lock. Release the pedal to disengage the
differential lock. See Figure 16.

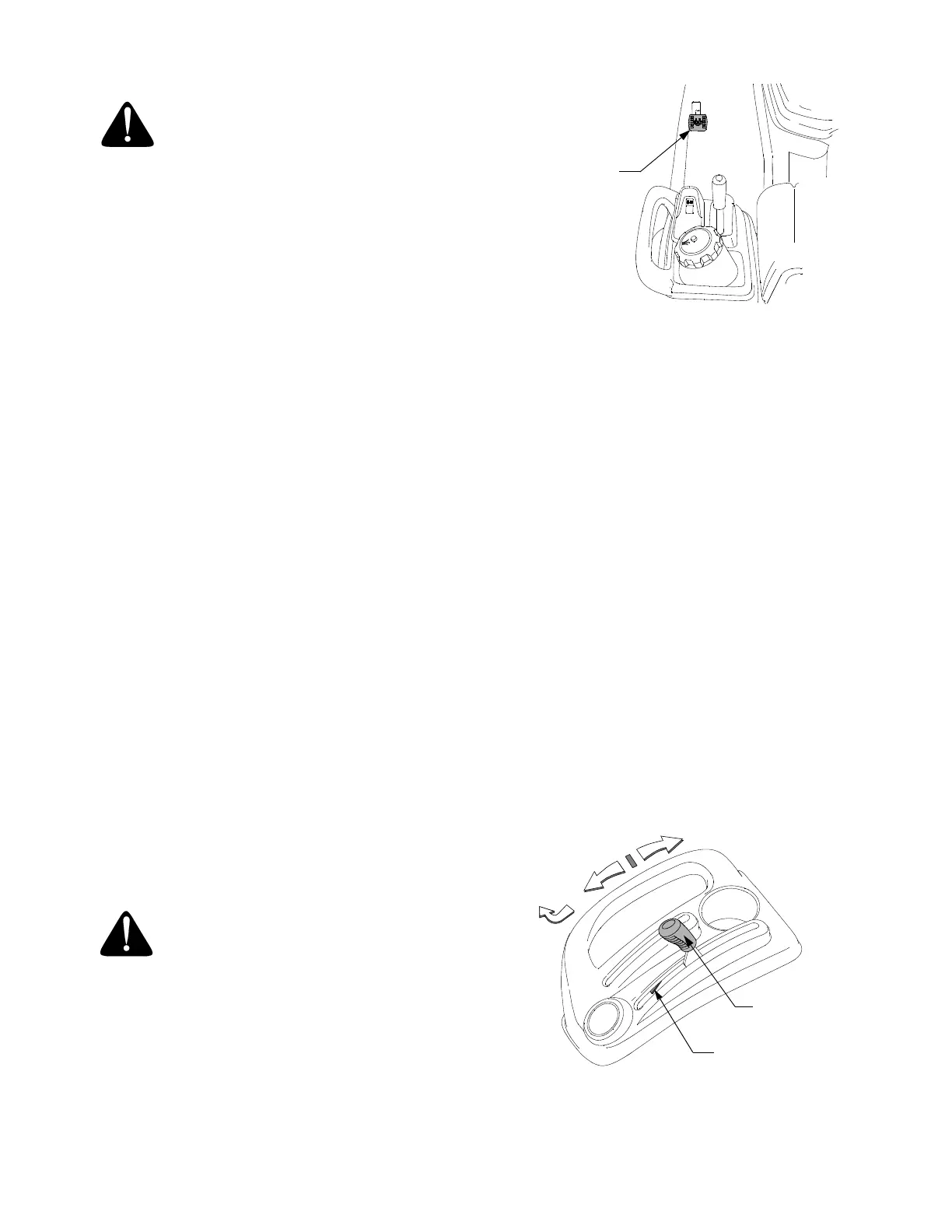

Figure 16
NOTE: Because of the drive load on the internal
engagement mechanism, releasing the differential
lock pedal may not always disengage the
differential lock. It may be necessary to slow the
tractor, or reverse the direction of travel, to
disengage the differential lock.
USING THE HYDRAULIC LIFT LEVER
The hydraulic lift system provides power for raising
and positioning three point hitch and belly mounted
equipment. To raise an attachment using the
hydraulic lift system, the engine must be running.
Generally, an attachment can be lowered with the
engine running or off.
• Move the lift lever forward in the slot to lower
the equipment to the desired height setting.
Refer to Figure 17.
• Move the lift lever rearward in the slot to raise
the equipment.
• Move the lift lever fully forward and to the right
ahead of the float lock projection to lock the lift
in the float position.
Figure 17
DIFFERENTIAL
LOCK PEDAL
(Depress and
Hold to Engage)
HYDRAULIC
LIFT LEVER
FLOAT LOCK
PROJECTION
Raise
Lower
Float
