33
Main Fuse
The main fuse in the tractor wire harness protects
the tractor’s entire electrical system. A blown main
fuse will prevent battery current from passing
though the harness.
To replace the main fuse:
• Raise the tractor hood and remove the right
side panel.
• Locate the main fuse under the dash panel,
along the tractor’s right frame rail. See Figure 37.

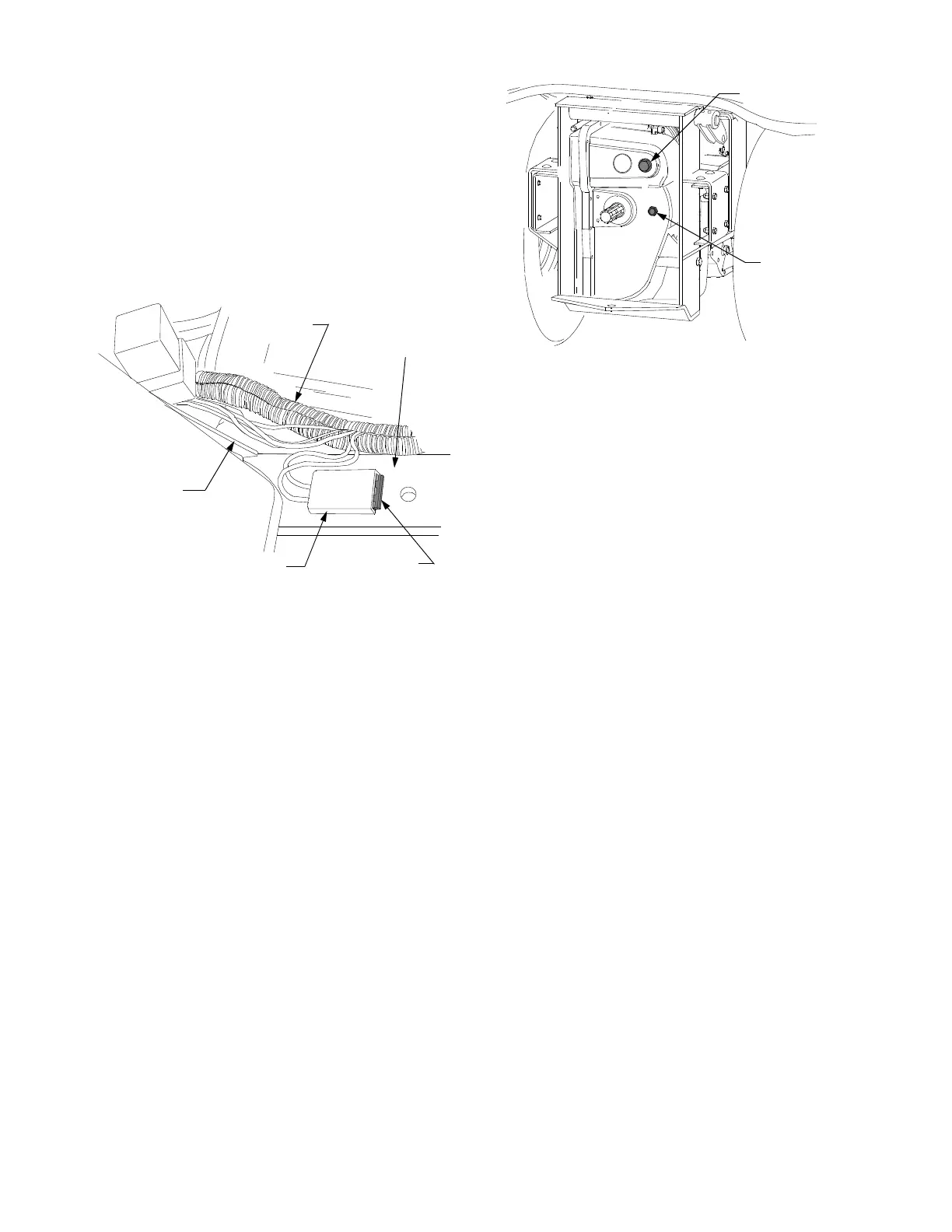

Figure 37
• Pull the fuse from the fuse holder and replace
with the same capacity fuse (30 Amp). NEVER
use a higher amperage fuse.
• Install side panel and lower tractor hood.
CHECKING TRANSMISSION/HYDRAULIC
SYSTEM OIL LEVEL
Check the hydro transmission/hydraulic system oil
level before each use. NOTE: Check the oil level
only while the engine is stopped and the tractor is
standing on a level surface.
The oil level sight glass is located in the rear of the
transmission housing, just to the right of the rear
PTO shaft. Refer to Figure 38.
The oil level is okay if oil can be seen through the
sight glass. If the level is below the sight glass, oil
must be added to the transmission as follows:
• Locate the oil fill plug on the upper right of the
rear of the transmission housing. See Figure 38.
• Clean the area around the oil fill plug to prevent
debris from entering the transmission housing.
• Turn the oil fill plug counterclockwise to unscrew
from the transmission housing.
Figure 38
• Insert a funnel (preferably one with a flexible
spout) into the fill hole of the transmission
housing.
• Add Cub Cadet Drive System Plus oil until the
oil level can be seen through the sight glass.
Do not overfill the transmission.
IMPORTANT: Always use Cub Cadet Drive
System Plus oil to ensure correct formulation.
Substitute oils could affect performance and
may cause damage to the transmission.
• Reinsert the oil fill plug into the transmission
housing and turn clockwise until tight.
CHANGING THE HYDRO TRANSMISSION AND
HYDRAULIC SYSTEM OIL FILTERS
With the exception of the first oil filter change after
the 25 hour break-in period, the hydraulic system oil
filter should be changed along with the
transmission/hydraulic system oil after every 200
hours of operation. The hydro transmission filter
should be changed after every 100 hours of
operation.
25 Hour Break-In Period Filter Change
During the initial hours of tractor operation,
contaminants caused by the normal break-in of
internal transmission and hydraulic system
components will collect in the oil filters. Because of
this, both the hydro transmission and hydraulic
system filters should be changed after the first 25
hours of operation.
Hydro Pump Filter — Part No. BS-492932S
Hydraulic System Filter — Part No. 723-0405
NOTE: If a front end loader, or a loader and back-
hoe, is installed on the tractor after the first 25
hours of operation, it is recommended that the fil-
ters again be changed after the first 25 hours of
operation with these attachments installed.
MAIN FUSE
RT. FRAME
RAIL
DASH
FUSE HOLDER
PANEL
WIRE
HARNESS
OIL FILL PLUG
OIL LEVEL
SIGHT
HOLE
