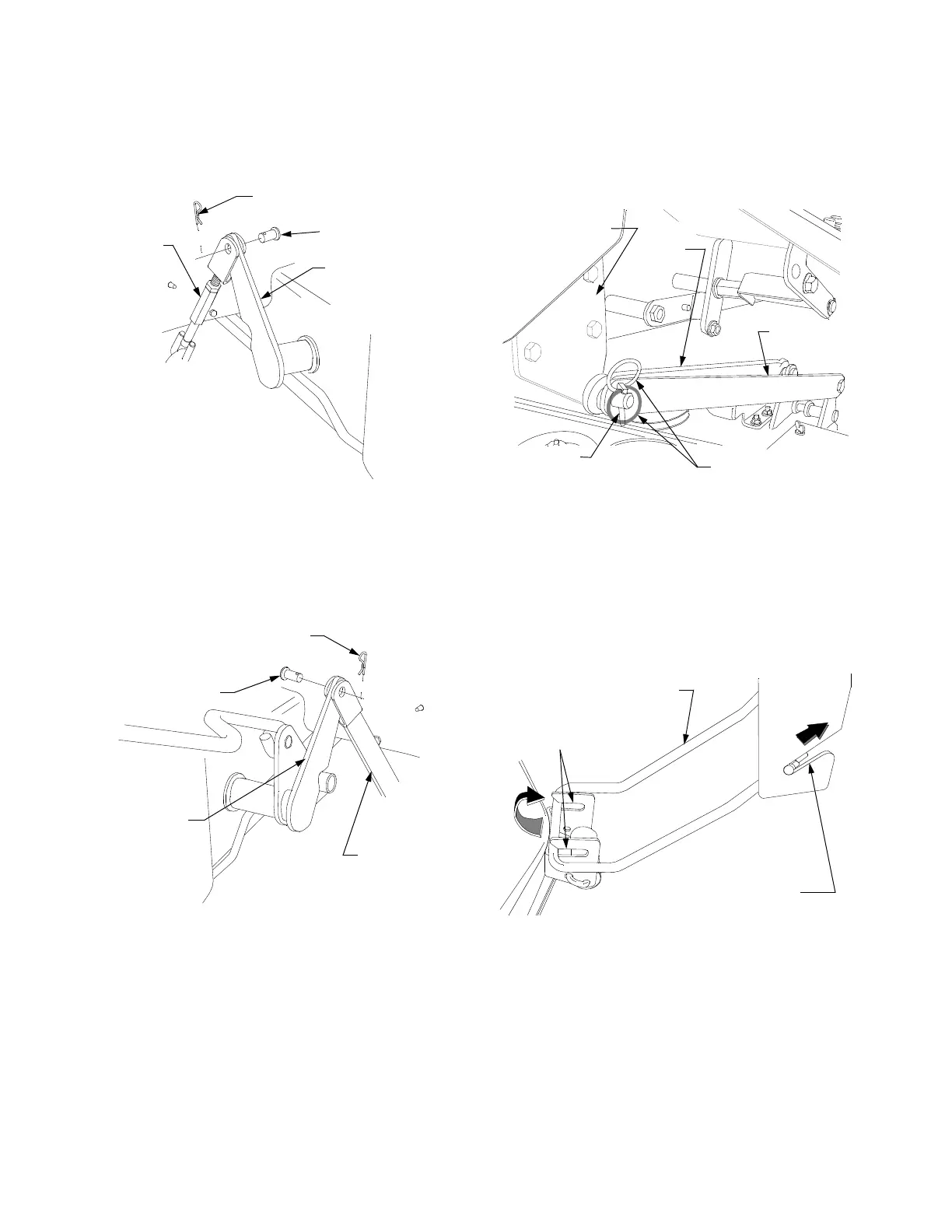

• Disconnect the check chain from the LH lift arm
by removing the internal cotter pin and clevis
pin. Reinstall the clevis pin and internal cotter
pin in the check chain to avoid their loss. See
Figure 56.
Figure 56
• Disconnect the fixed link from the RH lift arm by
removing the internal cotter pin and clevis pin.
Reinstall the clevis pin and internal cotter pin in
the fixed link to avoid their loss. See Figure 57.
Figure 57
• On each side of the tractor, flip the klik pin
locking ring upward and remove the klik pin
from the frame mounting plate pin. Slide the
side brace and deck lift arms from each frame
mounting pin. Reinstall the klik pins to avoid
losing. Refer to Figure 58.
Figure 58
• Roll the deck forward to disengage the deck
hanger rod from the slots of the deck front roller
bracket. Lift the deck hanger rod and slide out
of the slots in the front receiver brackets. See
Figure 59. Store the deck hanger rod assembly
with the deck to avoid misplacing it.
Figure 59
INTERNAL
COTTER PIN
LH LIFT ARM
CLEVIS PIN
CHECK
CHAIN
INTERNAL
COTTER PIN
CLEVIS PIN
RH LIFT
FIXED LINK
ARM
LH FRAME
MTG. PLATE
SIDE
BRACE
KLIK PIN
LOCKING RING
DECK
LIFT
ARM
DECK ROLLER
BRACKET SLOTS
FRONT RECEIVER
DECK HANGER
ROD ASSEMBLY
BRACKET SLOTS
