50

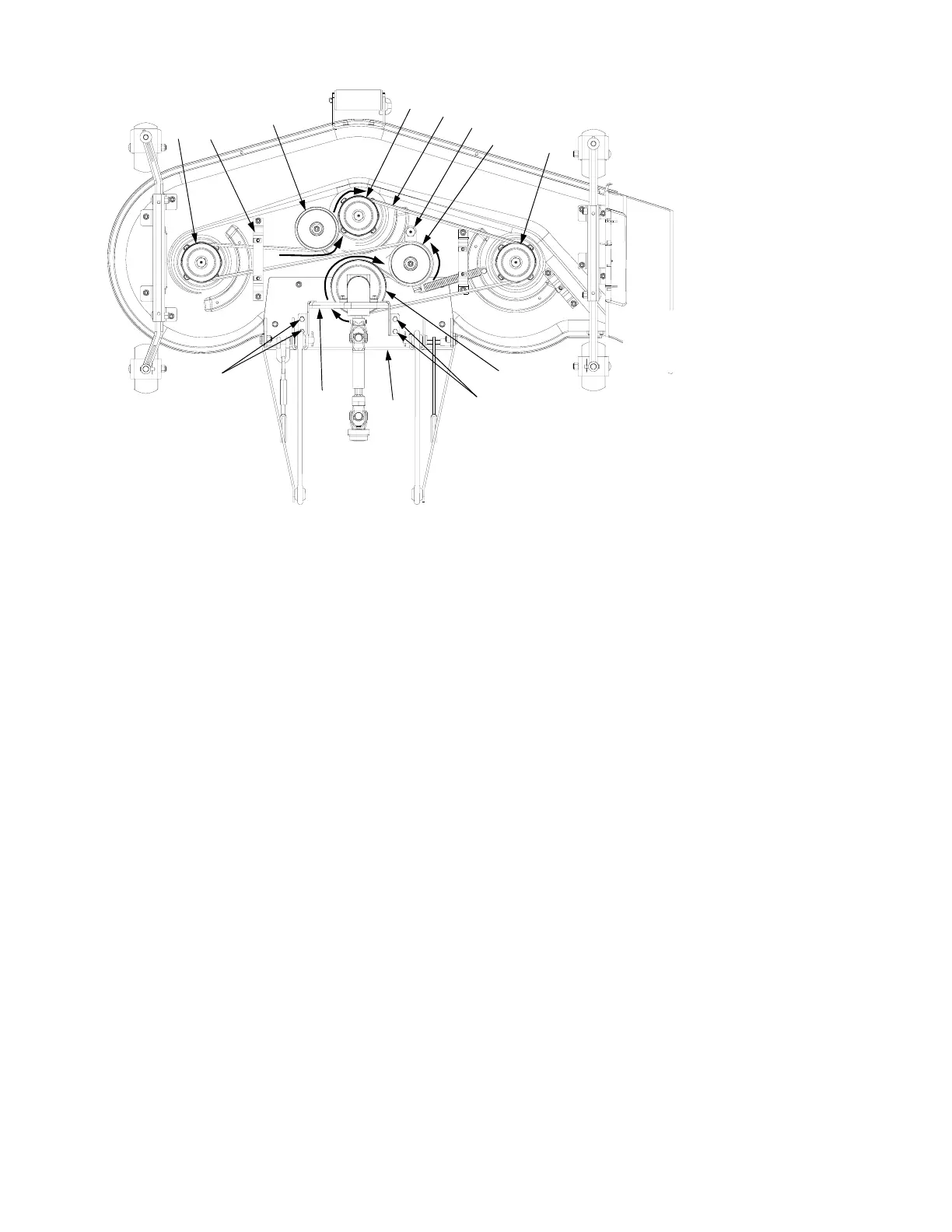

Figure 64
Install New Spindle Belt
1. Lift the gear box/mounting bracket assembly to
install the belt around the rear of the drive pulley
and through the center opening of the mounting
bracket.
2. Position the gear box mounting bracket on the
deck mounting plate and secure with the four
hex cap screws and hex flange lock nuts.
3. Route the backside of the belt around the
movable flat idler pulley. See Figure 64.
4. Loop the belt and slide it underneath the LH belt
cover mounting strap. See Figure 64.
5. Route the belt as follows:
around the left spindle pulley
around the rear of the fixed flat idler pulley
around the front of the center spindle pulley
to the right spindle pulley
6. After making certain the spindle belt is properly
engaged in each pulley, pivot the movable flat
idler pulley toward the left side of the deck to
relieve tension and to allow the belt to be rolled
onto the right hand spindle pulley.
7. Install the belt covers and secure with the thumb
screws.
1
1
1
2
4
9
3
5
6
10
7
9
8
1.
2.
3.
4.
5.
Spindle Pulleys
Movable Flat Idler Pulley
Drive Pulley
Fixed Flat Idler Pulley
Spindle Belt
6.
7.
8.
9.
LH Belt Cover Mntg. Strap
Gear Box Mntg. Bracket
Idler Arm
Hex Cap Screws
10. Deck Mounting Plate

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Cub Cadet 5252 and is the answer not in the manual?

Cub Cadet 5252 Specifications

General IconGeneral
Engine Power25 HP
Cylinders2
Fuel TypeGasoline
Transmission TypeHydrostatic
Drive2WD
PTOIndependent
PTO Power19.5 HP
Turning Radius18 inches
SteeringPower
Deck MaterialSteel
Warranty3 year / 120 hour (residential)
