8
SECTION 4: TO THE DEALER
Assembly and proper installation of this attachment is the responsibility of the Cub Cadet Yanmar dealer. Read the instructions and safety
precautions found in this manual carefully. Any and all front-end attachments installed on the tractor must first be removed in order to
properly install the Front-end Loader.
SECTION 5: TO THE OWNER
Model 59A40003727 Front-end Loader is designed for use ONLY with specific Cub Cadet Yanmar tractor models. It will NOT fit nor
operate safely or properly on or with any other tractor.
References to LEFT and RIGHT indicate the left and right sides of the tractor when facing forward in the operator’s position. Reference to
the FRONT indicates the grille end; to the REAR the drawbar end.
SECTION 6: CONTENTS
The front loader attachment components are listed below along with their part numbers. Assemblies are made up of more than one part
and do not have a part number. Before beginning installation, lay all components out on a flat surface to assure everything is present.
Throughout the manual the parts in the hardware pack will be identified by name, followed by their callout number in parenthesis, to aid in
installation.

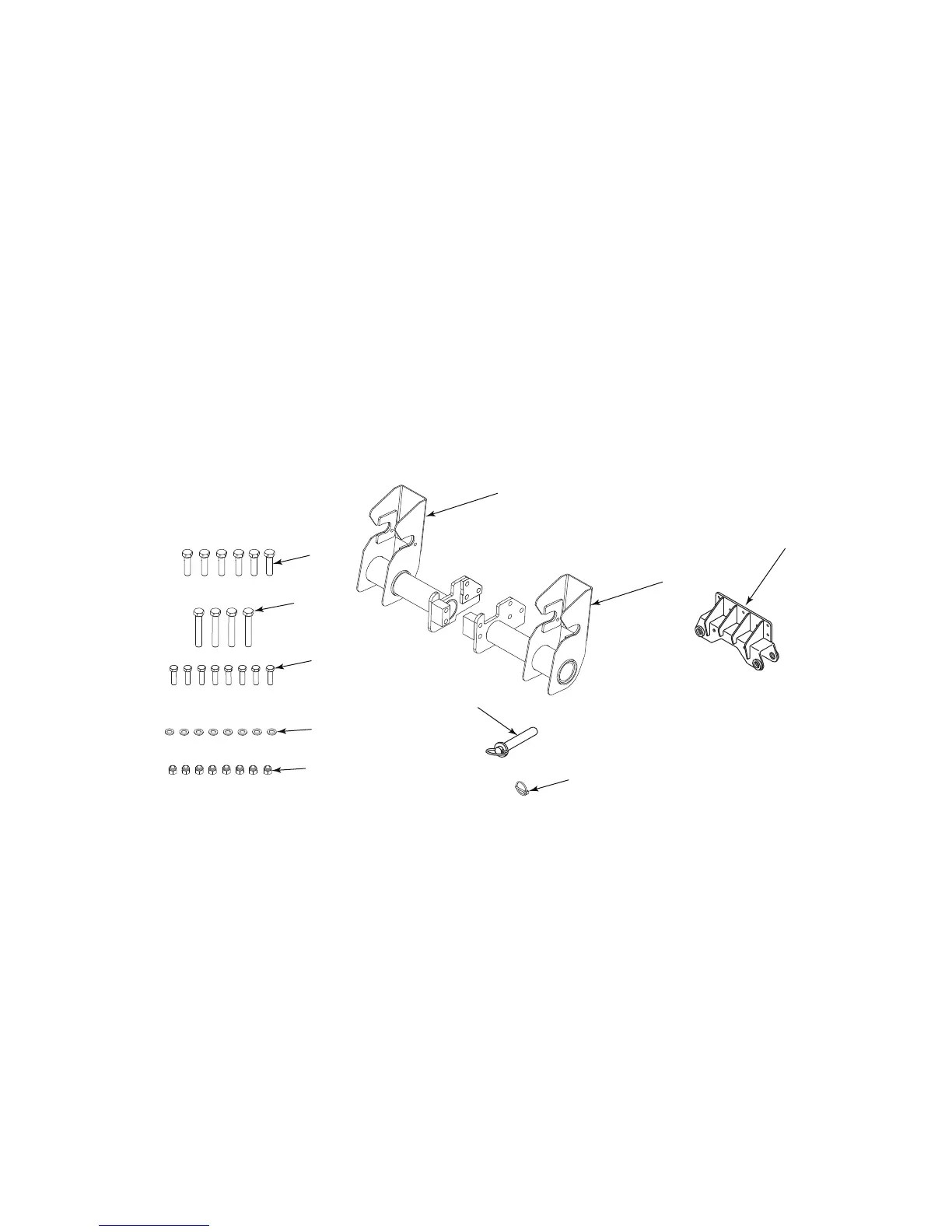

Figure 1
1 RH Mount .................................. 603-04404 1 pc
2 LH Mount .................................. 603-04403 1 pc
3 Front Mount Receiver ................ 603-04402 1 pc
4 Hex Cap Screw, M16-2.0 x 60 ...710-04700 6 pc
5 Hex Cap Screw, M16-2.0 x 100 ..710-04701 4 pc
6 Hx Cp Scrw, 1/2-13 x 1.75 Gr5 ...710-3067 8 pc
7 Flat Washer ............................... 736-0192 8 pc
8 Hex Lock Nut, 1/2-16 Gr5 .......... 712-3083 8 pc
9 Mounting Pin .............................. 711-04771 2 pc
10 Lynch Pin .................................. 714-0220A 2 pc
Not Shown - Loader Bucket ........... 603-04399 1 pc
Not Shown - Complete Mast & Boom Assembly 1 pc
1
3
4
2
10
5
6
7
8
9
