SECTION 1: CONTROLS AND FEATURES

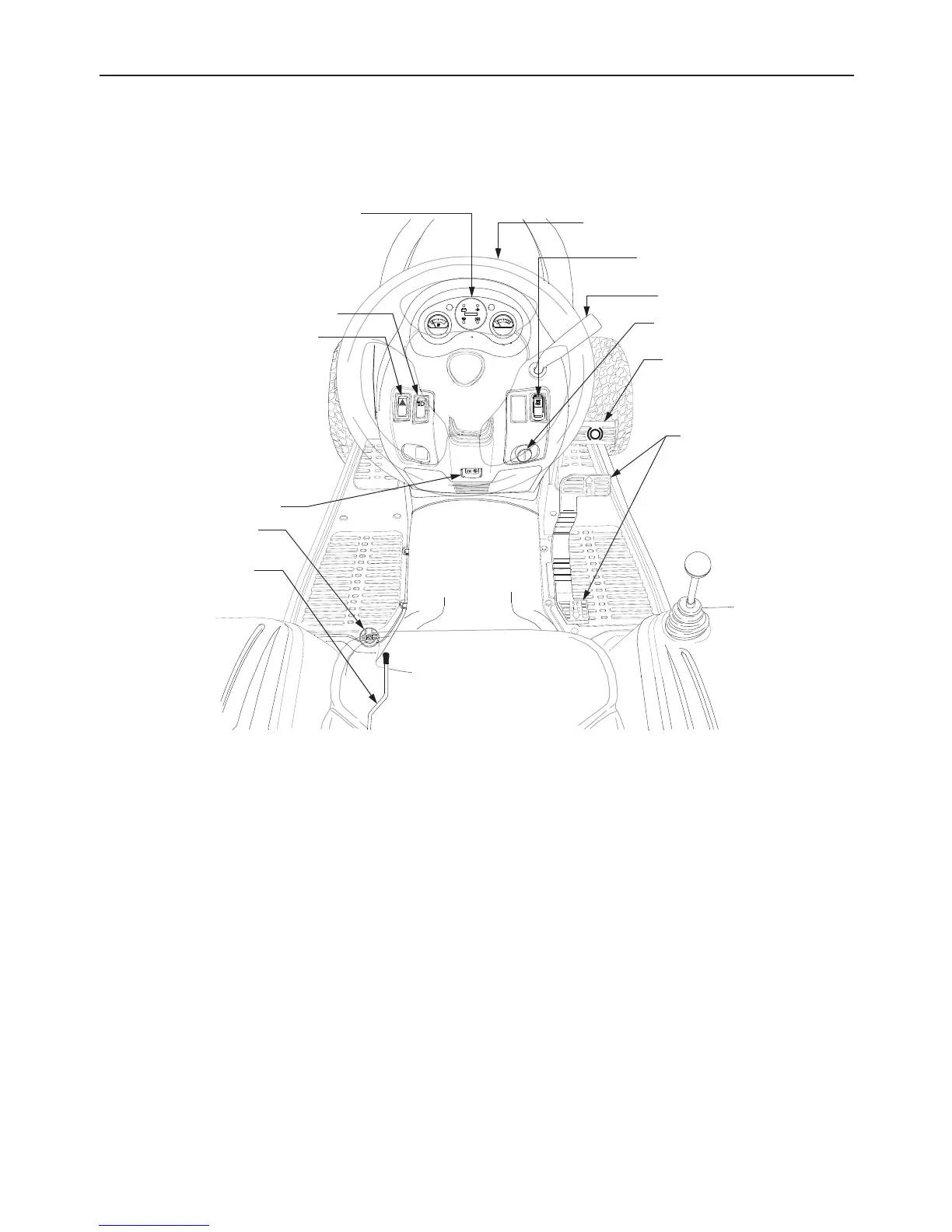

FLOORBOARD AND DASH PANEL MOUNTED CONTROLS
Figure 1
A
B
C
D
E
F
G
H
J
K
L
M
Steering Wheel
PTO Switch
Throttle Handle
Ignition Switch
Brake Pedal
Forward/Reverse Pedal
Seat Adjustment Lever
Differential Lock Pedal
Parking Brake Lever
Hazard Light Switch
Headlight Switch
Instrument Panel
* Steering Wheel and Seat Phantomed For Clarity
RPM
x1000
0
4
FUEL
E
F
HOURS 1/10
B
C
D
E
F
G
H
J
K
L
M
A
GLOW
PLUG
WATER
TEMP
.
