Now that you have set up your snow thrower for opera-
tion, get acquainted with its controls and features. These
are described below and illustrated in Figure 11. This
knowledge will allow you to use your new equipment to
its fullest potential.
NOTE: For detailed starting instructions and more
information on all engine controls, refer to the separate
engine manual packed with your unit.
Shift Lever
The shift lever is located on the right side
of the handle panel. Place the shift lever
into any of eight positions to control the
direction of travel and ground speed.
Forward
Your snow thrower has six forward (F)
speeds, with position number one (1)
being the slowest speed.
Reverse
Your snow thrower has two reverse (R)
speeds, with position number one (R1)
being the slower speed.
Know Your Snow Thrower
Choke Control
The choke control is found on the rear of the engine and
is activated by rotating the knob clockwise. Activating the
choke control closes the choke plate on the carburetor
and aids in starting the engine.
Throttle Control
The throttle control is located on the engine.
It regulates the speed of the engine and
will shut off the engine when pushed down
completely.
Primer
Depressing the primer forces fuel directly
into the engine’s carburetor to aid in cold-
weather starting.
Oil Fill
Engine oil level can be checked and oil
added through the oil fill.
WARNING
Read, understand,
and follow all instruc-
tions and warnings
on the machine and
in this manual before
operating.
Use extreme care
when handling
gasoline. Gasoline is
extremely flammable
and the vapors are
explosive. Never fuel
the machine indoors
or while the engine
is hot or running.
Extinguish cigarettes,
cigars, pipes and
other sources of
ignition.

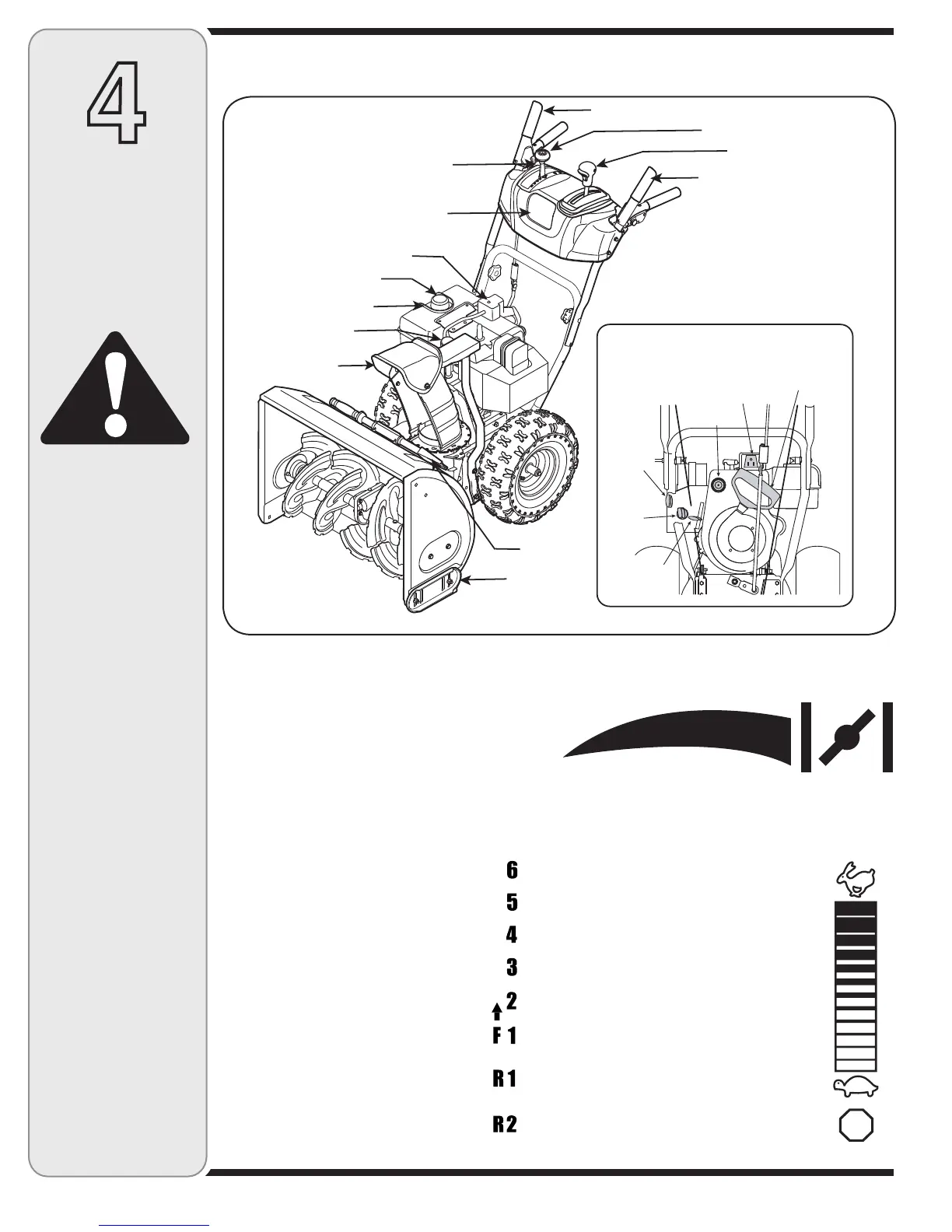

Figure 11
Engine Controls
Recoil Starter
Handle
Electric Starter Outlet
Primer
Ignition
Key
Choke
Control
Throttle
Control
Drive Control
Headlight
Fuel Tank
Gas Cap
Oil Fill
Electric Start Button
Chute
Assembly
Clean-Out
Tool
Auger Control
Shift Lever
Four-Way
Chute Control™
Skid Shoe
Heated Handles
Switch (optional)†
† If Equipped
