8
Assembly Instructions
Section 3
Assembling the Blower
Unpacking
Your unit was carefully packed at the factory to
prevent damage during shipment. Unpack the carton
carefully:
1. Remove all contents from the carton.
2. Identify parts and check them with the list of parts
in the above Carton Contents section.
3. Examine parts for damage.
4. Immediately notify your dealer if a part is missing
or damaged.

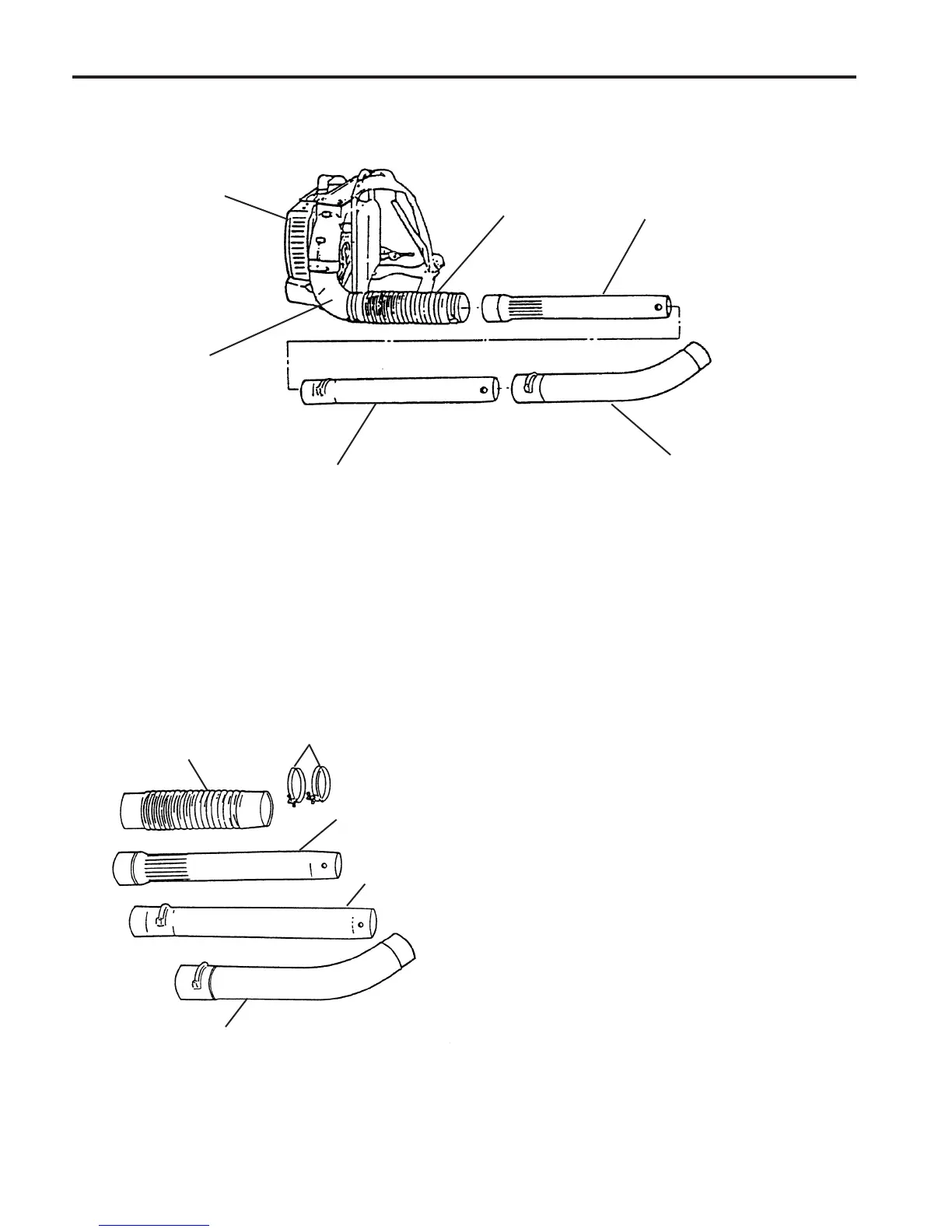

Tube Assembly
1. Place a hose clamp on each end of the flexible
tube (A).
2. Connect the flexible tube (A) to the fan’s outlet
tube (B).
3. Slide the grooved end of the base tube (C) into the
open end of the flexible tube and securely tighten
the screws on the clamps.
NOTE: The base tube is designed to swivel. This
allows you to direct air flow. To avoid the
tube slipping out, the base, middle and
bent tubes must be tightly and perfectly
inserted up to each stopper.
4. Install the middle tube (D) into the base tube, and
install the bent tube / nozzle (E) into the middle
tube.
5. Adjust the shoulder strap to fit your body
comfortably.
Carton Contents
F - Engine Assembly
1 - Hose Clamp with Screw (2)
2 - Flexible Tube
3 - Base Tube
4 - Middle Tube
5 - Bent Tube / Nozzle
A
B
C
D
E
1
2
3
4
5
F
