4 X 2 Gear Selector
22

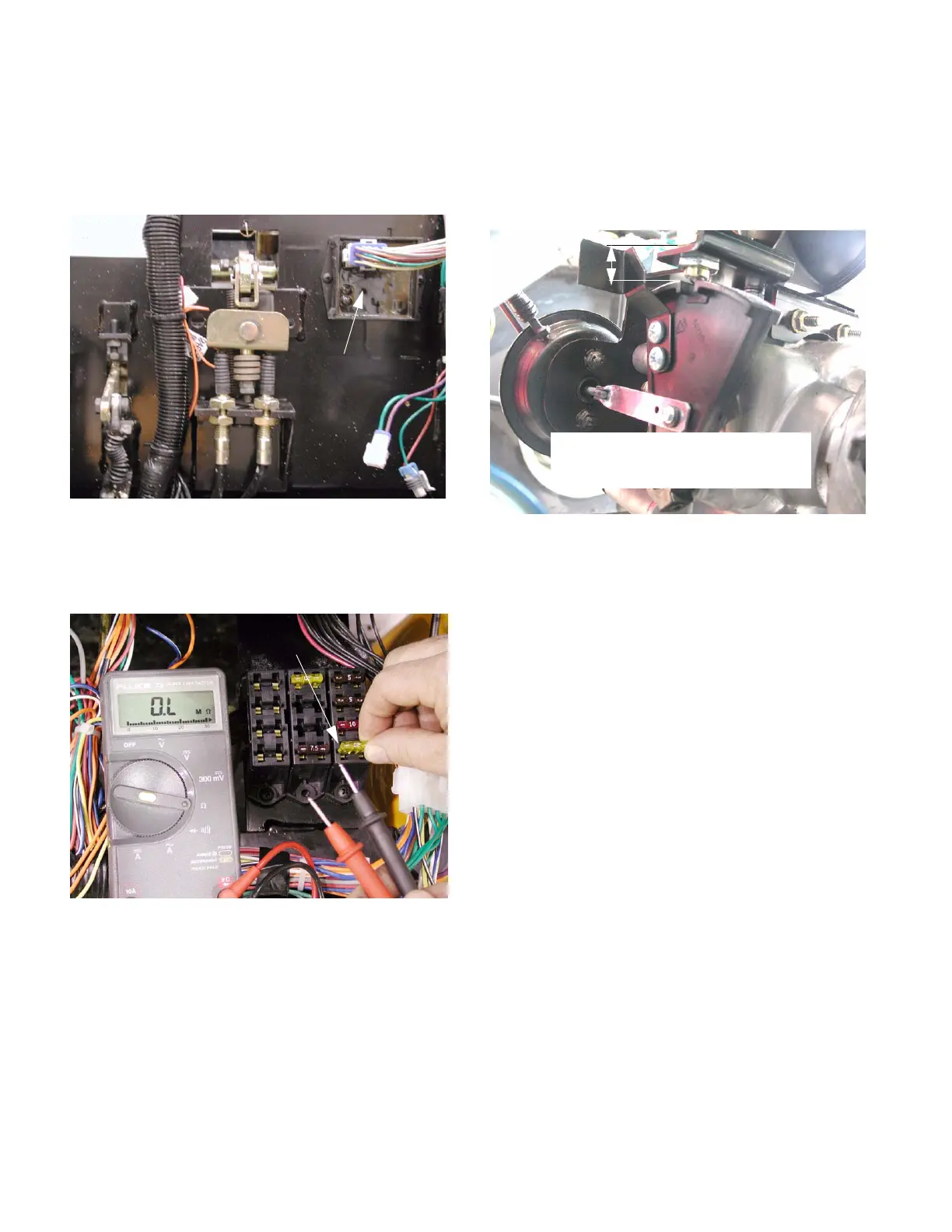

4.16. The ESM is visible on the firewall next to the
brake pedal arm. Check the harness connection
to the ESM for tightness, and check the condi-
tion of the wires leading to the ESM.
See Figure 4.16.
4.17. Check the condition of the fuse that provides
power to the gear selector system.
See Figure 4.17.
4.18. The neutral switch is visible above the shift
wedge. Check the connection for tightness, and
check the condition of the wires leading to the
neutral sensor.
4.19. Check the operation of the neutral switch. The
switch is normally closed. The contact roller
should move freely, breaking continuity when
the roller is pressed upward by the shift wedge.
Adjust or replace if necessary. See Figure 4.19.
4.20. Check the tightness of the electrical connections
to the vacuum solenoids, and check the condi-
tion of the wires leading to the solenoids.
Figure 4.16
Electronic
Shift
Module
Figure 4.17
Fuse that protects the ESM
Figure 4.19
.566” to.610 (9/16” to 5/8”) from the
bottom of the hex to the top of the
shift wedge.
