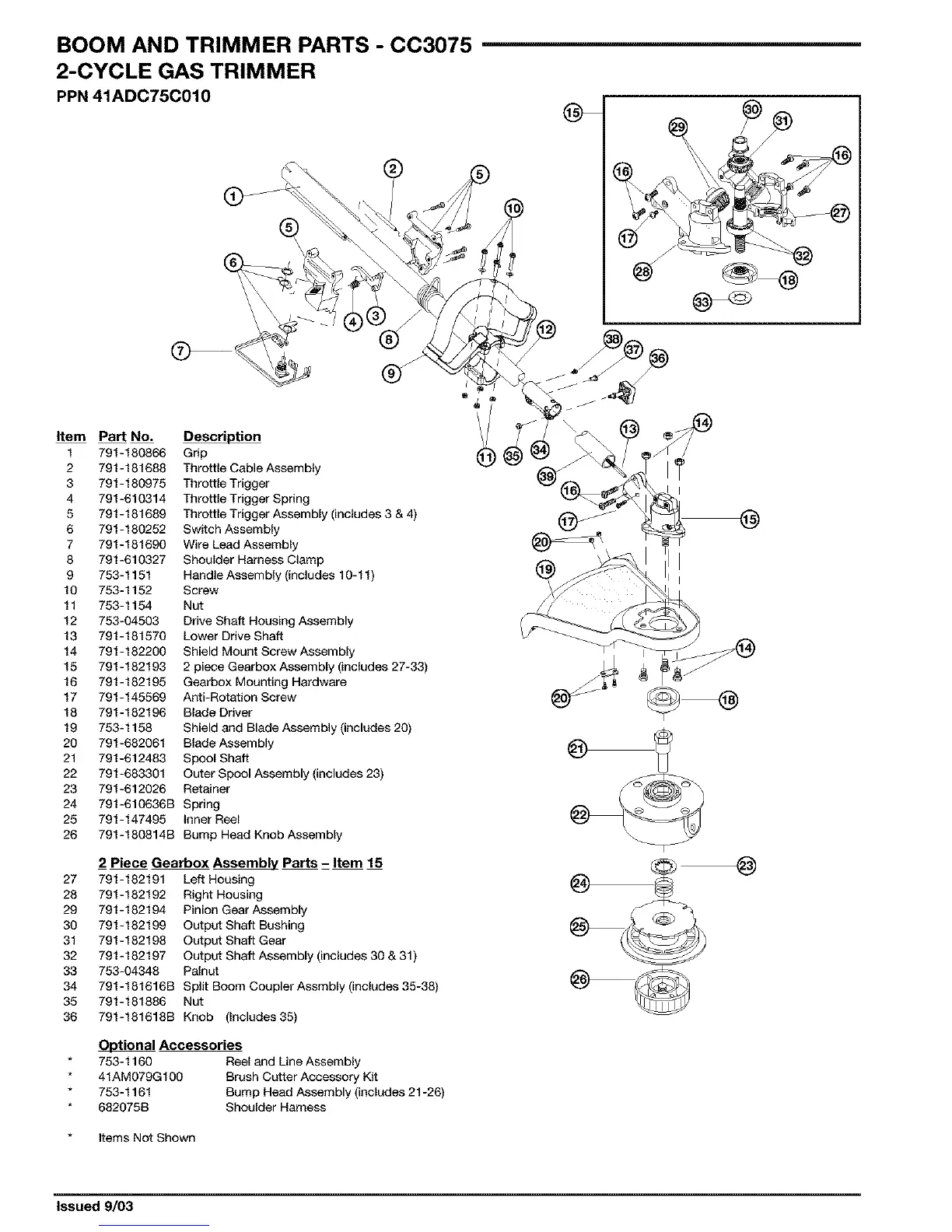

BOOM AND TRIMMER PARTS - CC3075 '
2-CYCLE GAS TRIMMER
PPN 41ADC75C010
Item Part No. Description
1 791-180866 Grip
2 791-181688 Throttle Cable Assembly
3 791-180975 Throttle Trigger
4 791-610314 Throttle Trigger Spring
5 791-181689 Throttle Trigger Assembly (includes 3 & 4)
6 791-180252 Switch Assembly
7 791-181690 Wire Lead Assembly
8 791-610327 Shoulder Harness Clamp
9 753-1151 Handle Assembly (includes 10-11)
10 753-1152 Screw
11 753-1154 Nut
12 753-04503 Drive Shaft Housing Assembly
13 791-181570 Lower Drive Shaft
14 791-182200 Shield Mount Screw Assembly
15 791-182193 2 piece Gearbox Assembly (includes 27-33)
16 791-182195 Gearbox Mounting Hardware
17 791-145569 Anti-Rotation Screw
18 791-182196 Blade Driver
19 753-1158 Shield and Blade Assembly (includes 20)
20 791-682061 Blade Assembly
21 791-612483 Spool Shaft
22 791-683301 Outer Spool Assembly (includes 23)
23 791-612026 Retainer
24 791-610636B Spring
25 791-147495 Inner Reel
26 791-180814B Bump Head Knob Assembly
2 Piece Gearbox Assembly Parts - Item 15
27 791-182191 Left Housing
28 791-182192 Right Housing
29 791-182194 Pinion Gear Assembly
30 791-182199 Output Shaft Bushing
31 791-182198 Output Shaft Gear
32 791-182197 Output Shaft Assembly (includes 30 & 31)
33 753-04348 Palnut
34 791-181616B Split Boom Coupler Assmbly (includes 35-38)
35 791-181886 Nut
36 791-181618B Knob (Includes35)
Optional Accessories
753-1160 Reel and Line Assembly
41AM079G100 Brush Cutter Accessory Kit
753-1161 Bump Head Assembly (includes 21-26)
682075B Shoulder Harness
@
