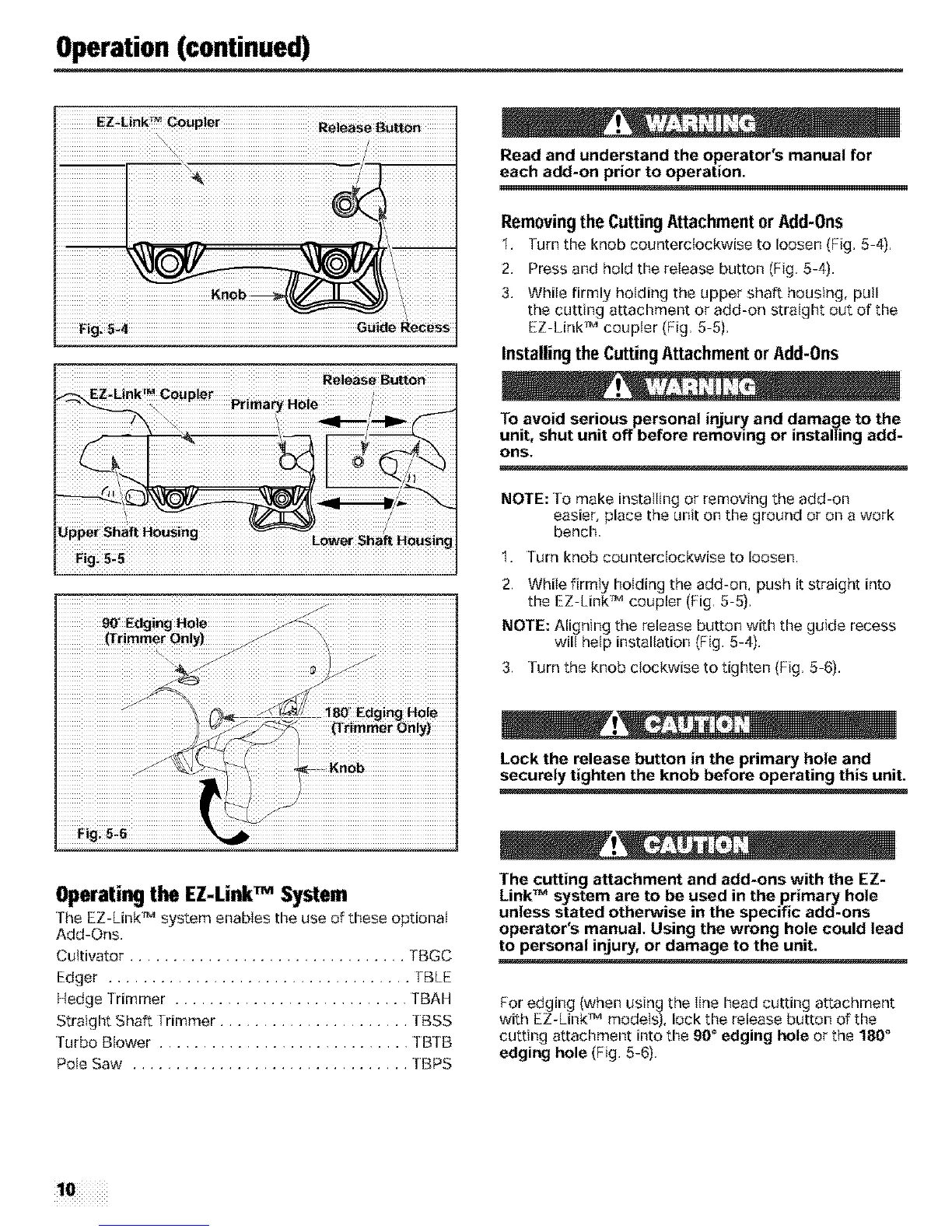

Operation(continued)
90" Edging Hole
[Trimmer Only)
%
Operating the EZ-Link"* System
lhe EZ-Link rM system enabtes the use of these optionat
Add-Qns.
Cultivator ................................ TBGC
Edger ................................... TBLE
Hedge Trimmer ........................... TBAH
Straight Shaft Trimmer ...................... TBSS
Turbo Blower ............................. TBTB
Pole Saw ................................ TBPS
Read and understand the operator's manual for
each add-on prior to operation.
Removing the Cutting Attachment or Add-0ns
1. [urn the knob counterclockwise to loosen (Fig. 5-4).
2. Press and hold the release button (Fig. 5-4).
3. While firmly holding the upper shaft housing, puil
the cutting attachment or add-on straight out of the
EZ-Link _Mcoupier (Fig. 5-5}.
Installing the Cutting Attachment or Add-0ns
To avoid serious personal injury and damage to the
unit, shut unit off before removing or installing add-
ons.
NOTE: To make installing or removing the add-on
easier, place the unit on the ground or on a work
bench.
1. Turn knob counterclockwise to loosen,
2. While firmly holding the add-on, push it straight into
the EZ-Link rM coupler (Fig. 5-5).
NOTE: Aligning the release button with the guide recess
will hetp installation (Fig. 5-4).
3. Turn the knob clockwise to tighten (Fig. 5-6).
Lock the release button in the primary hole and
securely tighten the knob before operating this unit.
The cutting attachment and add-ons with the EZ-
LinkTM system are to be used in the primary hole
unless stated otherwise in the specific add-ons
operator's manual. Using the wrong hole could lead
to personal injury, or damage to the unit.
For edging (when using the Iine head cutting attachment
with EZ-Link _Mmodels_, lock the release button of the
cutting attachment into the 90° edging hole or the 180°
edging hole (Fig. 5-6).
