Cub Cadet CC-4624V2 - Repair Parts

ohiosteel.com/partsstore OHIO STEEL INDUSTRIES 1-800-652-2321
1
4
5
6
7
8
9
10
13
14
11
12
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
2

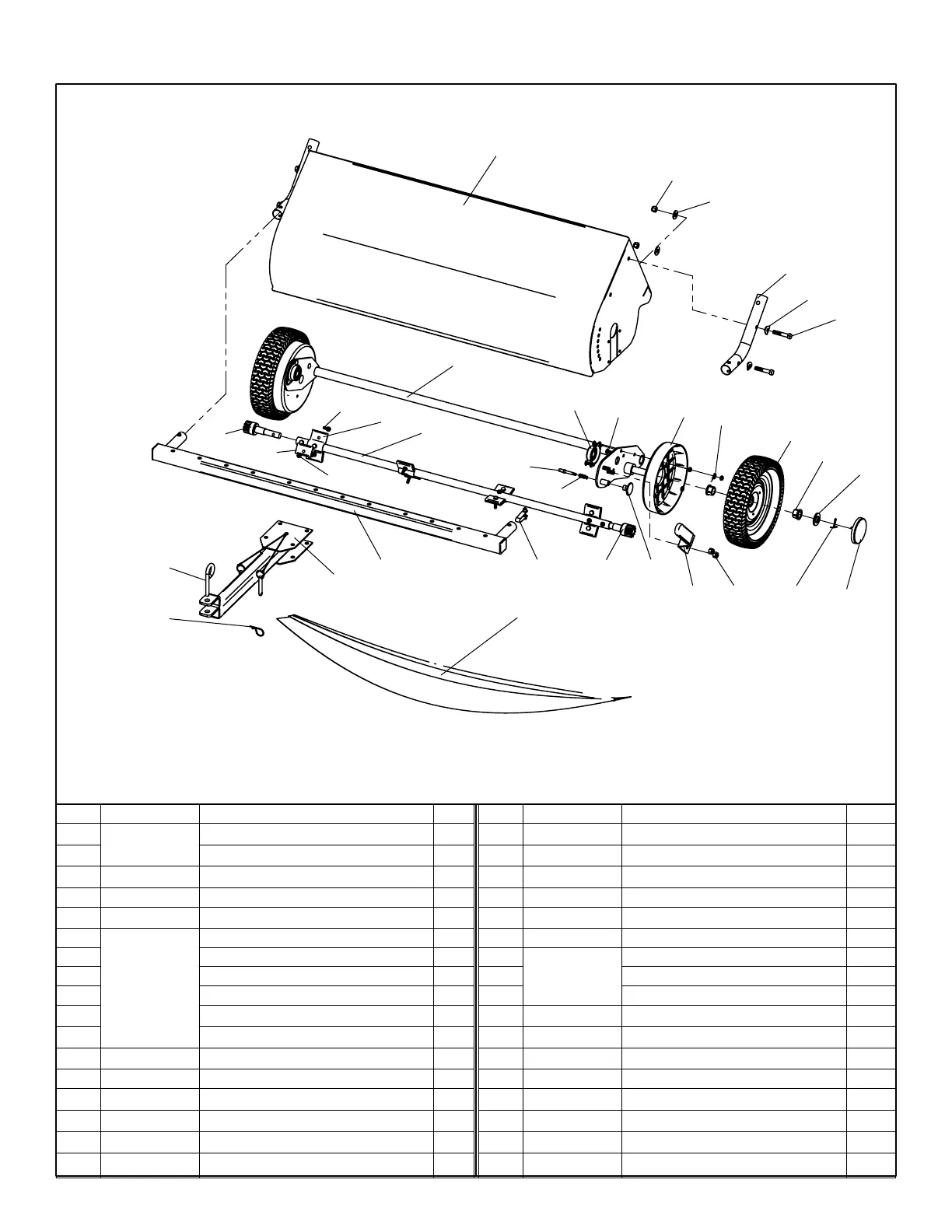

ITEM PART N0 DESCRIPTION QTY. ITEM PART N0 DESCRIPTION QTY.
1
6004352-Y1
SWEEPER HOUSING 1 19 6000540 WHEEL BUSHING 4
2 WHEEL WELDMENT 1 20 307011 WHEEL(BUSHING INCLUDED) 2
4 6000733-ZC 1/4" -20 X 1" CARRIAGE BOLT 8 21 6000539 DUST COVER 2
5 3000716-ZC WASHER, 1/4" SAE 4 22 6004023 PLUNGER KNOB 1
6 307034-B2 HITCH MOUNT TUBE 2 23 6004022 PLUNGER SPRING 1
7
KIT
6004344
3/8"-16 X 2" HEX BOLT 4 24 6004020-ZC PLUNGER PIN 1
8 CURVED WASHER, 3/8" USS 4 25
KIT
6000828
PINION ASSEMBLY, RIGHT 1
9 WASHER, 3/8" USS 4 26 PINION ASSEMBLY, LEFT 1
10 NYLOCK NUT, 3/8-16 UNC 4 27 BEARING ASSEMBLY 2
11 3" HITCH PIN 1 28 6002313-B2 SPIRAL BRUSH TUBE 1
12 HAIRPIN 1 29 307122-ZC STEEL BRACKET 4
13 6004208-B2 HITCH CROSS TUBE ASSEMBLY 1 30 307121-ZC STEEL CLAMP 8
14 6003965-B2 HITCH ASSEMBLY 1 31 300065-ZC 1/4" -20 LOCK NUT 22
15 6003957-B2 HEIGHT ADJ. HANDLE 1 32 3000539-ZC 1/4" -20 X 1-1/4" BOLT 14
16 307241 WHEEL CAP 2 33 6002314 46" SPIRAL BRUSH 2
17 300081-ZC COTTER PIN, 1/8" X 1-1/2" 2 34 6000222-ZC SNAP BUTTON 2
18 3000721-ZC WASHER, 3/4" SAE 2 35 3000618-ZB NYLOCK NUT, 3/8-16 UNC 2
