Assembly & Set-Up
3
9
Mower Set-Up
Shipping Brace Removal
WARNING! Make sure the lawn mower’s engine is
OFF. Remove the ignition key (if equipped) before
removing the shipping brace.

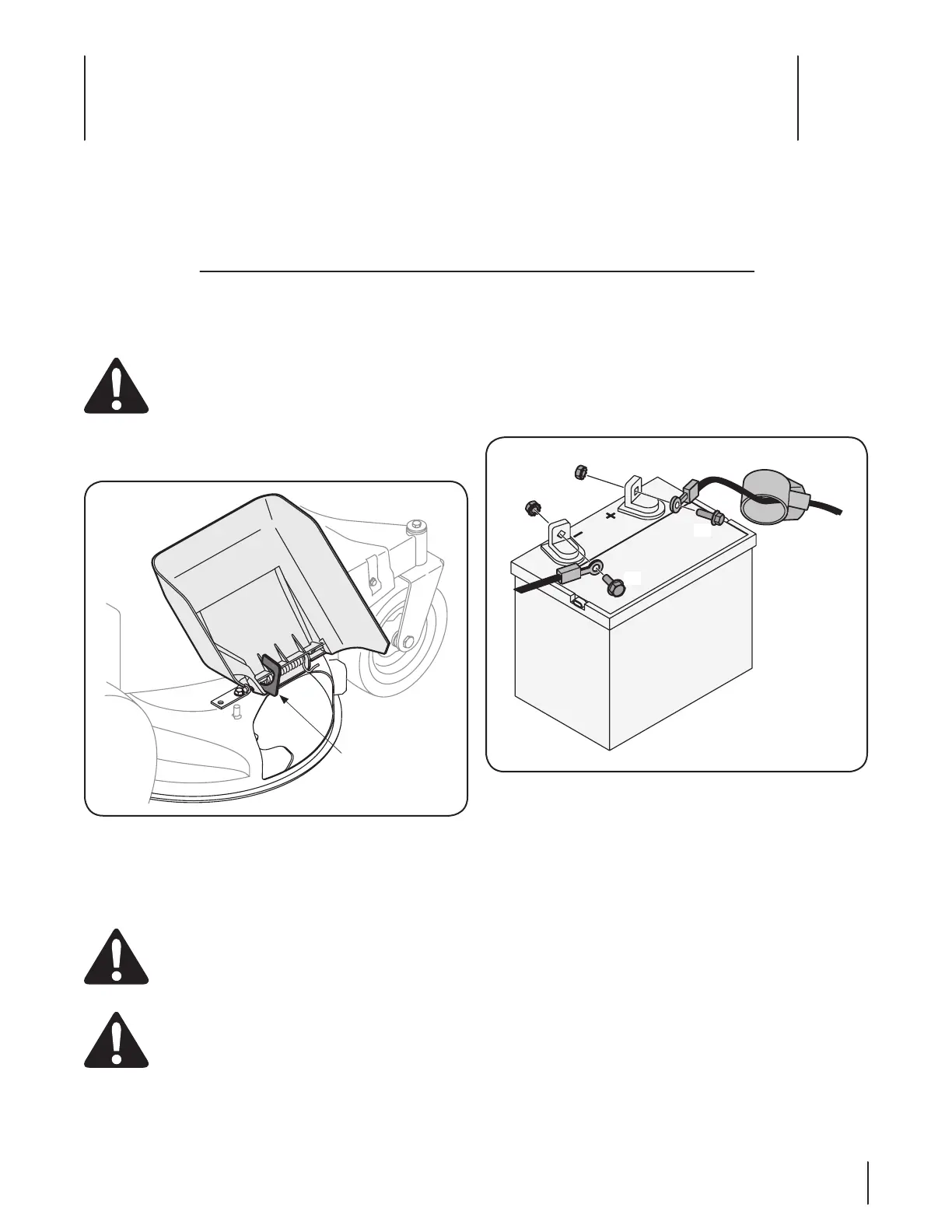

1. Locate the shipping brace, if present, found on the right
side of the cutting deck. See Figure 3-1.
Figure 3-1
2. While holding the discharge chute with your left hand,
remove the shipping brace with your right hand by
grasping it between your thumb and index finger and
rotating it clockwise.
WARNING! The shipping brace is used for
packaging purposes only. Remove and discard the
shipping brace before operating your lawn mower.
WARNING! The mowing deck is capable of
throwing objects. Failure to operate the mower
without the discharge cover in the proper operating
position could result in serious personal injury and/
or property damage.
Attaching the Battery Cables (Electric Start Models)
NOTE: The positive battery terminal is marked Pos. (+). The
negative battery terminal is marked Neg. (–).
1. Attach the red cable to the positive(+) battery terminal and
the black cable to the negative (–) battery terminal with the
bolts (a) and hex nuts (b) attached to the battery cables.
See Figure 3-2.
Figure 3-2
IMPORTANT: Make certain the hold-down rod is in position over
the battery, securing it in place and make certain that the red
rubber boot covers the positive battery terminal to help protect
it from corrosion.
NOTE: If the battery is put into service after the date shown
on top/side of battery, charge the battery as instructed in the
Service section of this manual on page 24 prior to operating
the mower.
Contents of Crate
• Lawn Mower (1) • Oil Drain Hose (1) • Key (1)
• Lawn Mower Operator’s Manual (1) • Engine Operator’s Manual (1)
