8-7 Periodic Maintenance and Adjustment
Hood
To Open

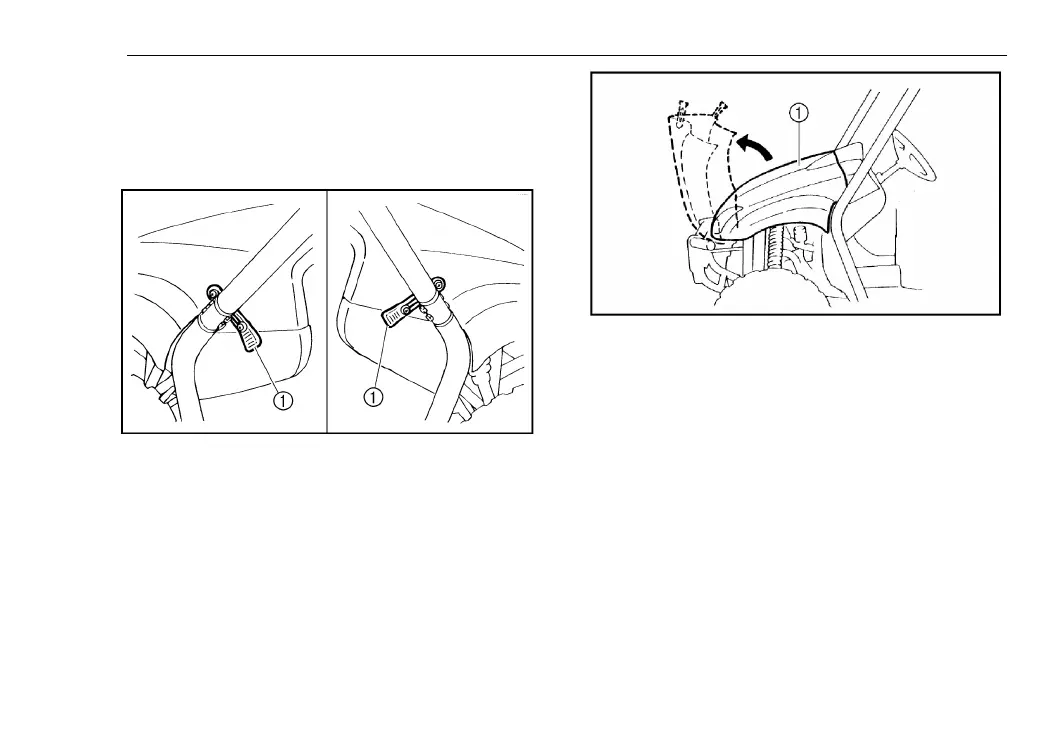

Unhook the hood latches, and then slowly tilt
the hood up until it stops.
1. Latch(×2)
1. Hood
To Close
Lower the hood slowly to its original position,
and then hook the hood latches.
Secure projections on the underside of ①
the hood into slots on the back of the ②
instrument panel. Secure slots on the side ③
of the hood around projections on the ④
frame.
To Next Page
