Periodic Maintenance and Adjustment 8-32

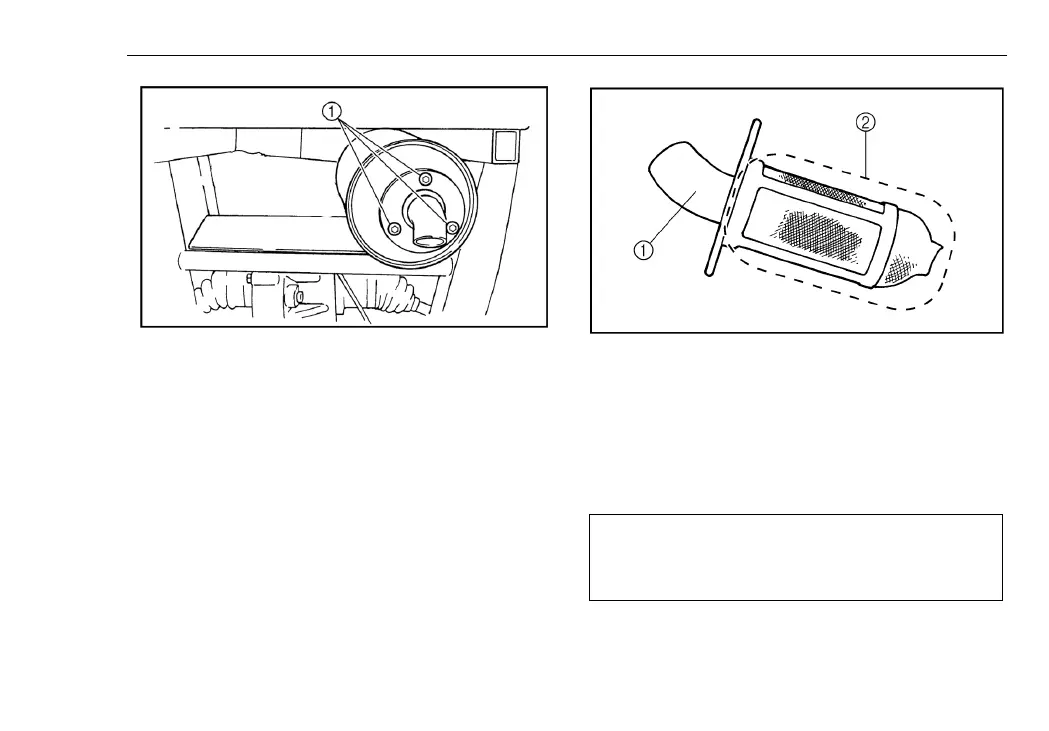

1. Bolt(×3)
2.Remove the tailpipe by pulling it out of
the muffler.
3.Tap the tailpipe lightly, and then use a
wire brush to remove any carbon deposits
from the spark arrester portion of the
tailpipe and inside of the tailpipe housing.
1. Tailpipe 2. Spark arrester
4. Insert the tailpipe into the muffler and
align the bolt holes.
5. Install the tailpipe by installing the bolts,
and then tighten the bolts to the specified
torque.
Tightening torque:
Tailpipe bolt:
9.5 Nm(0.95 m·kgf, 6.9 ft·lbf)
