Periodic Maintenance and Adjustment 8-38
1.

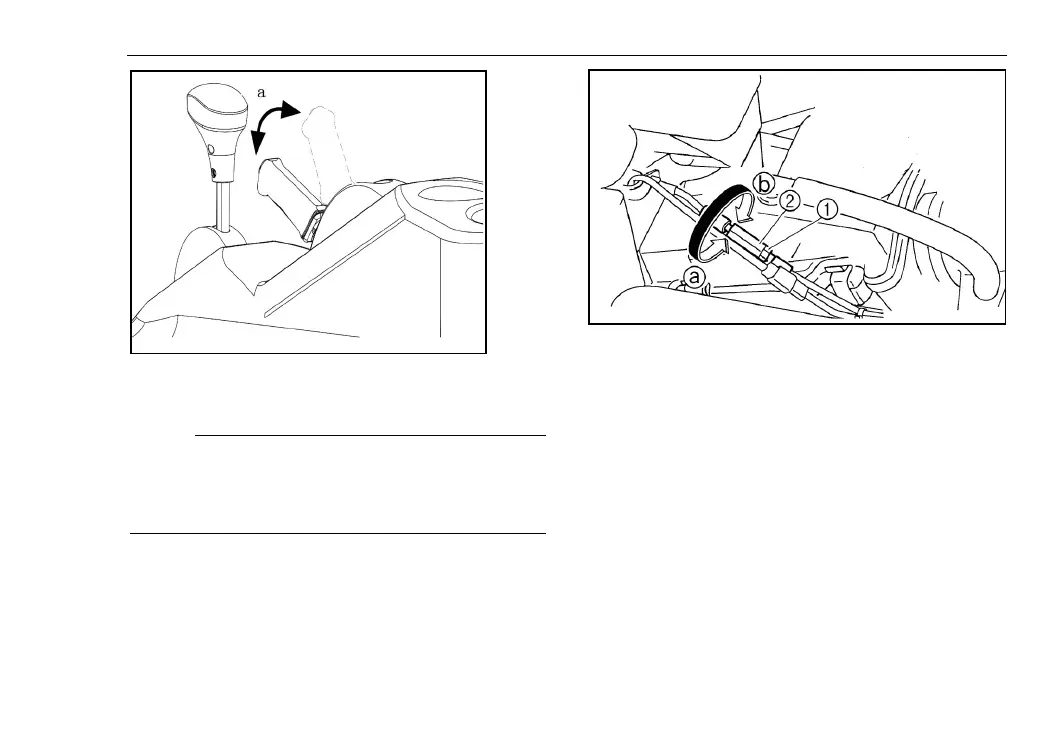

Parking brake lever free play
NOTE:
The parking brake lever must be released
when checking and adjusting the parking
brake lever free play.
5. Loosen the locknut.
1. Locknut 2. Adjusting nut
6. Turn the adjusting nut in direction ⓐ to
increase the free play or in direction ⓑ
to decrease the free play.
7. Tighten the locknut.
8. Install the console.
9. Install the seats.
