Periodic Maintenance and Adjustment 8-46
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off the
electrical circuit in question.
2. Remove the hood opening, then unplug
the relay assembly and open the relay
cover.

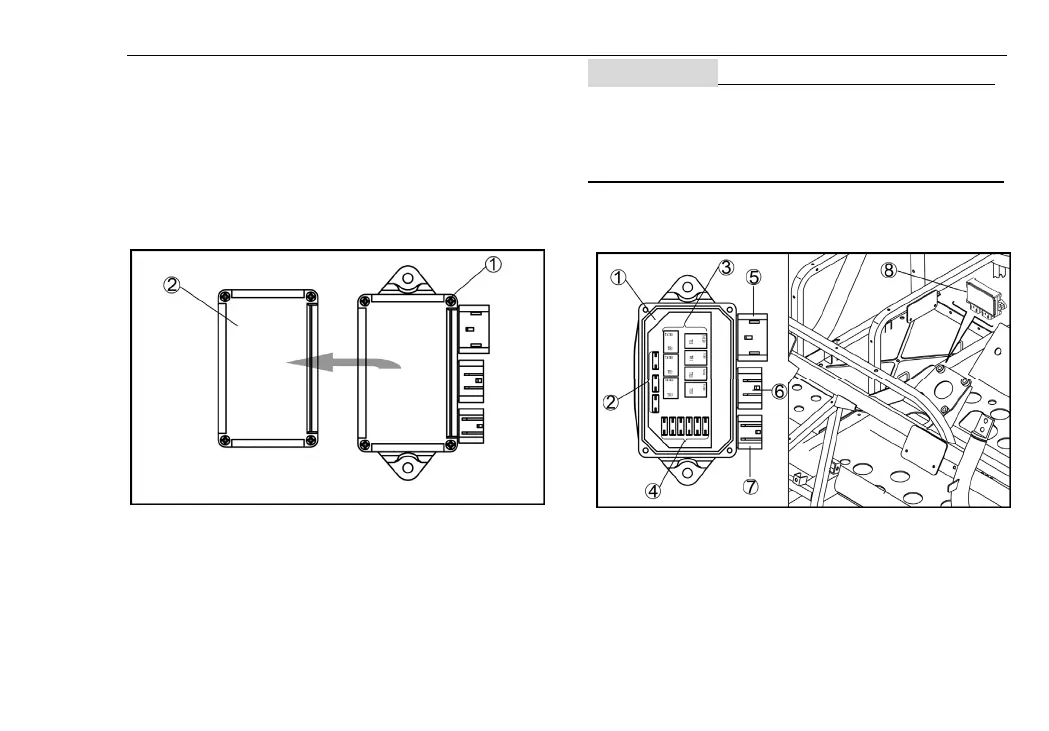

1. Screw M3 （×4） 2. Relay cover
CAUTION:
To prevent accidental short-circuiting, turn off
the main switch when checking or replacing
a fuse.
3. Remove the blown fuse, and then install
a new fuse of the specified amperage.
1. Relay assembly 2. Backup fuse
3. Relay 4. Fuse box
5. Adapter connector 3 6. Adapter connector 2
7. Adapter connector 1 8. ECU
To Next Page
