Control Functions 4-17

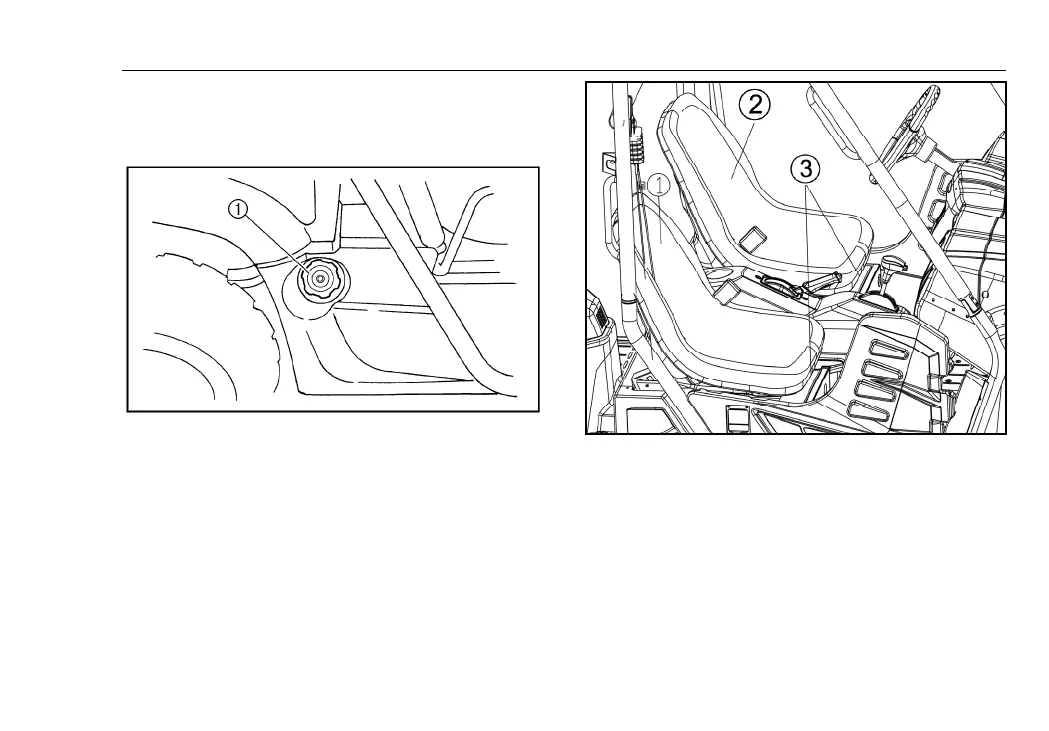

Fuel tank cap
Remove the fuel tank cap by turning it
counterclockwise.
1. Fuel tank cap
Front Seats
To remove a seat, pull its seat lock lever
upward, lift the front of the seat, and then
slide the seat forward and up.
1. Passenger seat 2. Driver seat
3. Seat lock lever (×2)
To install a seat, insert the projection on the
rear of the seat into the seat holders and
push down on the seat at the front.
