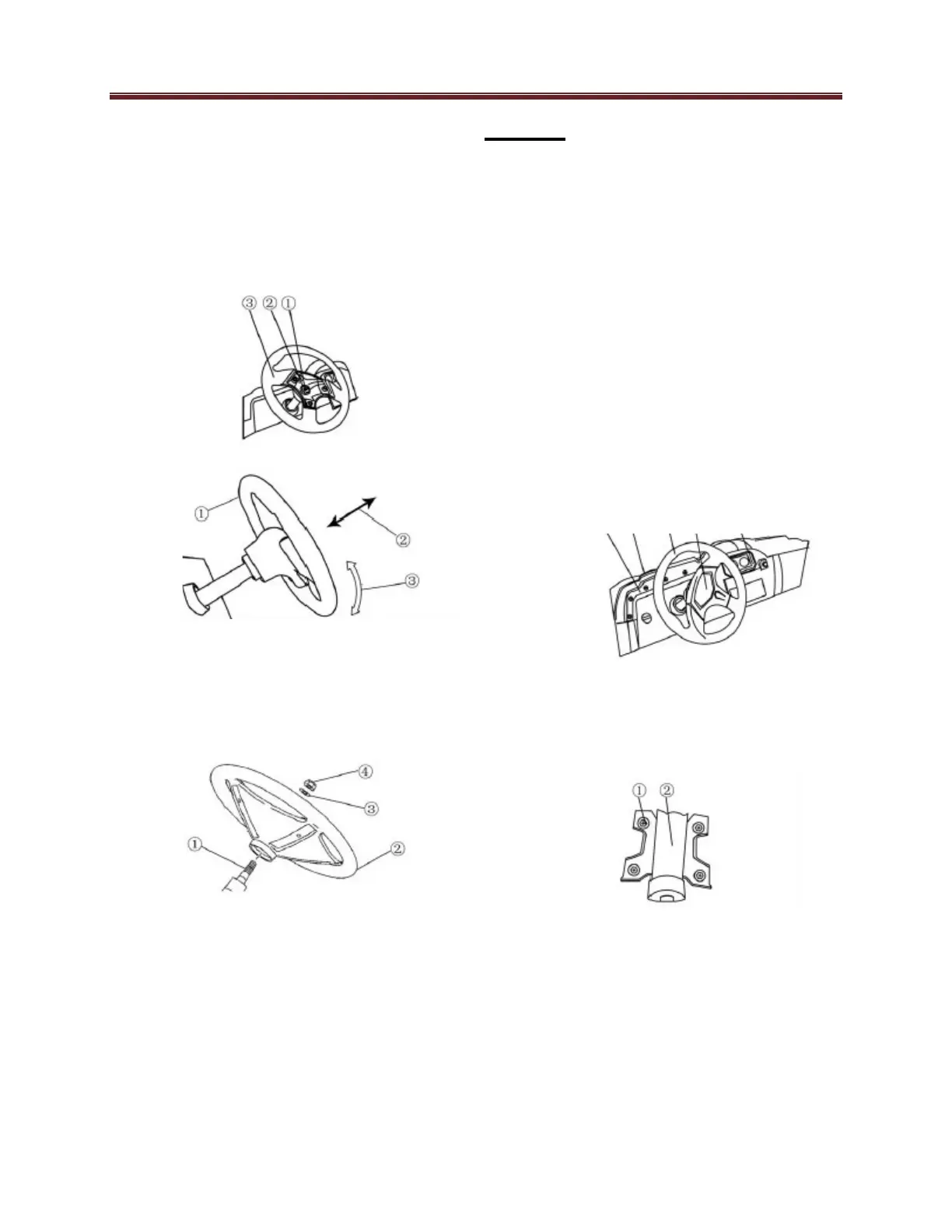

Disassembly of the steering wheel
assembly
1. Remove
 Plastic center cap (1)
 Flange nut, washer (2)
 Steering wheel (3)
2. Inspect
 Steering shaft (1)
 Steering wheel (2)
 Washer (3)
 Flange nut (4)
Inspect the splines on the steering shaft
and steering wheel. Look for damage or
wear.
Inspect the steering wheel for damage or
wear to the wheel covering.
This is a safety area, and any damage
or wear needs to be repaired
immediately.
Warning:
This is a safety area, and any damage
or wear needs to be repaired
immediately.
Do not let vehicle leave without proper
repairs being performed.
Disassembly of the steering column
assembly
1. Remove
 Steering wheel center cap (1)
 Steering Wheel (2)
 Display board (3)
 Dashboard attachment cover
(4)
 Dashboard (5)
4 5 2 1 3
 4, 8mm X 16mm bolts (1) that
attach steering column (2) to
the frame.
2. Inspect
 Steering column tube (1)
 Bearing (2)
 Bearing fitment of the steering
shaft (3)
 Splines (4)
