Electrical
6‐9

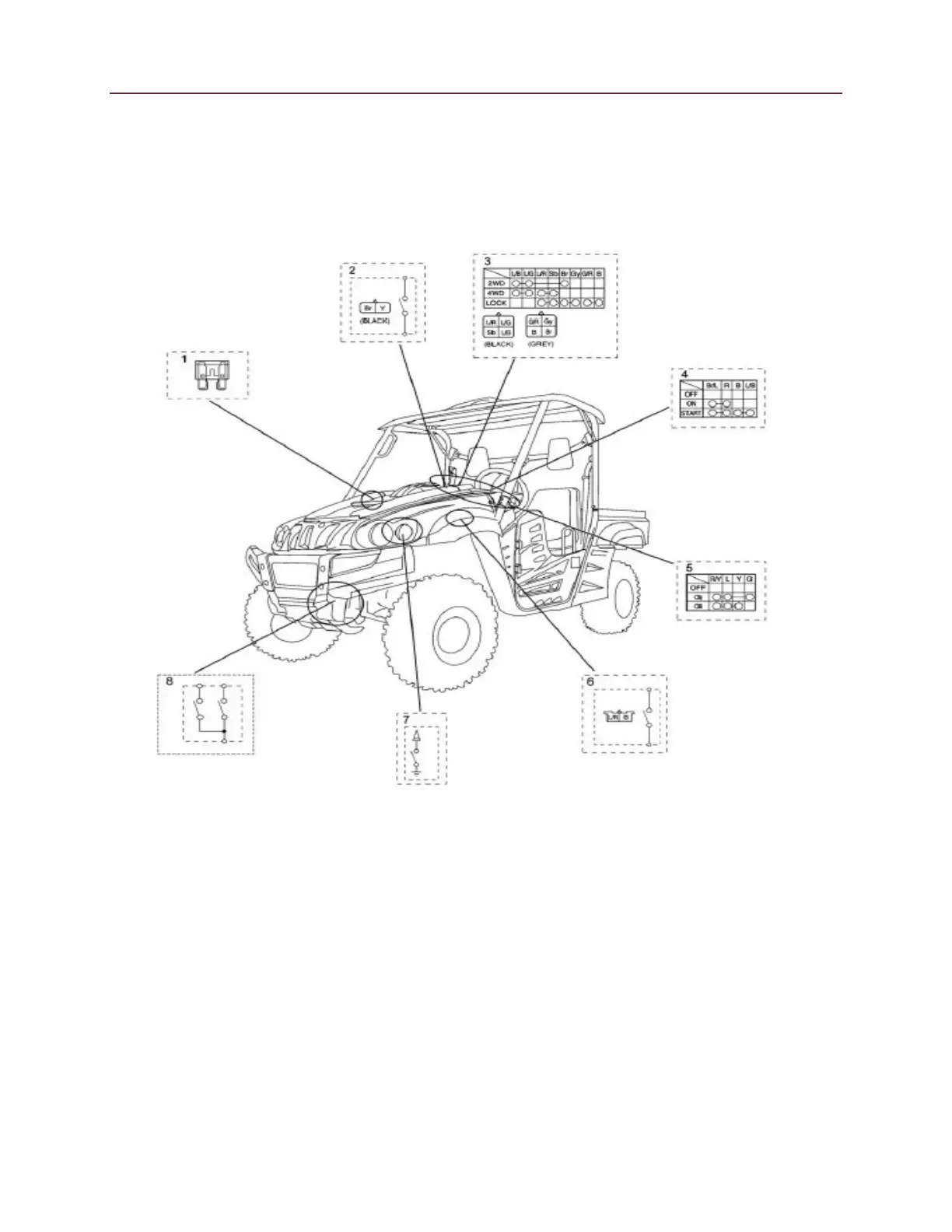

Checking the Switch Continuity
Refer to “CHECKING THE SWITCH” and check for continuity between lead terminals.
Poor connection, no continuity, correct or replace.
*
The coupler locations are circled.
1.
Fuse
2.
Brake light switch
3.
On-Command four-wheel drive switch and differential gear lock switch
4.
Main switch
5.
Light switch
6.
Parking brake switch
7.
Reverse switch
8.
Four-wheel drive switch
