ASSEMBLY AND OPERATING INSTRUCTIONS

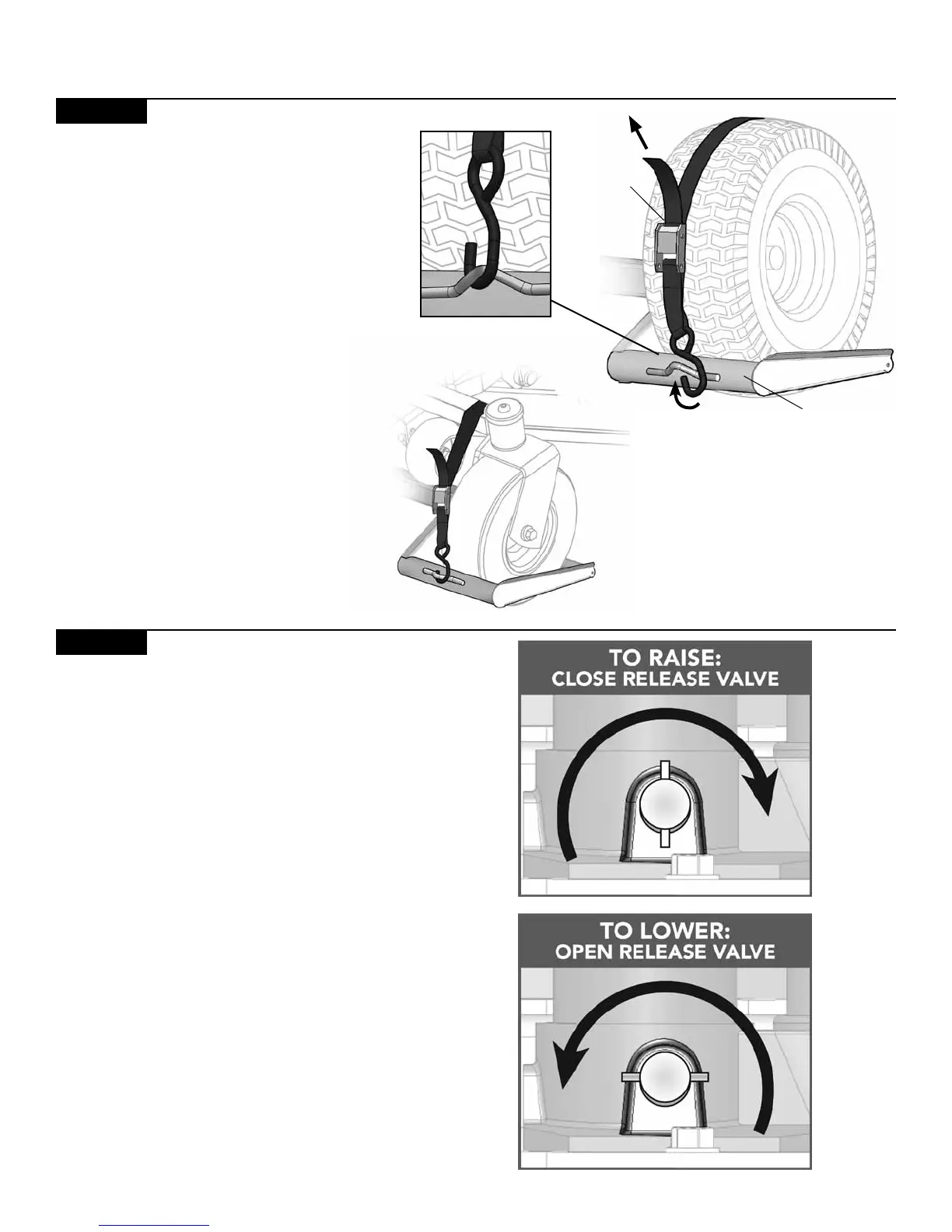

Operating the hydraulic cylinder.
To raise the lift: Close the release valve.
Turn Release Valve clockwise to CLOSE.
Rotate clockwise until the Release Valve stops
turning without effort. DO NOT over tighten
the Release Valve.
To lower the lift: Open the release valve.
Turn Release Valve counterclockwise to OPEN.
WARNING! Only requires 1/2 a turn before
pressure begins to release. DO NOT overturn
the Release Valve or the valve screw will come
out and spill hydraulic fluid.
NOTE: Please refer to the Maintenance page
of this manual if hydraulic fluid spills from the
cylinder.
Safety Strap
Wheel Pad
STEP 7
STEP 6
Secure the front mower tires to the Wheel Pads
using the Safety Straps.
Extend the Safety Strap over the top of tire or
over the top of mower wheel arm and secure the
hook into the loop on the wheel pad.
Squeeze the metal buckle and pull end of strap
to tighten the Safety Straps over the top of the
tires to secure mower to Wheel Pads.
NOTE: Wheel Pads accommodate wheel sizes
from 10” - 17” (25cm - 43cm).
NOTE: Inspect Safety Strap for wear before
each use.
