ASSEMBLY AND OPERATING INSTRUCTIONS

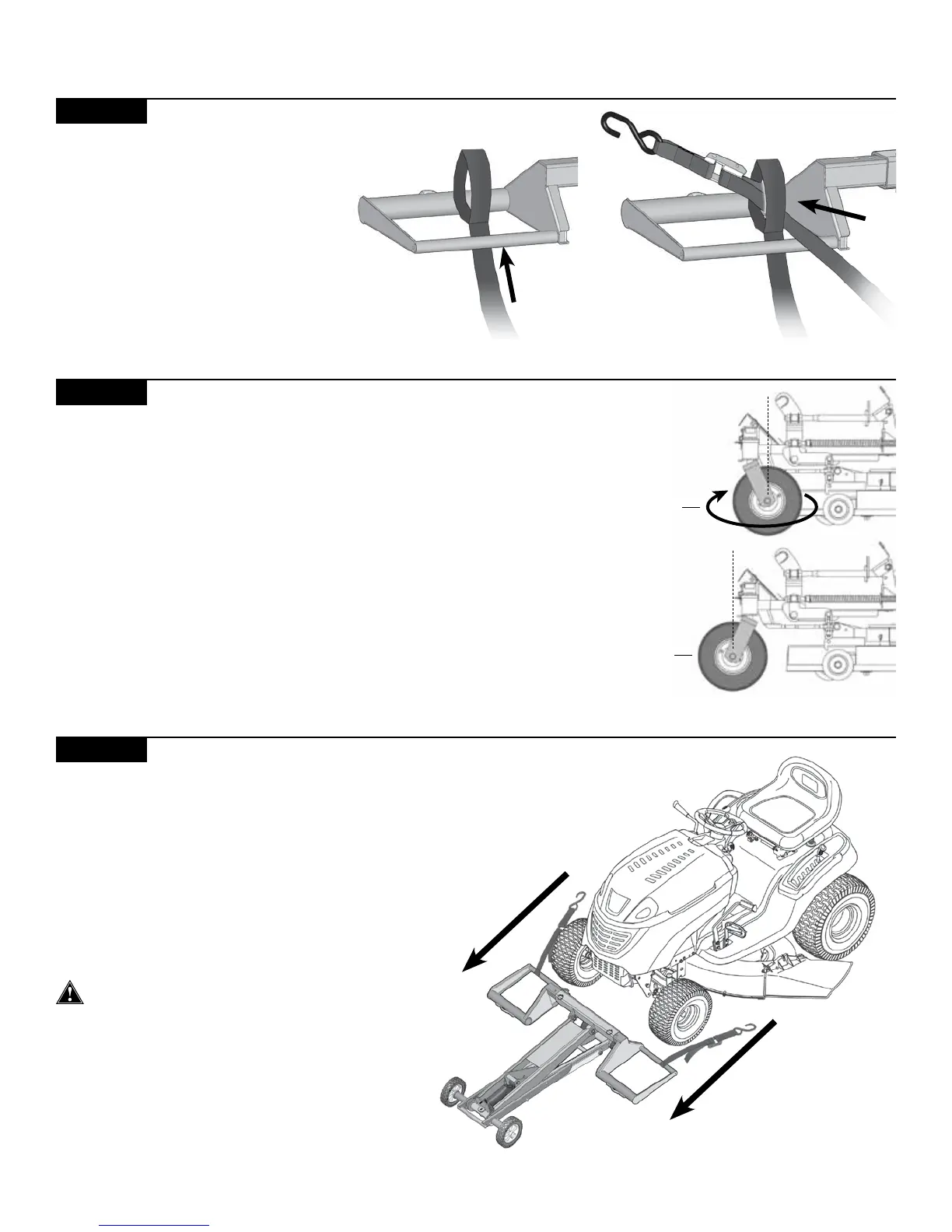

STEP 3
Attach the Safety Straps to the
wheel pads.
Insert the strap loop through the
wheel pad around the smaller wheel
pad tube. Thread strap hook and
buckle through the strap loop and
pull until tight. Repeat with the other
Safety Strap and wheel pad.
STEP 5
NOTE: If the lift slides when moving the
mower onto the Wheel Pads, place Wheel
Chocks behind the lift’s wheels to
prevent it from sliding.
Jack MUST be on a hard solid level surface.
Move the mower onto the Wheel Pads.
Wheel Pads must be properly aligned with
the mower’s front tires (see Step 2) and
secured with Push Pins.
NOTE: Wheel pads will accommodate
10” -17” tire sizes.
STEP 4
Reverse Front Tires of ZTR Mower (optional – if not applicable,
skip to Step 5)
In some cases, the mower deck or anti-scalping wheels will hit the
Lift Arm while the mower is being raised. This is often the case if
part of the deck (including the anti-scalping wheels) protrudes past
the center line of the front wheels of the mower. If this happens:
• Rotate the front tires 180° so that they are in the reverse position.
• Slide the lift as close to the wheels as possible.
Reverse
Wheel
Position
Forward
Wheel
Position
To Next Page
