ASSEMBLY AND OPERATING INSTRUCTIONS
STEP 1
Remove lift from package.
Inventory items to be certain all
parts and hardware are present.
If you have any questions regarding
assembly, please call Customer
Service at 1-877-575-3173.
Identify the Right and Left Wheel Pads.
IMPORTANT: The Wheel Pads are
side specific.
STEP 2

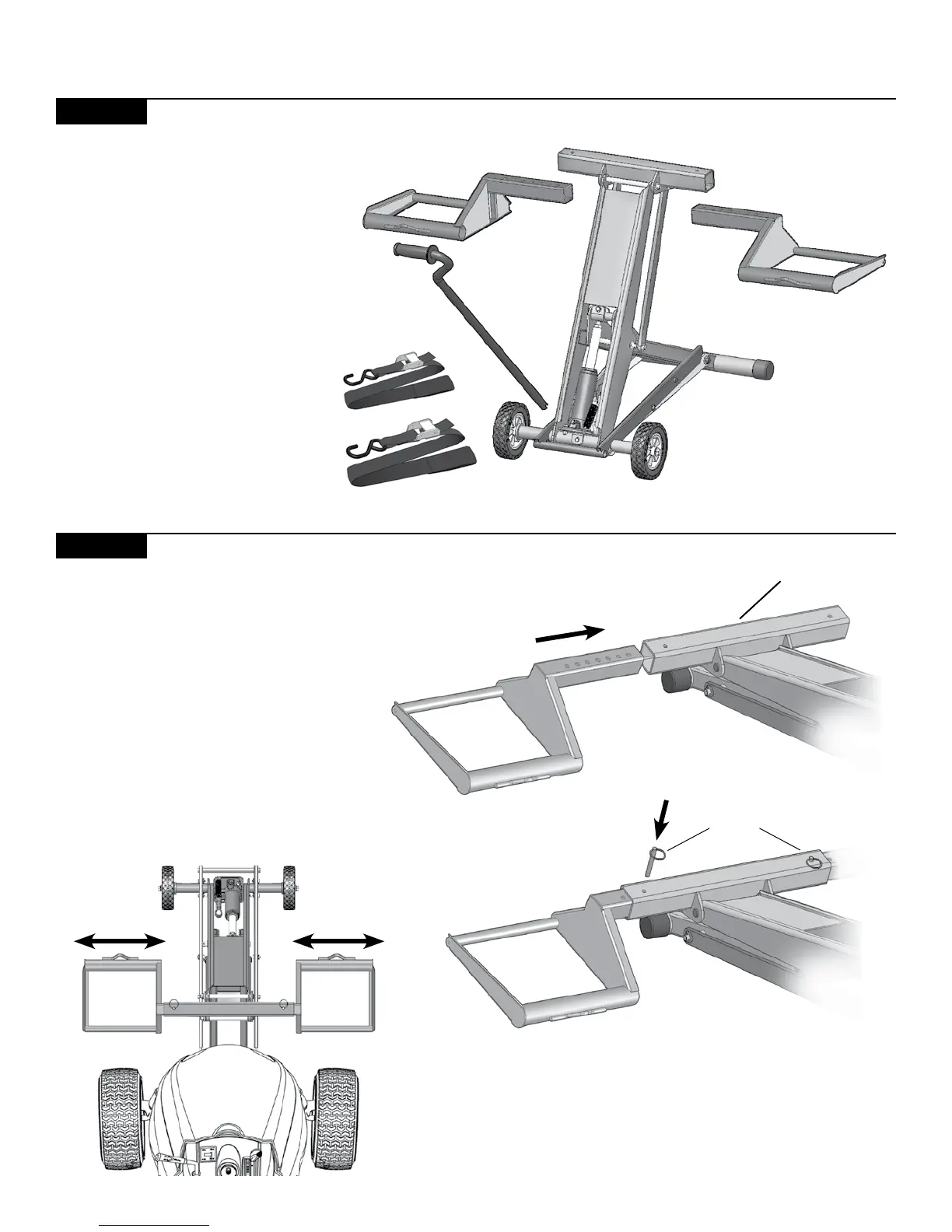

Slide the wheel pads into the T-Bar.
Line up the wheel pads to the front
tires of the mower.
The multiple holes allow for adequate
adjustment to fit the front tires of the
mowers.
NOTE: Inside to outside wheel pad
expansion is 18.5” – 47.5”
Secure the wheel pads to the T-Bar with the Push Pins.
Make sure the Push Pins are securely inserted into the holes.
NOTE: Wheel pads must be equal distance from the T-Bar to
maintain proper balance.
Push Pin
T-Bar
To Next Page
