Assembly & Set-Up
3
7
Contents of Carton
One Chipper Shredder• One Operator’s Manual• One Engine Operator’s Manual•
One Tow Bar• One Bag• One Safety Glasses•
One Bottle of Oil•
Assembly
NOTE: This unit is shipped without gasoline or oil in the engine.
Fill up gasoline and oil as instructed in the accompanying engine
manual BEFORE operating your chipper shredder.

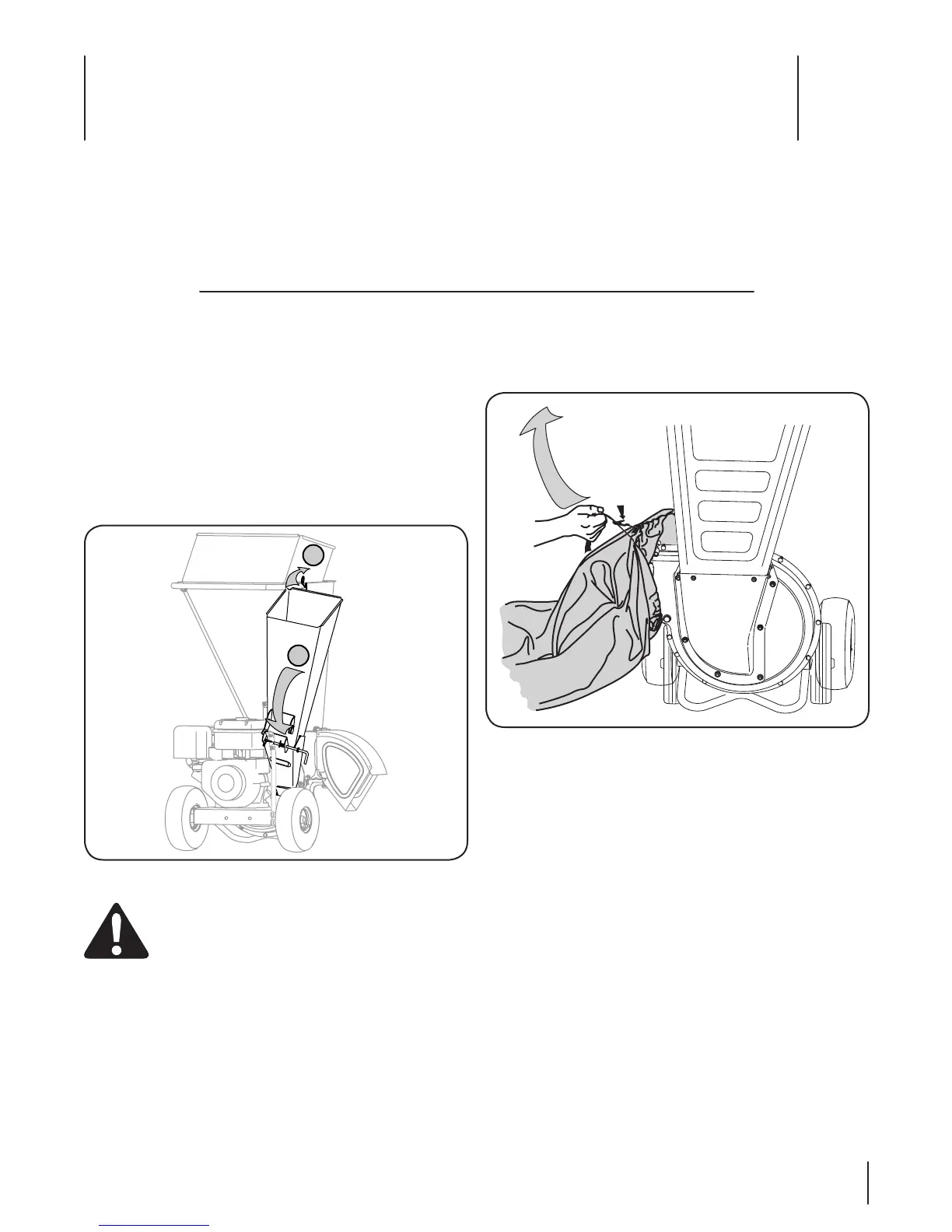

Chipper Chute (Model Series CS 3210 Only)
For shipping reasons, the unit is crated with its chipper chute in a
raised position. To pivot it downward, proceed as follows:
Pull the spring latch upward.1.
Gently pivot the chipper chute down until it clicks into the 2.
lock rod. See Fig. 3-1.
Never operate the chipper shredder
with the chipper chute in the raised position. Doing
so may result in property damage or serious injury
to the operator or bystanders.
Bag
To attach the bag:
Place the opening of the bag completely over the chute 1.
deflector. See Fig. 3-2.
Position the bag so that the wing knobs which secure the 2.
chute deflector to the impeller housing are completely
covered.
Pull on the draw-strap until the bag is tight around chute 3.
deflector opening.
