Check the chain tension frequently when operating
the chain saw. Always use protective gloves.
Fitting the Bar & Chain
Section 3
1
2
3
4

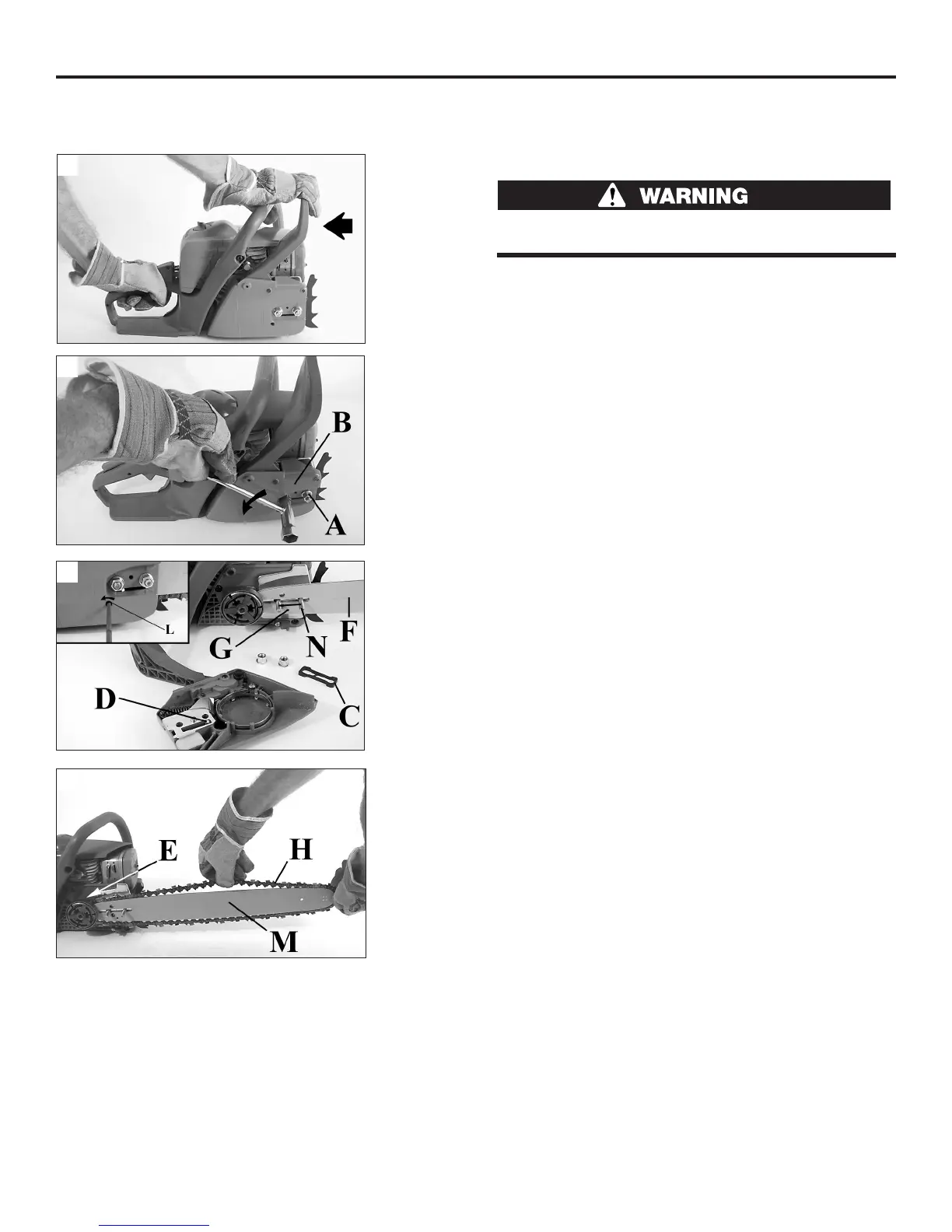

With the engine off, follow the ensuing instructions:
• Pull the guard (Fig. 1) towards the front handle to
check that the chain brake is not on.
• Remove the bar nuts (A) and the chain cover (B, Fig. 2).
• Remove and discard the plastic shim from the bar
studs (C, Fig. 3).
• Take the chain tightener pawl (D, Fig. 3) to the limit
stop, by unscrewing all the chain tightener screw (L).
• Place the bar (F, Fig. 3) onto the studs (N).
• Fit the chain (H, Fig. 4) inside the sprocket (E) and the
bar groove (M).
NOTE: Pay attention to the direction of rotation of
the chain (Fig. 6).
