Assembly & Set-Up
2
3

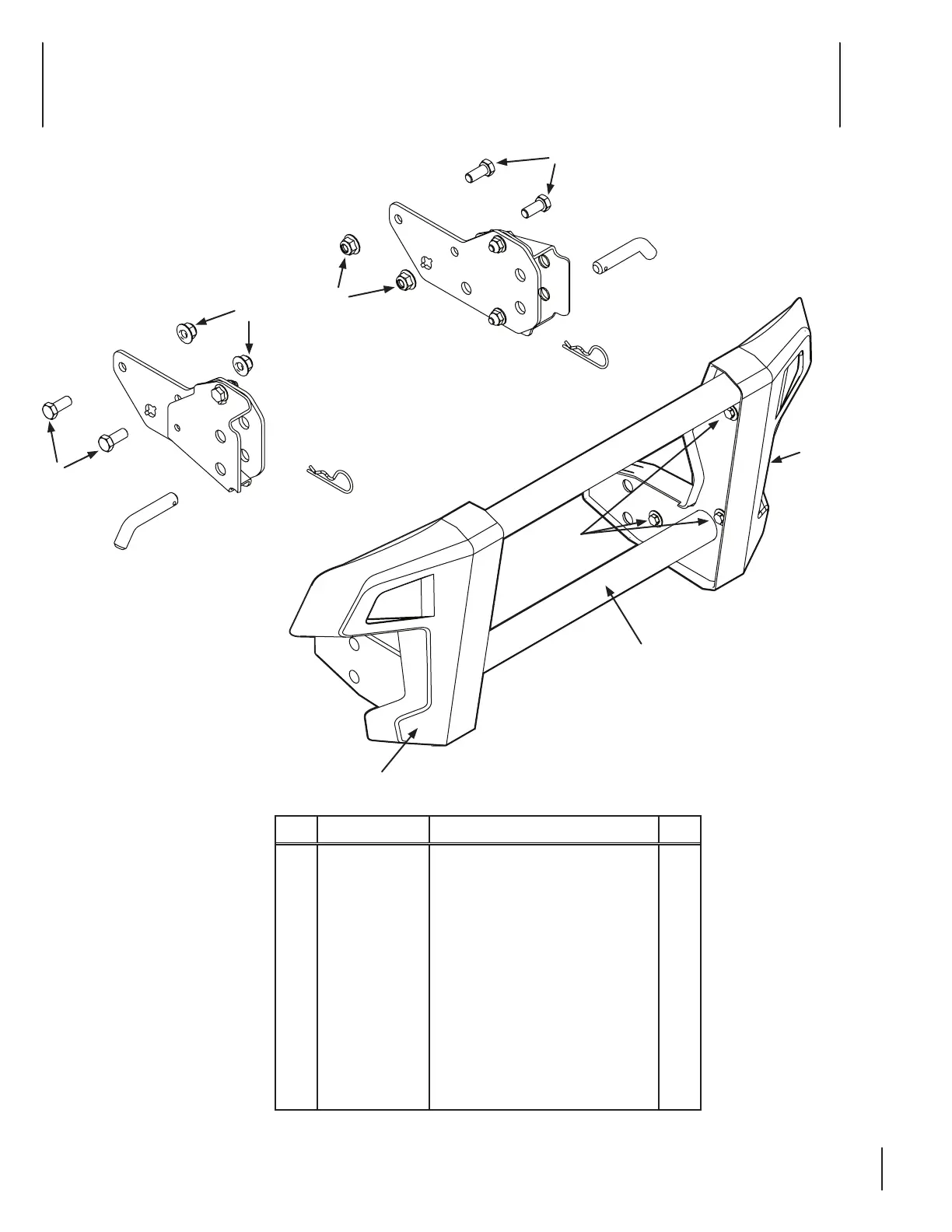

Contents of Carton
1
6
2
3
10
10
8
8
7
9
7
4
5
9
Part Number Description Qty.
1 689-00618 Brush Guard Assembly 1
2 731-13094 Guard, Fascia RH 1
3 731-13095 Guard, Fascia LH 1
4 689-00686 Bracket Assembly, Front RH 1
5 689-00685 Bracket Assembly, Front LH 1
6 710-04995A Screw, 5/16-14 X .750 6
7* 747-06963 Pin, 0.500 X 1.70 2
8* 714-3020 Internal Cotter Pin 2
9* 710-3001 Screw 3/8-16 X .880 GR5 4
10* 712-04065 Nut 4
-* 710-06012A Fixing Bolt 3/8-16 X .125 GR5 4
* Included In Hardware Pack 689-00687
