Then route the belt around the two deck idler pulleys as 6.
shown in Fig. 7-8.
Retighten the belt keeper rod loosened earlier.7.
Remount the belt guards removed earlier.8.
Re-install the deck making sure the belt remains routed 9.
around the pulleys as instructed.
Pull the right side of the belt and place the narrow V side of 10.
the belt into the PTO pulley. See Fig. 7-9.
While holding the belt and pulley together, rotate the 11.
pulley to the left (See Fig. 7-9). Continue holding and
rotating the pulley and belt until the belt is fully rolled into
the PTO pulley.

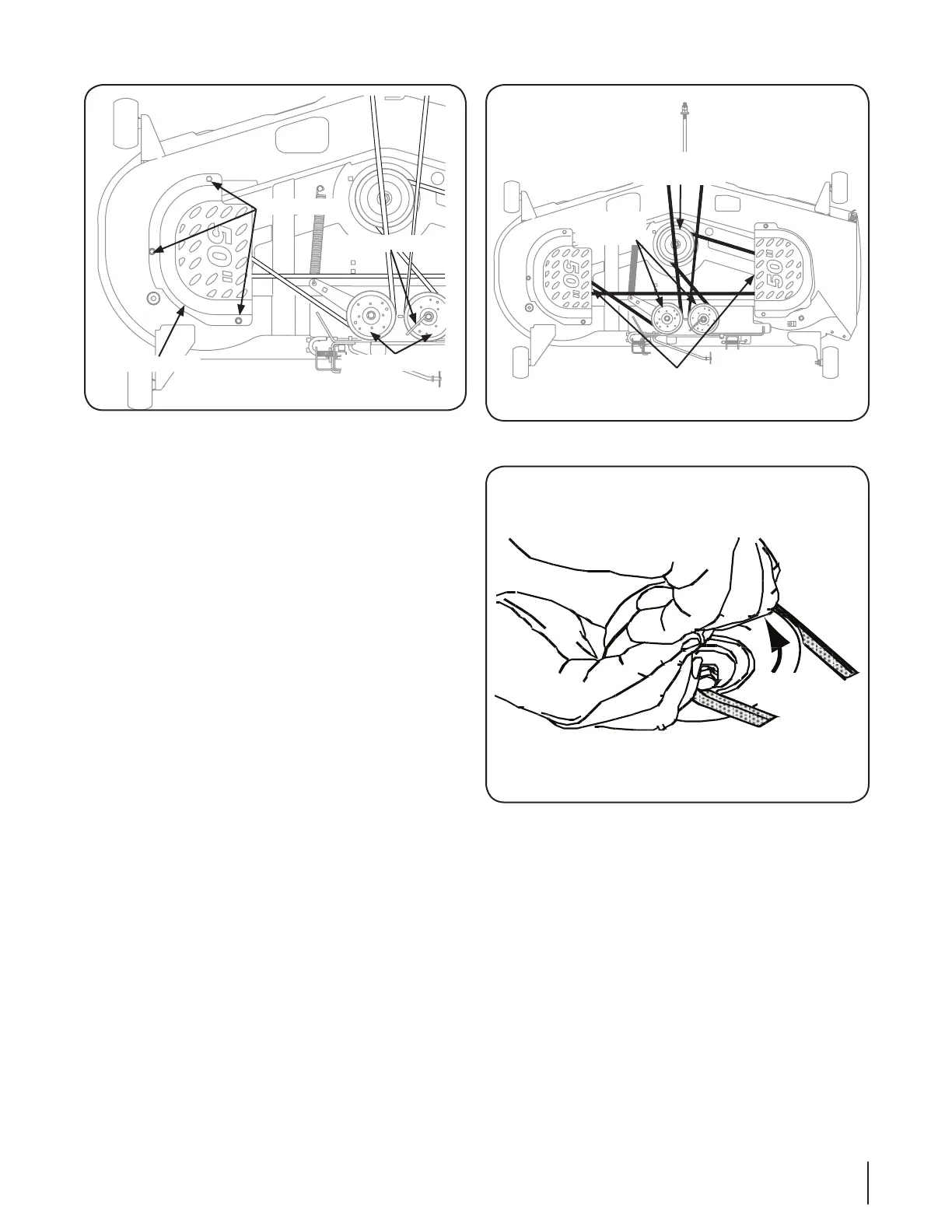

Belt Guards
Hex Screws
Belt Keeper Rod
Deck Idler Pulley
Figure 7-7
Outer Spindle
Pulleys
Front Spindle
Pulley
Deck Idler
Pulleys
Figure 7-8
Figure 7-9
27Se c t i o n 7 — Se r v i c e
