34
NOTE
If installing the deck on a new tractor, cut the
cable tie used to hold the front lift rod up during
shipment. Then proceed to step 8.

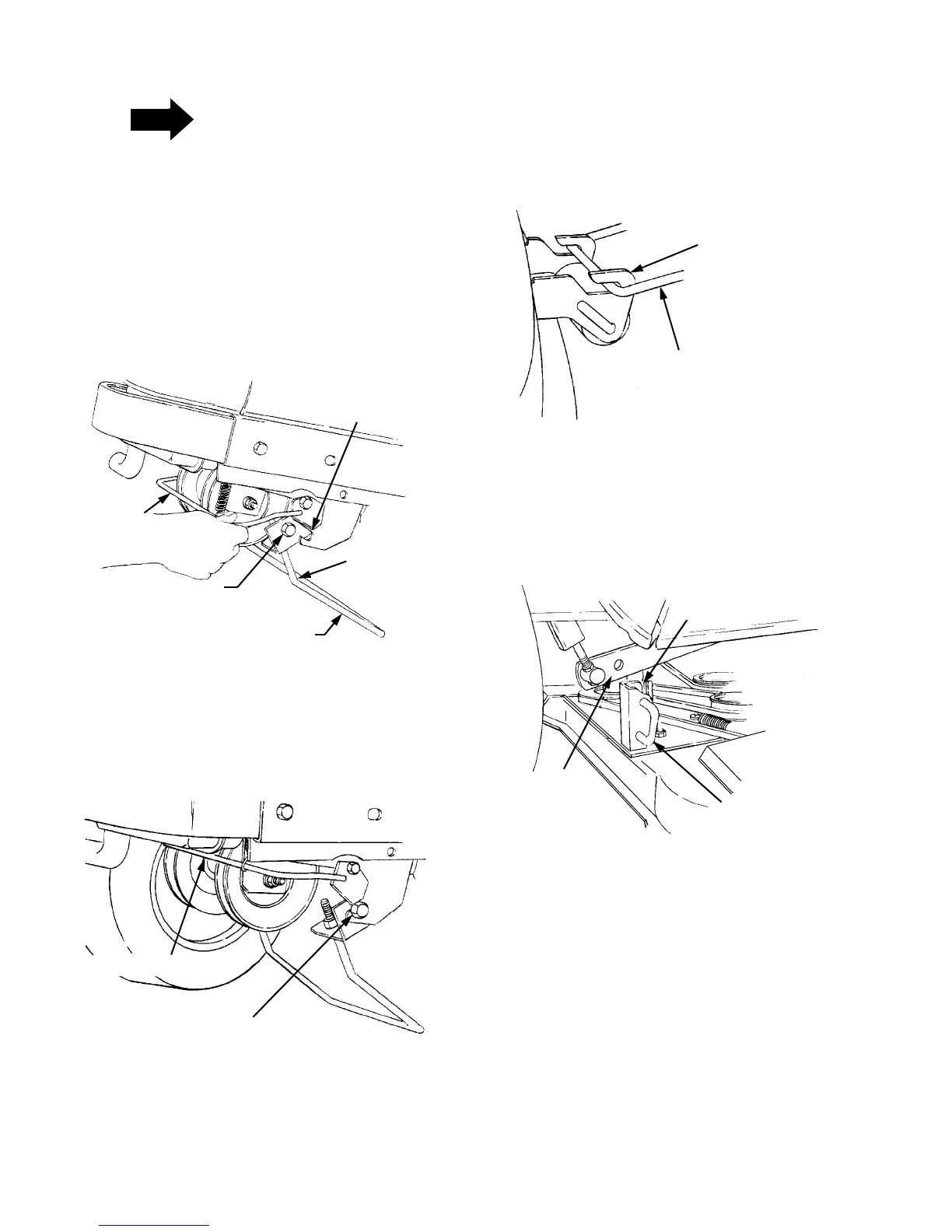

6. Refer to Figure 36 to ensure the correct orientation
of the front lift rod/bracket assembly [the form
(bend) in sides of rod point downward]. From the
front of the tractor, push downward and hold the
tractor quick-attach rod. Slide the shoulder bolts
on each side of the front lift rod/bracket assembly
fully into the left and right tractor latch receivers.
Figure 36
7. Release the tractor quick-attach rod to capture the
front lift rod/bracket assembly in the tractor latch
receivers (See Figure 37).
Figure 37
8. While holding the front lift rod up, slide the mower
deck forward until the rod aligns with both front
roller bracket slots. Lower the lift rod into the front
roller bracket slots and slide the deck rearward to
engage the lift rod fully forward in the slots of the
deck front roller bracket (See Figure 38).
Figure 38
9. If not already done, pull the deck support pins
outward, turn downward and release so both
spring-loaded pins are held in the disengaged
position against the outer surface of the deck
brackets (See Figure 39).
Figure 39
10. Carefully guide the tractor implement lift links (left
and right) into the rear deck bracket slots (left and
right) as the tractor implement lift handle is
lowered to its lowest setting (Refer to Figure 40).
11. Pull both deck support pins outward and rotate
rearward to disengage the outer surface of the
rear deck brackets. Release the pins, making
certain each deck support pin passes through the
inner hole of the rear deck bracket. The spring
tension will push the pins inward and, if aligned,
through the hole in each implement lift link (Refer
to Figure 40).
QUICK
ATTACH
ROD
SHOULDER BOLT
(BOTH SIDES)
FRONT LIFT
ROD/BRACKET
ASSEMBLY
TRACTOR
LATCH RECEIVER
(BOTH SIDES)
FORM
CAPTURED LIFT ROD/
BRACKET ASSEMBLY
QUICK ATTACH ROD
FRONT
LIFT ROD
FRONT ROLLER
BRACKET
REAR DECK
BRACKET SLOTS
DECK SUPPORT
PIN DISENGAGED
IMPLEMENT
LIFT LINKS
