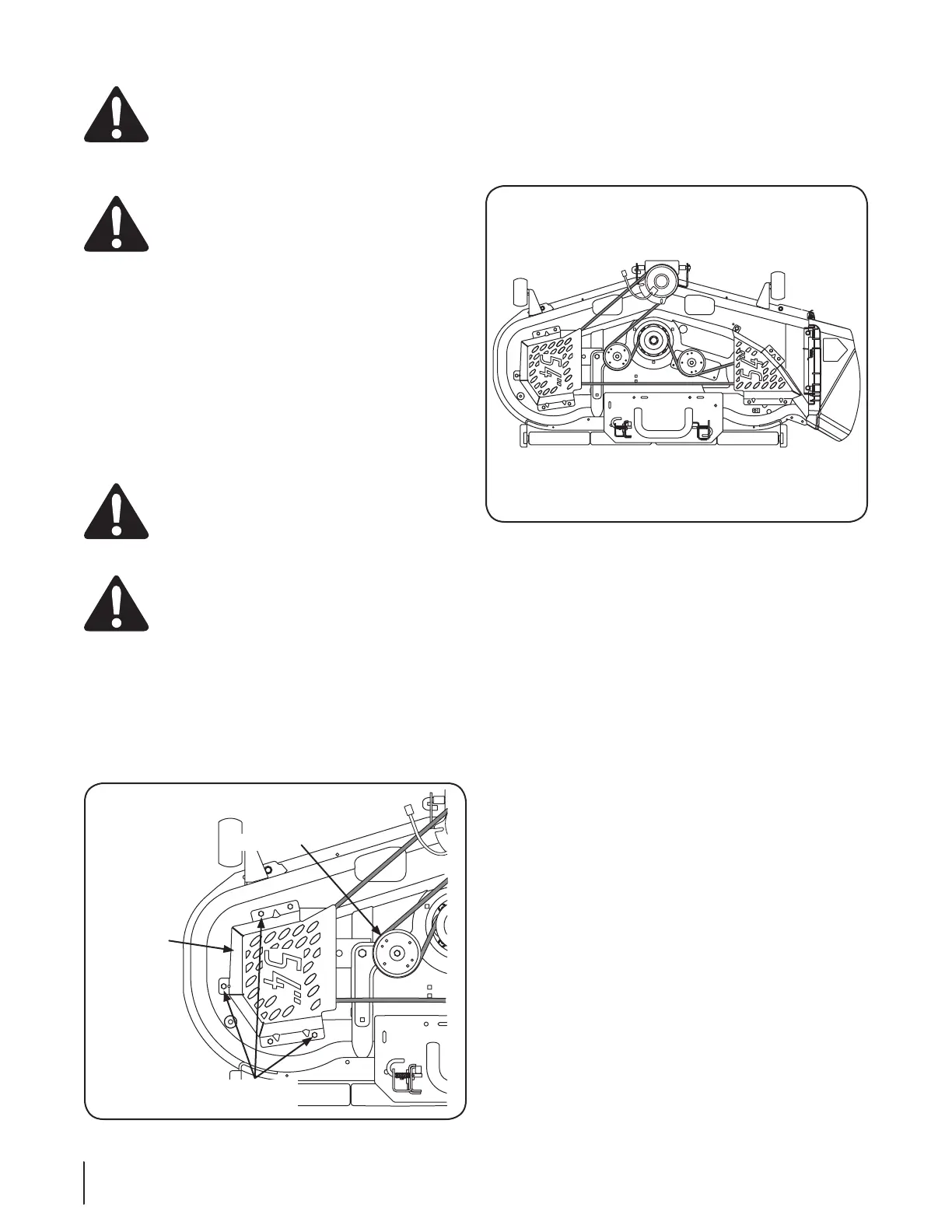

Figure 7-8
CAUTION: Always use a replacement fuse with the
same amperage capacity as the blown fuse.
Tires
WARNING! Never exceed the maximum inflation
pressure shown on the sidewall of the tire.
maximum psi. Do not overinflate. Uneven tire pressure could
cause the cutting deck to mow unevenly.
Changing the Transmission Drive Belt
Cub Cadet dealer to have the transmission drive belt replaced.
Changing the Deck Belt
WARNING!
ignition key before removing the cutting blade(s) for
using heavy gloves when grasping blades and
pulleys.
WARNING! The V-belts found on your tractor are
specially designed to engage and disengage safely.
not disengaging completely. For a proper working
machine, use factory approved belts.
All belts on your tractor are subject to wear and should be
replaced if any signs of wear are present . To change or replace
the deck belt on your tractor, proceed as follows:
Remove the deck as instructed in the Cutting Deck section.
Remove the belt guards by removing the hex washer 2.
Remove the deck belt from around the three spindle
pulleys and the two deck idler pulleys.
NOTE: The idler pulleys may have to be loosened, but not
removed, in order to remove the belt from around them.
Route the new belt as shown in Fig. 7-8.4.
Retighten idler pulleys, if loosened earlier.5.
Remount the belt guards removed earlier.6.
Belt Cover
Hex Washer
Screw
Idler Pulley
Figure 7-7
28 se c t i O n 7— se r v i c e
